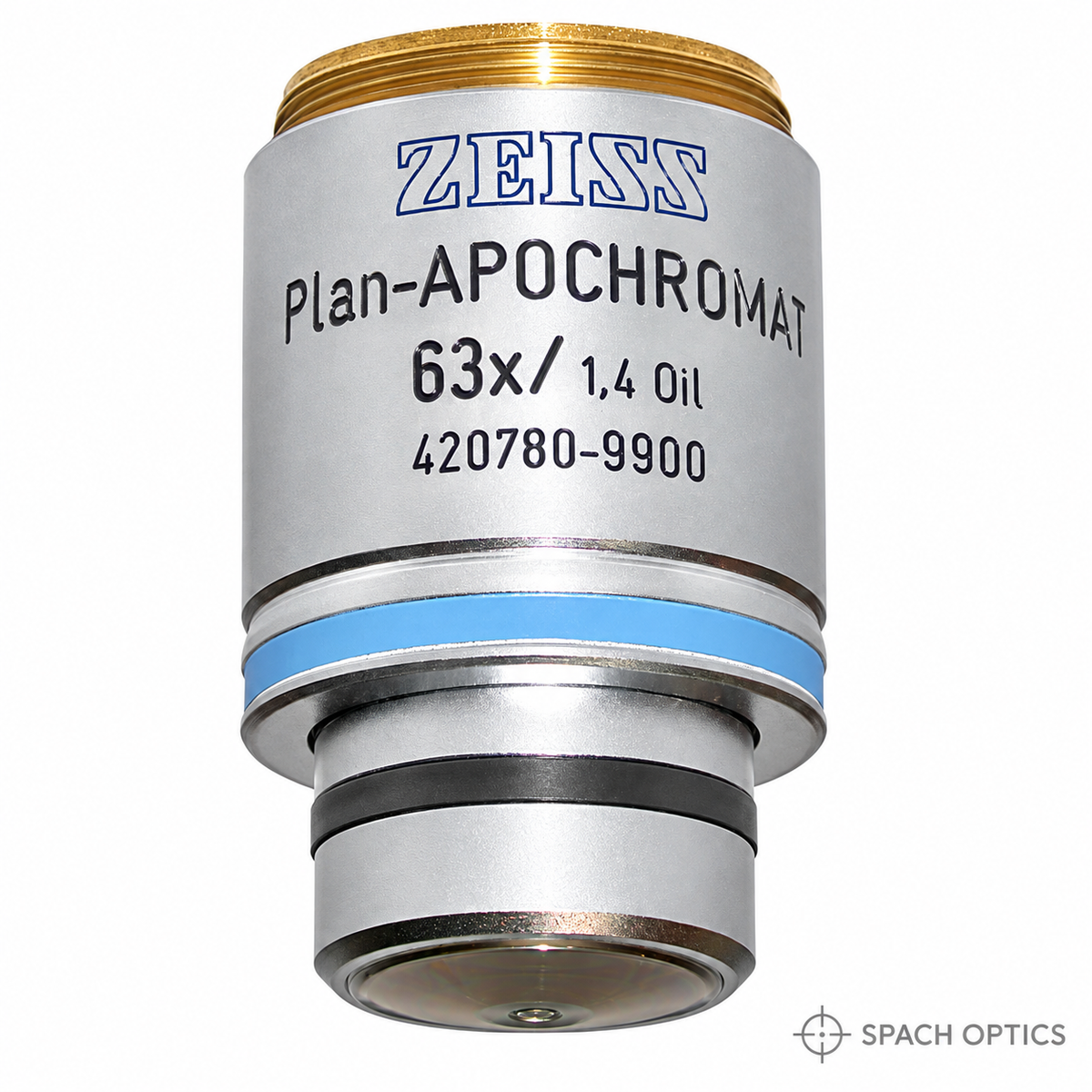

Zeiss Plan-Apochromat 63x/1.4 Oil Immersion Objective (NA 1.40, Infinity, M27)

In stock

SKU: 420780

Regular price $3,300.00
Sale price $3,300.00 Regular price $6,500.00 save $3,200.00
The Zeiss Plan-Apochromat 63×/1.4 Oil Immersion Objective is one of Zeiss’s most celebrated high-performance biological objectives — delivering NA 1.40 oil immersion with full plan apochromat correction in the M27 thread format for Zeiss Axio series microscopes. Offered here in lightly used condition with flawless optics at significant savings versus the new list price.

KEY FEATURES

  • NA 1.40 oil immersion — maximum numerical aperture for oil immersion objectives, delivering the highest resolution and fluorescence light collection for demanding confocal, TIRF, and super-resolution imaging
  • Plan apochromat correction — Zeiss’s highest level of chromatic and spherical aberration correction for accurate multi-channel fluorescence co-localization and brilliant flat-field imaging across the full visible spectrum
  • Maximum fluorescence light collection — NA 1.40 maximizes photon collection efficiency for single-molecule detection, TIRF, and low-signal fluorescence imaging at 63×
  • M27 thread mount — compatible with Zeiss Axio series microscopes including Axiovert, Axioplan, Axio Observer, Axio Imager, and Axio Examiner
  • 🇩🇪 Zeiss quality, made in Germany — precision optical construction for consistent, high-efficiency light transmission and long service life
  • Condition: Lightly used — flawless optics — catalog number 420780-9900
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Zeiss Plan-Apochromat 63×/1.4 Oil is one of the most widely used high-performance objectives in biological research — a benchmark objective for confocal, live-cell, and super-resolution microscopy. At 63× with NA 1.40, this objective provides the ideal combination of high magnification and maximum oil immersion NA for single-cell and subcellular imaging, delivering the resolution and fluorescence light collection required for the most demanding imaging applications. The plan apochromat correction ensures accurate chromatic registration across all fluorescence channels, essential for multi-color co-localization, FRET, and any imaging workflow where chromatic shift between channels would compromise data integrity. The 63× magnification is the preferred choice for many researchers on Zeiss systems, providing a slightly larger field of view at equivalent NA compared to 60× objectives. This unit is offered in lightly used condition with flawless optics — optically indistinguishable from new — at a significant discount to the new list price of $6,500. Note: this is the standard version without DIC capability (catalog 420780); the DIC version is catalog 420782. Compatible with Zeiss Axiovert, Axioplan, Axio Observer, Axio Imager, and Axio Examiner microscopes with M27 thread nosepieces. Catalog number 420780-9900.

Technical Specifications

Catalog Number 420780-9900
Magnification 63×
Numerical Aperture (NA) 1.40
Immersion Medium Oil
Working Distance 0.19mm
Optical Design Plan-Apochromat (no DIC)
Correction Infinity-corrected
Thread / Mount M27
Compatible Microscopes Zeiss Axiovert, Axioplan, Axio Observer, Axio Imager, Axio Examiner
Country of Origin Germany
Condition Lightly used — flawless optics
SKU 420780

Microscope Compatibility

Typical Applications

High-resolution confocal and multi-photon fluorescence microscopy at 63×
TIRF and single-molecule imaging requiring maximum NA
Super-resolution microscopy: PALM, STORM, STED, and SIM
Multi-channel fluorescence co-localization and FRET experiments
Subcellular imaging of organelles, protein localization, and membrane dynamics
Live-cell fluorescence imaging requiring maximum light collection efficiency
