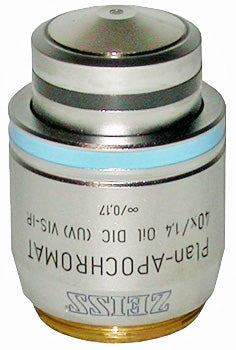

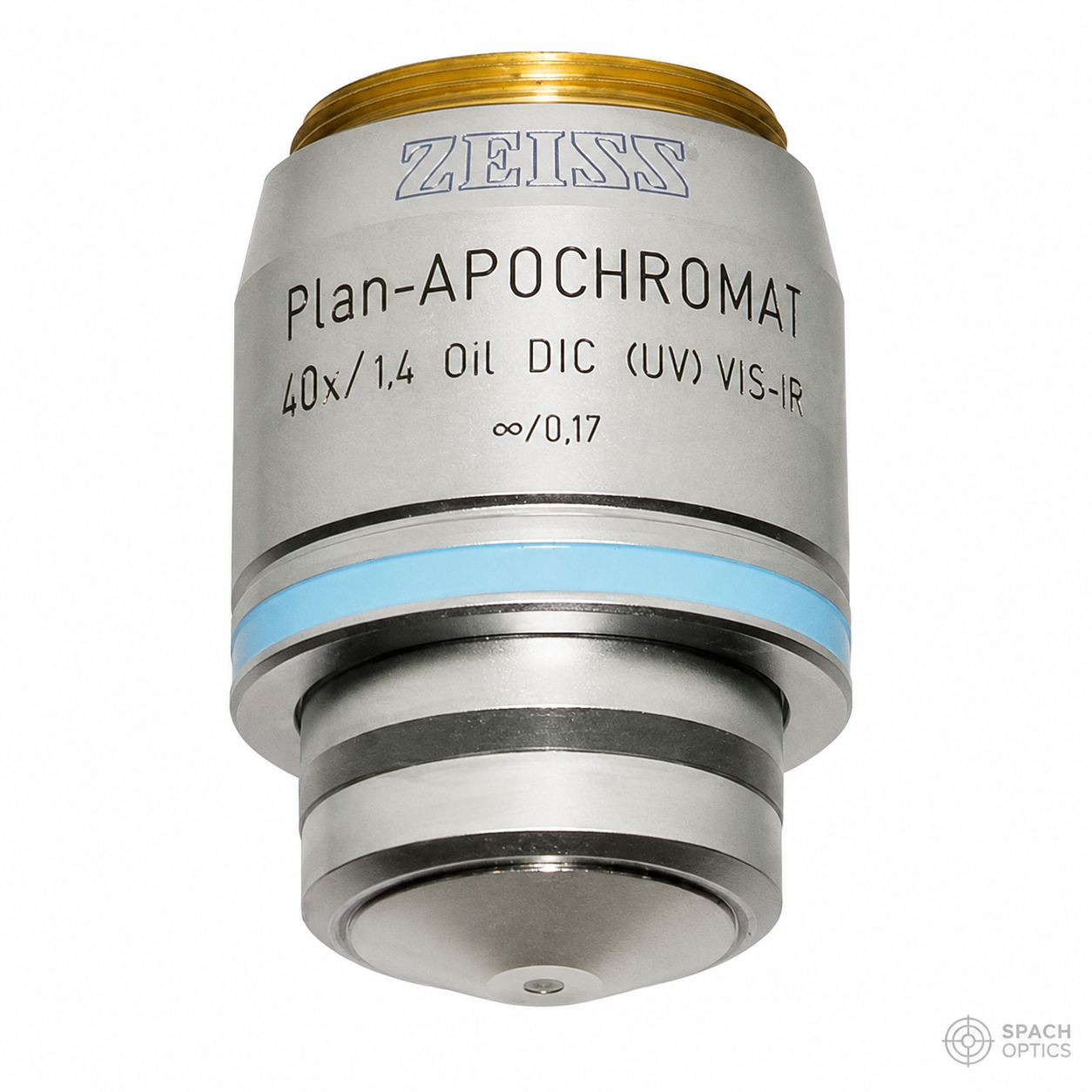

Zeiss Plan-Apochromat 40x/1.4 Oil DIC (UV) VIS-IR Objective (NA 1.40, Infinity)

In stock

SKU: 420762

Regular price $5,800.00
Sale price $5,800.00 Regular price $14,900.00 save $9,100.00
The Zeiss Plan-Apochromat 40×/1.4 Oil DIC M27 (UV) VIS-IR Objective is one of Zeiss’s flagship biological objectives — delivering NA 1.40 oil immersion with full plan apochromat correction across the UV, visible, and near-infrared spectrum, DIC capability, and M27 thread mount for Zeiss Axio series microscopes. Offered here in flawless, as-new condition at significant savings versus the new list price.

KEY FEATURES

  • NA 1.40 oil immersion — maximum numerical aperture for oil immersion objectives, delivering the highest resolution and fluorescence light collection available in the Zeiss biological lineup
  • Plan apochromat correction (UV) VIS-IR — full apochromat chromatic correction from UV through near-infrared, enabling accurate multi-channel fluorescence co-localization across the widest possible spectral range
  • DIC (Nomarski) compatible — optimized for differential interference contrast imaging in addition to fluorescence, brightfield, and phase contrast
  • M27 thread mount — compatible with Zeiss Axio series microscopes including Axiovert, Axioplan, Axio Observer, Axio Imager, and Axio Examiner
  • 🇩🇪 Zeiss quality, made in Germany — precision optical construction for consistent, high-efficiency light transmission and long service life
  • Condition: Flawless, as new — catalog number 420762
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Zeiss Plan-Apochromat 40×/1.4 Oil DIC is one of the most widely used high-performance objectives in biological research — combining NA 1.40 oil immersion with full plan apochromat correction across the UV, visible, and near-infrared spectrum. The (UV) VIS-IR designation indicates that this objective maintains apochromat-level chromatic correction from the UV (below 400nm) through the near-infrared (beyond 700nm), making it suitable for the widest range of fluorophores and imaging modalities including UV-excited dyes, visible fluorophores, and NIR probes in a single objective without chromatic compromise. At NA 1.40, this objective delivers the maximum resolution and fluorescence light collection available in oil immersion, making it the definitive choice for high-resolution confocal, TIRF, single-molecule, and super-resolution imaging. The DIC compatibility enables high-contrast transmitted light imaging of unstained specimens alongside fluorescence. This unit is offered in flawless, as-new condition — optically and mechanically indistinguishable from new — at a significant discount to the current new list price of $14,900. Compatible with Zeiss Axiovert, Axioplan, Axio Observer, Axio Imager, and Axio Examiner microscopes with M27 thread nosepieces. Catalog number 420762.

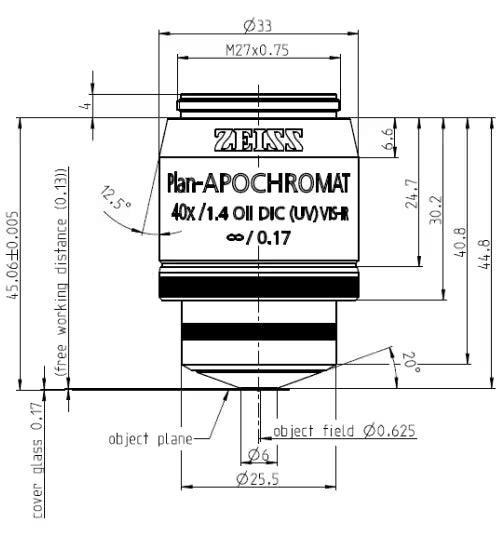

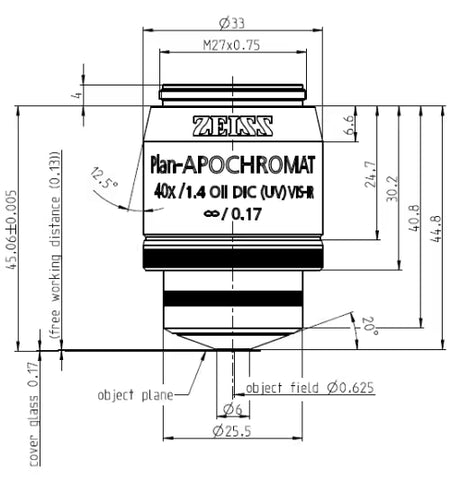

Technical Specifications

Catalog Number 420762
Magnification 40×
Numerical Aperture (NA) 1.40
Immersion Medium Oil
Working Distance 0.13mm
Optical Design Plan-Apochromat (UV) VIS-IR, DIC
Spectral Range UV through near-infrared
Correction Infinity-corrected
Thread / Mount M27
Compatible Microscopes Zeiss Axiovert, Axioplan, Axio Observer, Axio Imager, Axio Examiner
Country of Origin Germany
Condition Flawless, as new
SKU 420762

Microscope Compatibility

Typical Applications

High-resolution confocal and multi-photon fluorescence microscopy
TIRF and single-molecule imaging requiring maximum NA
Super-resolution microscopy: PALM, STORM, STED, and SIM
Multi-channel fluorescence co-localization across UV, visible, and NIR channels
DIC imaging of living cells and unstained specimens
Live-cell fluorescence imaging requiring maximum light collection efficiency
