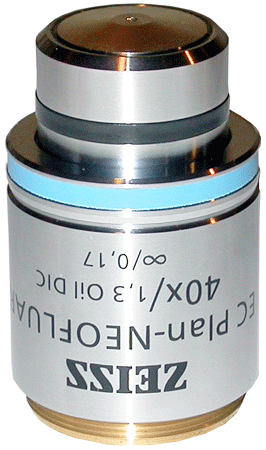

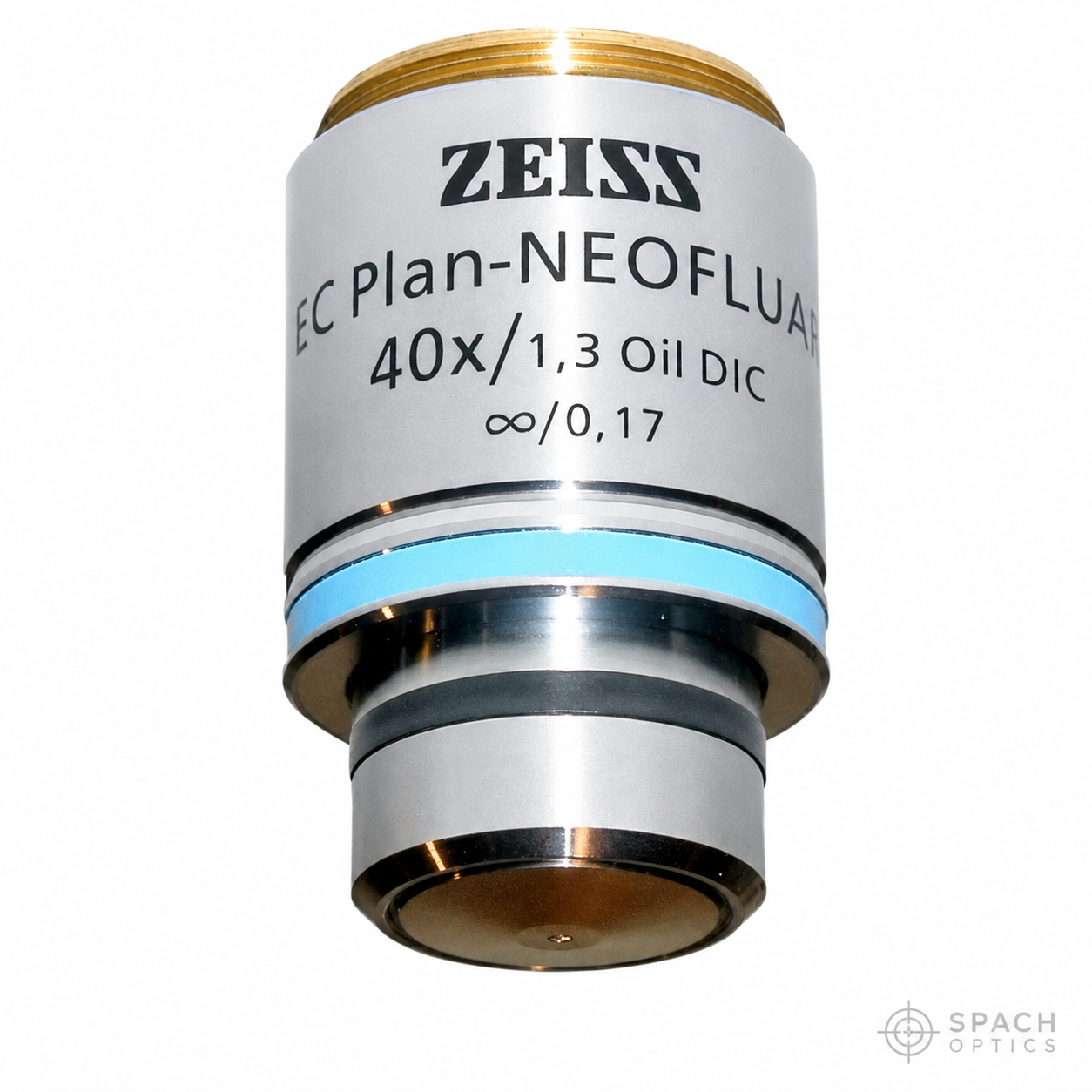

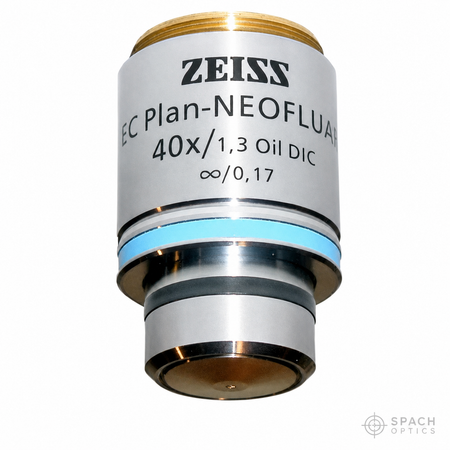

Zeiss EC Plan Neofluar 40x Oil Immersion DIC Objective

In stock

SKU: 420462

$4,500.00
$4,500.00 $7,627.00 save $3,127.00

KEY FEATURES

  • Zeiss EC Plan-Neofluar 40x/1.30 oil immersion objective with DIC capability
  • Enhanced Contrast (EC) design minimizes stray light for superior contrast across all techniques
  • NA 1.30 with 0.21mm working distance for exceptional resolution and light gathering
  • New condition, M27 thread — made in Germany to Zeiss EC Plan-Neofluar standards
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Zeiss EC Plan-Neofluar 40x/1.30 Oil DIC M27 (catalog number 420462-9900) is a high-performance infinity-corrected oil immersion objective engineered for maximum contrast across all major microscopy techniques. The EC (Enhanced Contrast) Plan-Neofluar design systematically minimizes stray light, delivering a visible increase in contrast that benefits brightfield, darkfield, phase contrast, DIC, fluorescence, and polarization applications. With a numerical aperture of 1.30 and a working distance of 0.21mm, it provides exceptional resolution and light-gathering capability for demanding biological and materials imaging.

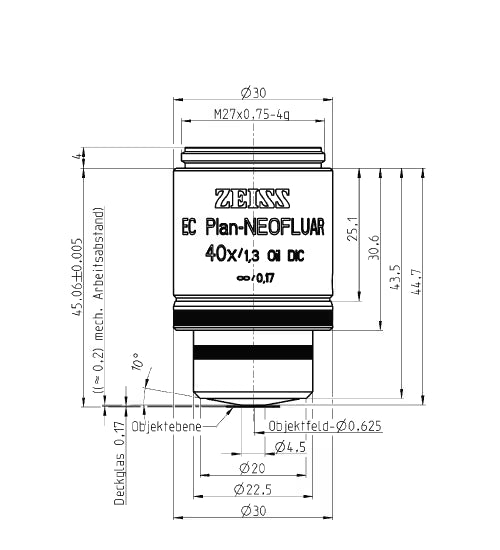

Technical Specifications

Catalog Number 420462-9900
Magnification 40x
Numerical Aperture (NA) 1.30
Immersion Medium Oil
Working Distance (WD) 0.21 mm
Objective Thread M27
DIC Capable Yes
Optical Design EC Plan-Neofluar (Enhanced Contrast)
Condition New

Microscope Compatibility

Zeiss Axio series microscopes (M27 thread)
All M27-threaded infinity-corrected microscope platforms

Typical Applications

DIC (Differential Interference Contrast) imaging of unstained biological specimens
High-resolution fluorescence microscopy
Brightfield, darkfield, and phase contrast microscopy
Live cell imaging and polarization microscopy
