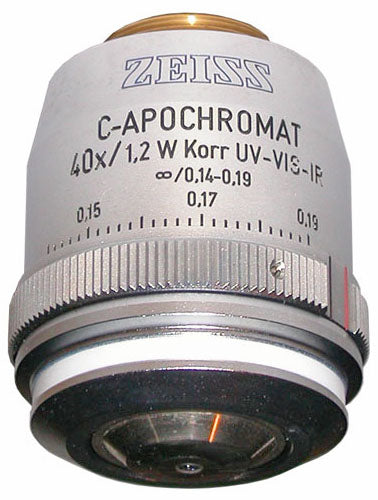

Zeiss C-Apochromat 40X UV-VIS-IR Water Immersion Objective

SKU: 441757

Regular price $6,950.00
Sale price $6,950.00 Regular price $14,834.00 save $7,884.00
Zeiss C-Apochromat 40x UV-VIS-IR water immersion objective, NA 1.20, adjustable correction collar; excellent condition, flawless optics.

KEY FEATURES

  • 40x magnification with 1.20 numerical aperture
  • Water immersion for biological and life-science imaging
  • UV-VIS-IR apochromatic correction
  • Approximately 0.28 mm working distance at 0.17 mm cover glass
  • Adjustable correction collar for 0.14–0.19 mm cover glass
  • Infinity color corrected system (ICS)
  • M27 mounting thread; RMS adapter available upon request
  • Approximately 25 mm field of view
  • Product number: 441757
  • Condition: Excellent, flawless optics
  • University and institutional purchase orders accepted
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Zeiss C-Apochromat 40x UV-VIS-IR water immersion objective provides 1.20 numerical aperture and apochromatic correction across ultraviolet, visible, and infrared wavelengths for biological, fluorescence, confocal, DIC, and live-cell imaging.
An adjustable correction collar accommodates 0.14–0.19 mm cover glass. Working distance is approximately 0.28 mm at 0.17 mm cover glass. The objective uses ICS optics and an M27 mounting thread; an RMS adapter is available upon request.
Product number: 441757. Condition: Excellent, flawless optics. University and institutional purchase orders accepted.

Technical Specifications

Manufacturer Zeiss
Objective designation C-Apochromat UV-VIS-IR
Magnification 40x
Numerical aperture 1.20
Immersion medium Water
Working distance Approximately 0.28 mm at 0.17 mm cover glass
Correction collar 0.14–0.19 mm cover glass thickness
Optical system Infinity color corrected system (ICS)
Color correction UV-VIS-IR apochromatic
Mounting thread M27; RMS adapter available upon request
Field of view Approximately 25 mm
Product number 441757
Condition Excellent, flawless optics

Microscope Compatibility

Infinity color corrected system (ICS)
M27 mounting thread
RMS adapter available upon request; confirm optical and mechanical compatibility
Cover glass thickness 0.14–0.19 mm with correction collar adjustment

Typical Applications

Biological and life-science imaging
Fluorescence microscopy
Confocal microscopy
Differential interference contrast (DIC) microscopy
Live-cell microscopy
