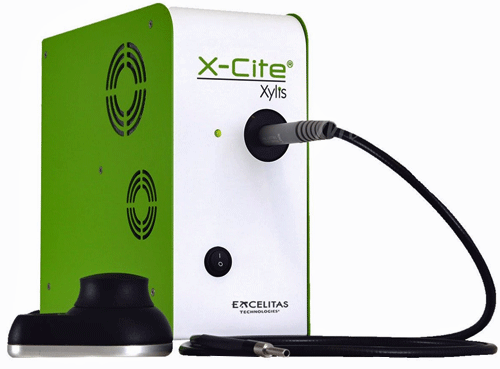

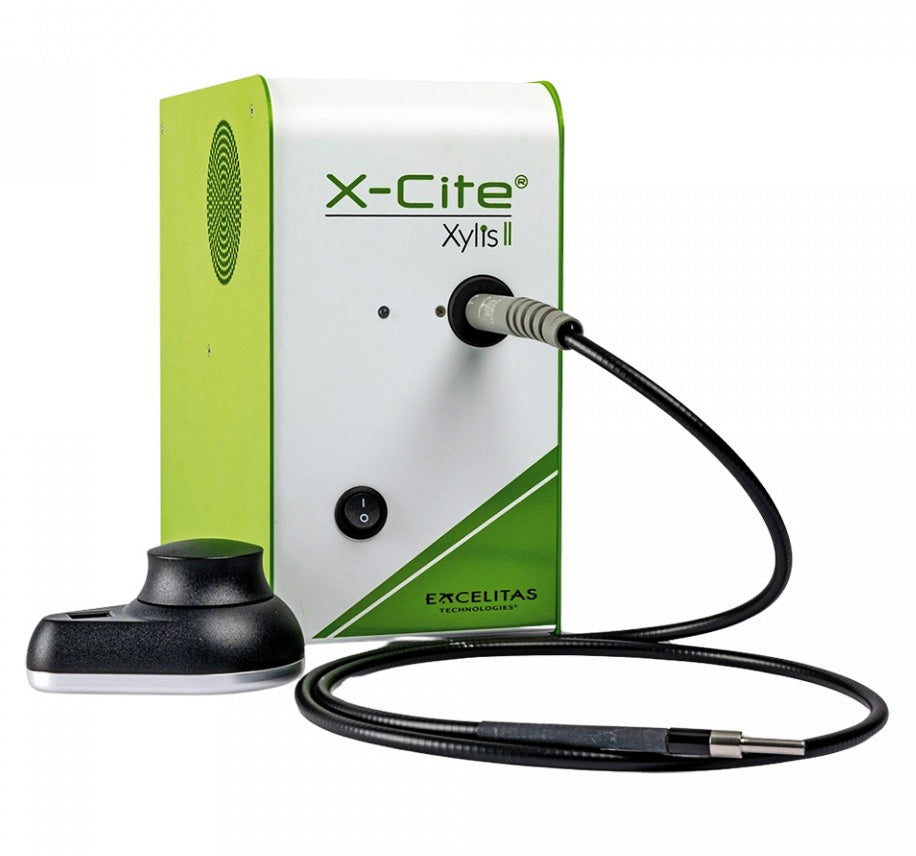

X-Cite XYLIS II LED Fluorescence Light Source for Microscopy
Regular price
$8,560.00
X-Cite XYLIS LED Fluorescence Light Source for Microscopy
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Wavelength Range | 360-770 nm (XT720S) |
| Wavelength Range | 380-770 nm (XT720L) |
| LED Peaks (nm) | 365, 430, 475, 545, 635, 735 (XT720S) |
| LED Peaks (nm) | 385, 430, 475, 545, 635, 735 (XT720L) |
| Input Power Supply | Universal input 100-240 VAC, 50/60 Hz |
| Current | 3.9-1.6A |
| LED ON/OFF Response Times | 100 μs TTL / 1 ms USB |
| Control Options | speedDIAL ON/OFF - TTL compatible RS-232 commands (SDK available), USB Foot Pedal (optional) |
| I/O Connections | BNC input USB (B-type) 3.5 mm stereo plug |
| Dimensions (W x H x D) | 120 mm x 260 mm x 260 mm (4.7" x 10.3" x 10.3") |
| Weight | 6.3 kg (13.9 lbs) |
| Certifications | CE, RoHS |
| Warranty | LEDs – 25,000 hours or 3 years All other X-Cite XYLIS components - 1 year, parts and labor (excluding LLG) |
| Patents | X-Cite XYLIS incorporates technology protected by patent US#9,239,133 |
