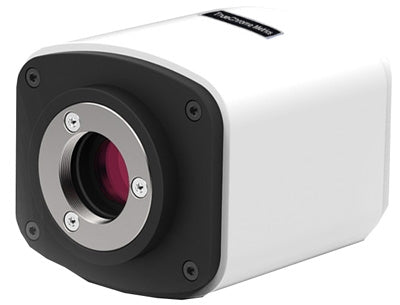

Tucsen TrueChrome PDAF Autofocus HDMI Microscope Camera
Regular price
$1,240.00
Tucsen TrueChrome PDAF — 6MP Autofocus HDMI Microscope Camera | Sony IMX586 | 50 fps | Standalone | C-Mount
KEY FEATURES
- PDAF phase detection autofocus for fast, accurate focusing during live microscope use — no manual adjustment needed
- Standalone HDMI operation — connect directly to a monitor with mouse and SD card, no PC required
- Sony IMX586 color CMOS sensor — 6MP (3264 × 1836) capture at 1.6 µm pixel size
- 50 fps smooth live preview via both HDMI and USB2.0
- Onboard measurement tools in HDMI mode — lines, shapes, angles, and multiple unit options
- USB2.0 + Mosaic V3 software for full PC-based capture, measurement, annotation, and DICOM/TIFF output
- Standard C-mount interface — compatible with stereo, biological, metallurgical, and inspection microscopes
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Model | Tucsen TrueChrome PDAF |
| Autofocus | PDAF — Phase Detection Autofocus |
| Sensor | Sony IMX586 Color CMOS |
| Sensor Format | 1/2.8" |
| Sensor Diagonal | 5.95mm |
| Effective Area | 4.6mm × 2.6mm |
| Capture Resolution | 6MP — 3264 × 1836 |
| Pixel Size | 1.6 µm × 1.6 µm |
| HDMI Preview | 1920 × 1080 @ 50 fps |
| HDMI Capture | 3264 × 1836 |
| USB2.0 Preview | 50 fps |
| Video Recording | 1920 × 1080 @ 25 fps |
| Shutter | Rolling shutter |
| Exposure Time | 1ms – 5s |
| Color Temperature | 1800 – 10000K |
| Data Interfaces | HDMI, USB2.0, SD card |
| Software | HDMI Cloud (standalone), Mosaic V3 (USB/PC) |
| Image Formats | HDMI — JPG/TIF; USB — TIFF/JPG/PNG/DICOM |
| Multi-Camera SDK | Up to 4 cameras simultaneously |
| Optical Interface | Standard C-Mount |
| Power Consumption | 2.4W |
| Dimensions | 90.7mm × 78mm × 70.8mm |
| Weight | 452g |
| SKU | TC-PDAF |
| Country of Origin | China |
Microscope Compatibility
| Any stereo microscope with a C-mount trinocular port | |
| Any trinocular biological, metallurgical, or polarizing microscope with C-mount port | |
| Olympus, Nikon, Zeiss, Leica stereo and compound microscopes (via appropriate C-mount adapter) | |
| Any HDMI monitor for standalone operation | |
| Windows 7/8/10/11 64-bit (USB/Mosaic V3 mode) | |
| Linux and Mac (USB/Mosaic V3 mode) | |
| Tucsen Mosaic V3 software (USB PC mode) |
Typical Applications
Stereo microscope live imaging and inspection
Educational microscopy and classroom demonstrations
Industrial inspection and quality control
Electronics and PCB inspection and assembly
Metallographic and polarizing microscopy
Biological microscopy documentation
Fast image capture, measurement, and report generation
