Tucsen TrueChrome 4K WIFI HDMI USB3 Microscope Camera - SONY IMX485
Regular price
$1,525.00
Sale price
$1,525.00
Regular price
$1,950.00
save $425.00

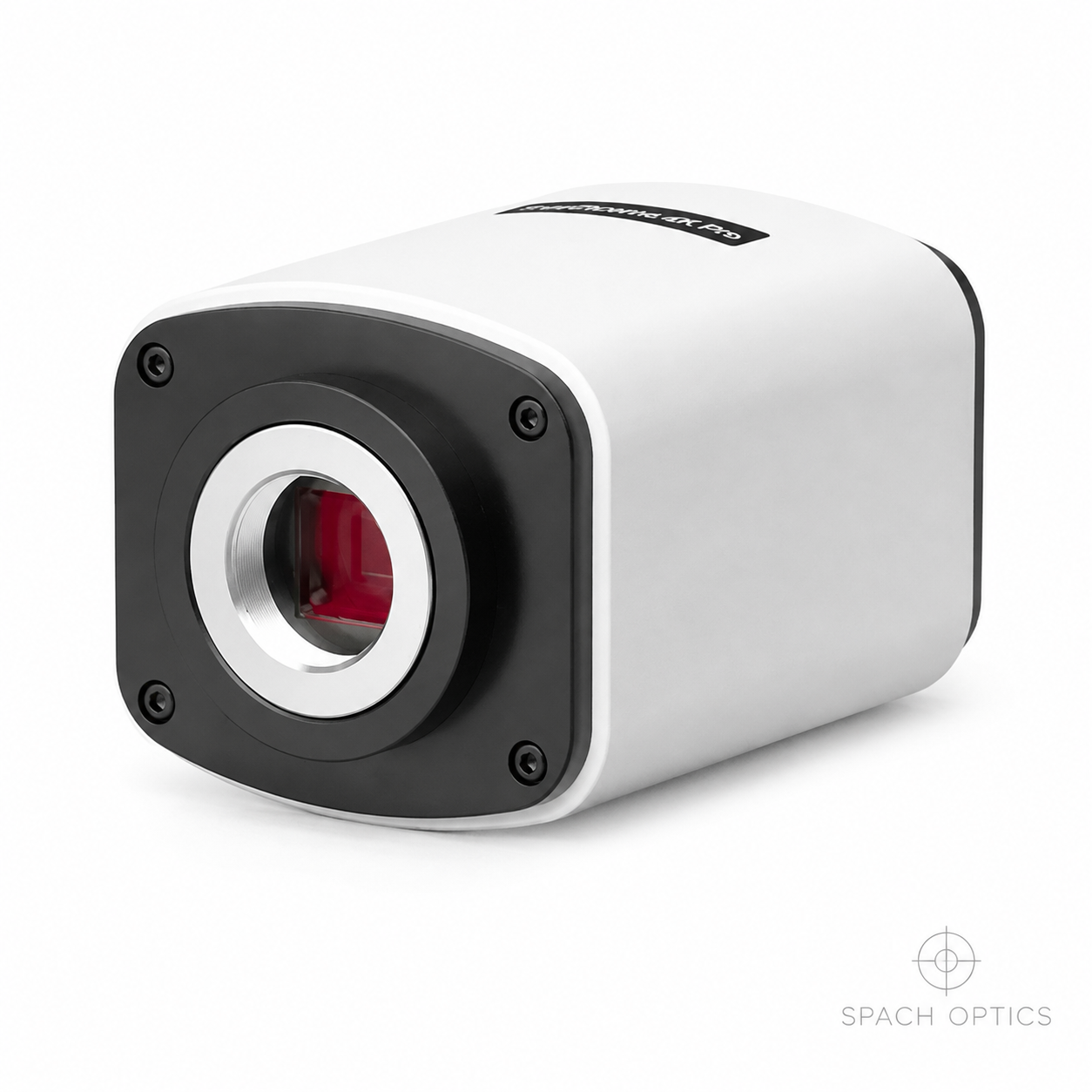

Tucsen TrueChrome 4K WIFI HDMI USB3 Microscope Camera
KEY FEATURES
- 4K UHD HDMI Output – 3840×2160 live imaging at 30 fps without a PC
- Sony IMX485 CMOS Sensor – 8MP, 1/1.2" format, 2.9 µm pixels
- Multi-Interface Connectivity – HDMI, USB3.0, LAN, and Wi-Fi in one camera
- Standalone HDMI Operation – Monitor, mouse, and storage only — no computer needed
- Tucsen Mosaic Software Compatible – Advanced capture, stitching, EDF, and measurement
- Standard C-Mount Interface – Compatible with stereo and biological microscopes
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Sensor | Sony IMX485 CMOS, Color |
| Resolution | 8 MP — 3840(H) × 2160(V) |
| Sensor Format | 1/1.2" (13.33 mm diagonal) |
| Pixel Size | 2.9 µm × 2.9 µm |
| Frame Rate | 30 fps @ HDMI / USB3.0 / LAN |
| Shutter | Rolling shutter |
| Exposure Time | 1 µs – 1 s |
| Color Temperature | 1800–10000K |
| Interfaces | HDMI, USB3.0, USB2.0, LAN, Wi-Fi |
| Optical Interface | Standard C-mount |
| Image Formats | TIFF, JPG, PNG, DICOM |
| Power Consumption | 2.4 W |
| Dimensions | 105.7 mm × 78 mm × 70.8 mm |
| Weight | 505 g |
Microscope Compatibility
| Interface | Standard C-mount (adapters available for most microscope ports) |
| Software | Tucsen Mosaic V2, Mosaic V3, Mosaic App, HDMI Cloud |
| OS | Windows (USB3.0/LAN); standalone HDMI operation (no PC required) |
| Compatible with stereo, biological, pathology, and industrial microscopes |
Typical Applications
Stereo microscope imaging and industrial inspection
Electronics and PCB inspection and assembly documentation
Educational microscopy and classroom demonstration systems
Clinical microscopy, pathology documentation, and telepathology
Manufacturing, metrology, and quality control imaging
Remote microscopy and collaborative imaging workflows
