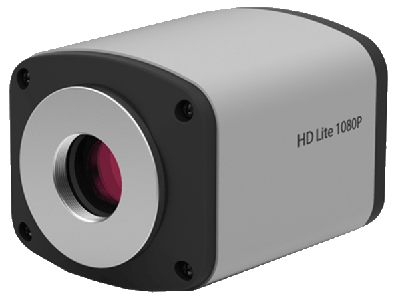

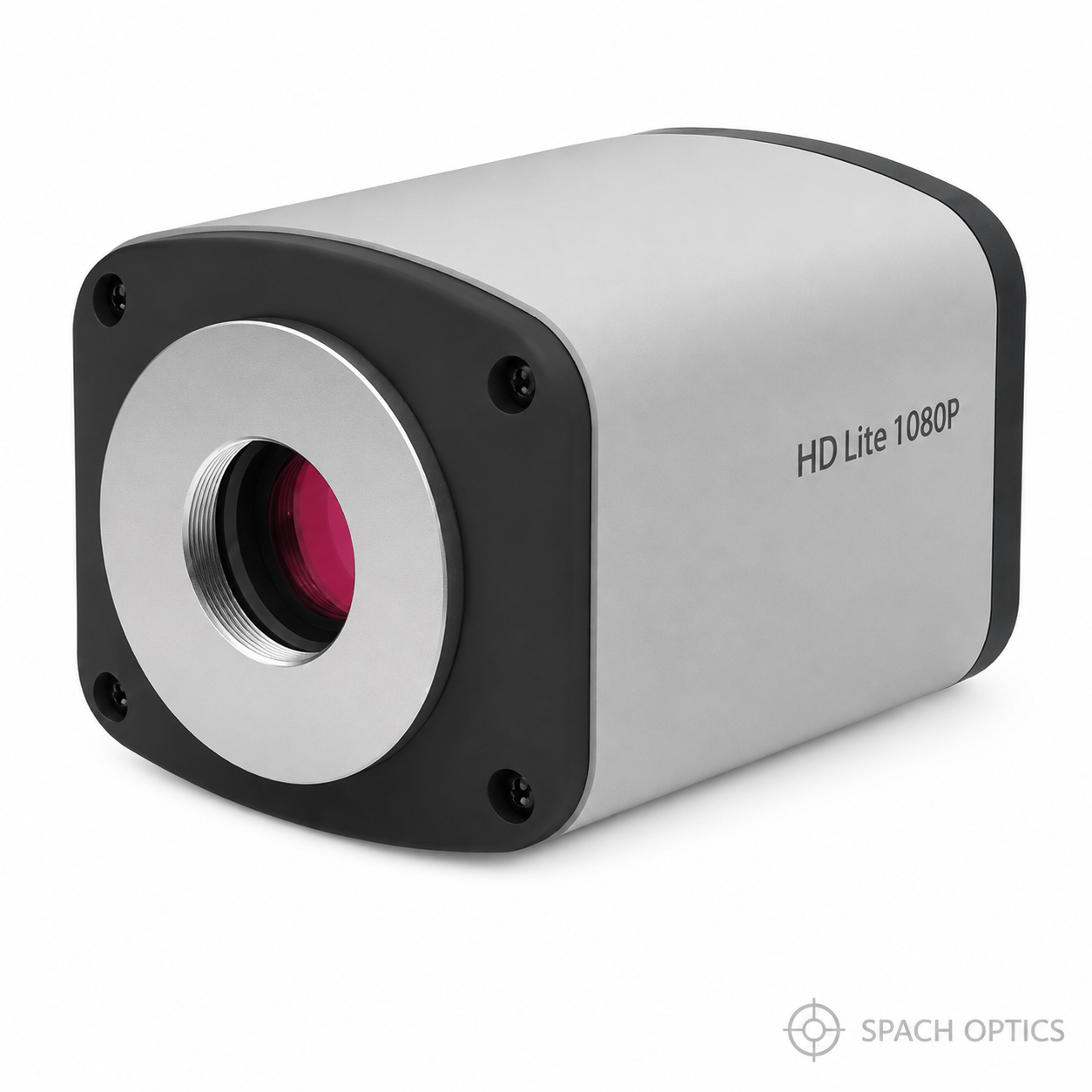

Tucsen HD Lite 5MP Color CMOS USB 2.0 Digital Camera

In stock

SKU: HD-LITE

$650.00
$650.00 $1,095.00 save $445.00
Tucsen HD Lite 5MP Color CMOS Camera — standalone operation with embedded mouse-controlled software, HDMI output, SD card storage, USB2.0, C-mount. No PC required.

KEY FEATURES

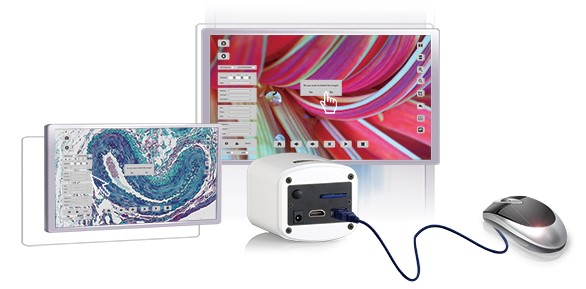

  • Embedded application software with built-in mouse control — fully standalone operation, no PC or software installation required

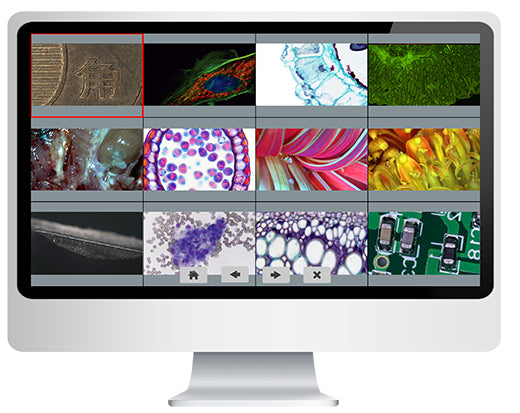

  • HDMI output — direct connection to any HDMI monitor or TV for live viewing
  • SD card storage — save images directly on-camera without a computer
  • Smart auto-optimization — automatic white balance, exposure, and saturation for brightfield and darkfield imaging
  • Minimal interface — two-icon embedded UI as intuitive as a smartphone
  • 5MP color CMOS sensor — 2592 × 1944 resolution, 1/2.5" format, 2.8 × 2.8 μm pixels
  • USB2.0 connectivity with Mosaic V2.1 PC software (Windows 7/8/10 and Mac)
  • TIFF, JPG, PNG, and DICOM image output formats
  • Standard C-mount — compatible with all major microscope brands
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Tucsen HD Lite is a 5 megapixel (2592 × 1944) color CMOS microscopy camera with embedded application software for fully standalone operation via mouse — no PC required. Features HDMI output for direct monitor connection, SD card storage, and automatic image optimization (white balance, exposure, saturation). Also connects via USB2.0 with Mosaic V2.1 PC software (Windows 7/8/10 and Mac). Standard C-mount compatible with all major microscope brands. Image formats: TIFF, JPG, PNG, DICOM. Ideal for teaching, clinical, and field applications where simplicity and portability are priorities.

Technical Specifications

Sensor Type CMOS (color, rolling shutter)
Sensor Size 1/2.5"
Resolution 5MP (2592 × 1944)
Pixel Size 2.8 × 2.8 μm
Frame Rate 15 fps (USB2.0); 15 fps (HDMI)
Shutter Mode Rolling shutter
Exposure Mode Auto / Manual
Data Interface USB2.0, HDMI, SD card
Optical Interface Standard C-mount
Image Formats TIFF, JPG, PNG, DICOM
PC Software Mosaic V2.1 (included)
OS Compatibility Windows 7/8/10; Mac
Embedded Software Yes — mouse-controlled, no PC required
Dimensions 90.7 × 74.5 × 67.2 mm
Mass 272 g
SKU HD-LITE
Country of Origin China

Microscope Compatibility

Standard C-mount — compatible with all major microscope brands
HDMI monitors and TVs
SD cards (on-camera storage)
USB2.0
Windows 7, 8, 10
Mac OS
Mosaic V2.1 PC software (included)

Typical Applications

Brightfield biological microscopy imaging and documentation
Darkfield and birefringent crystal imaging
Teaching and demonstration — direct HDMI display without a PC
Clinical and laboratory settings requiring simple, standalone camera operation
Industrial inspection and quality control imaging
Gemology and materials inspection
