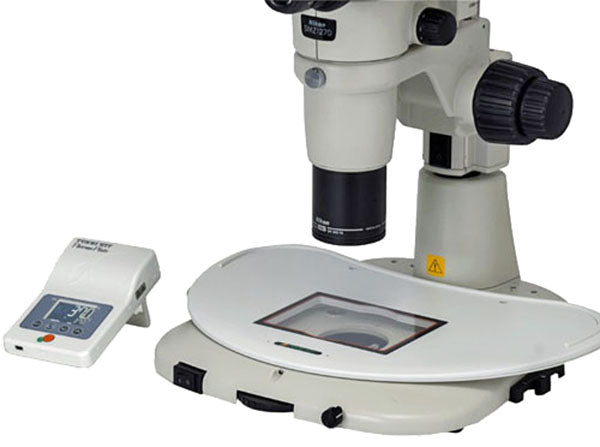

Tokai Hit TPiD-SMZ25DX Thermal Plate
Tokai Hit TPiD-SMZ25DX Thermal Plate

TOKAI HIT TPiD-SMZ25DX THERMAL PLATE

In stock

SKU: TPiD-SMZ25DX

$3,900.00
PB/DBL/DBF, P-DSL32/DSF32 Transmitted light bases Tokia-Hit ThermoPlates ensure more accurate and more reliable thermal control of the specimens during the observation under a microscope. The temperature distribution over the plate is very even. Wide product range supports time-lapse imaging, IVF field, biotechnology science and industry.

KEY FEATURES

  • The Thermoplate utilizes a special transparent heating material coated onto a hard glass.
  • The TPi series themoplates now come with a 10 year free-repair service for glass breakage
  • Plate LED Indicator -- Green LED lights up when the glass heater is ready
  • No problem with contrast in Phase Contrast or DIC observation
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

Controller

・Controller is now smaller and lighter. It is only 85mm wide x 135mm deep x 30mm height.
・Temp Calibration is done with one touch of the calibration button
・The multifunctional system supports accurate temperature regulation in various fields
・Sterilized sensor can measure （external） the actual sample temperature. Also, it enables on-site calibration to provide optimal temperature setting at your laboratory.
・Monitors, records and logs sample or plate temperature which the sensor measures.
・Saves data in CSV format which can be used in spreadsheets.
・Stable imaging, effective for high magnification
・In addition to PID control, TPX features Continuous Current Control, minimizing focus drift generated by heat compared to the standard On-Off control method. Especially effective for observation when high magnification is required.

Included Components

・Heating Plate
・TPi Controller
・Mounting Hook
・Power Code
・AC Adapter
・Temperature Sensor
・Extension Wire
・TEM Install CD & USB Cable

Supported Bases

・Nikon P2-DBL Transmitted Light Base for Stereo Microscopes
・Nikon P2-DBF Transmitted Light Base for Stereo Microscopes
・Nikon P2-PB Transmitted Light Base for Stereo Microscopes
・Nikon P-DSL32 Transmitted Light Base for Stereo Microscopes
・Nikon P-PS322 Transmitted Light Base for Stereo Microscopes
・Nikon P-DSF32 Transmitted Light Base for Stereo Microscopes

Technical Specifications

Temperature range ambient – 50℃
Plate dimension W370 × D248mm
Heating area W128 × D95mm
Glass thickness 0.5mm
