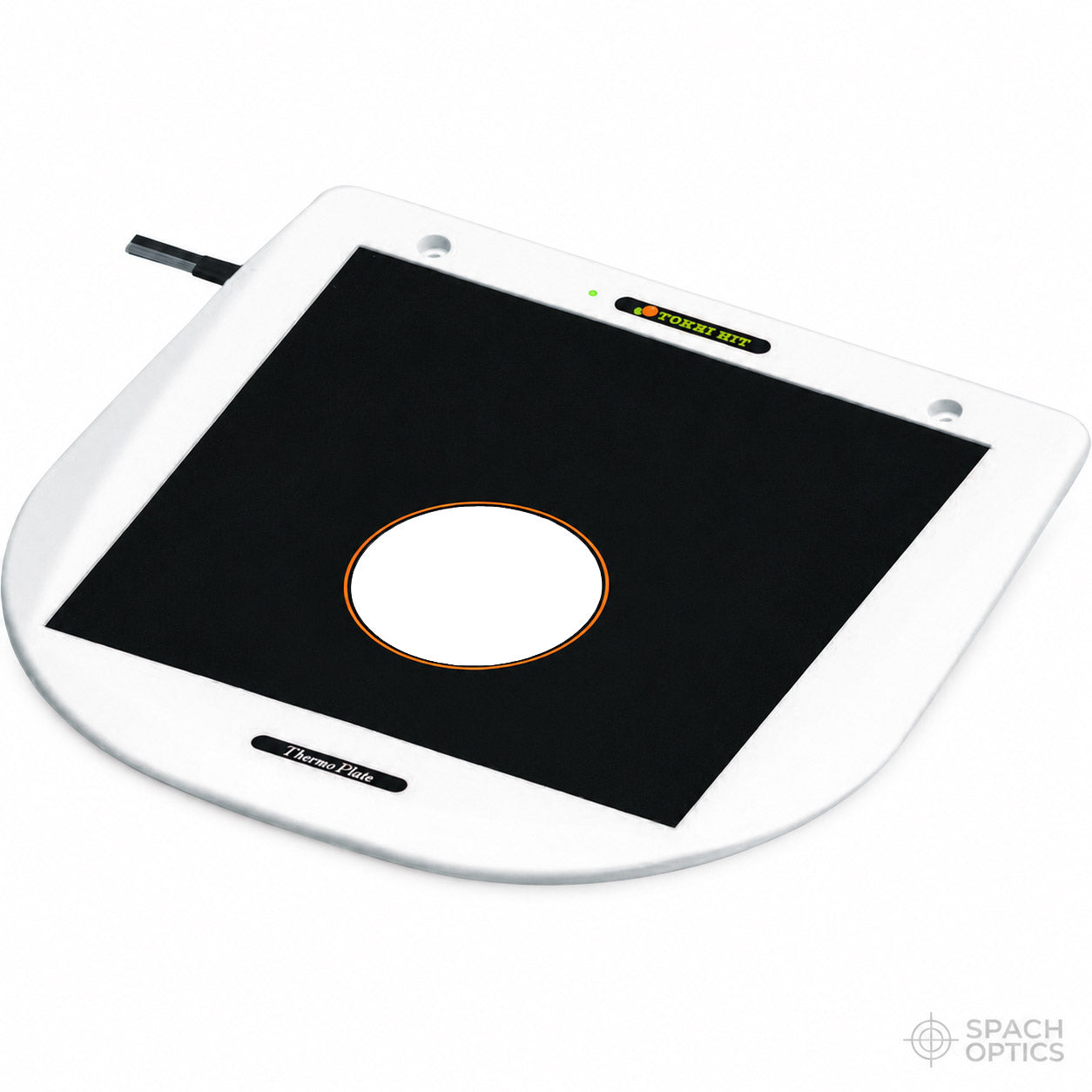

Tokai-Hit TPi-SMZ25X Thermal Plate for Nikon Bases

In stock

SKU: TPi-SMZ25X

$3,450.00
Tokai Hit TPi-SMZ25X Warming Stage — 160×150mm Heating Area | Nikon P2-PB/DBC/DBF-PS32/DSL32/DSF32 Bases | RT–50°C | PID + CSV Logging

KEY FEATURES

  • Large 160 × 150mm heating area with even temperature distribution — accommodates larger culture dishes and multi-well plates
  • Transparent 1.0mm glass heater — no contrast loss in phase contrast or polarization imaging
  • PID + Continuous Current Control minimizes thermally-induced focus drift for stable high-magnification and time-lapse imaging
  • External sterilized temperature sensor for direct sample measurement and on-site calibration
  • Temperature logging with CSV export via TEM software
  • 10-year free glass breakage repair service included with TPi series thermoplates
  • Compact TPi controller (85 × 135 × 30mm) with one-touch temperature calibration
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Tokai Hit TPi-SMZ25X is a warming stage (thermoplate) for Nikon stereo microscope transmitted light bases (P2-PB, DBC, DBF-PS32, P-D-DSL32, DSF32). Features a large 160 × 150mm heating area with 1.0mm transparent glass heater for even thermal distribution from room temperature to 50°C — no phase contrast or polarization contrast loss. TPi controller with PID + Continuous Current Control minimizes focus drift. External sterilized sensor for direct sample temperature measurement and on-site calibration. CSV temperature logging. 10-year free glass breakage repair. SKU: TPi-SMZ25X.

Technical Specifications

Model TPi-SMZ25X
Temperature Range Room temperature – 50°C
Plate Dimensions 251mm (W) × 238mm (L) × 7mm (H)
Heating Area 160mm × 150mm
Glass Thickness 1.0mm
Controller Dimensions 85mm (W) × 135mm (D) × 30mm (H)
Control Method PID + Continuous Current Control
Temperature Logging Yes — CSV export via TEM software
Glass Breakage Warranty 10-year free-repair service
SKU TPi-SMZ25X

Microscope Compatibility

Nikon P2-PB Transmitted Light Base for stereo microscopes
Nikon DBC Transmitted Light Base for stereo microscopes
Nikon DBF-PS32 Transmitted Light Base for stereo microscopes
Nikon P-D-DSL32 Transmitted Light Base for stereo microscopes
Nikon DSF32 Transmitted Light Base for stereo microscopes

Typical Applications

Live cell imaging on stereo microscopes at controlled temperatures
Time-lapse imaging of developing organisms (zebrafish, Drosophila, C. elegans)
IVF and assisted reproductive technology (ART) embryo observation
Stem cell culture monitoring and maintenance of physiological temperature
Biotechnology and life science research requiring thermal stage control
Neuroscience — brain slice preparation and acute slice imaging
