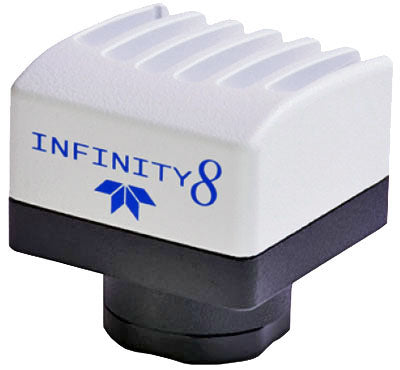

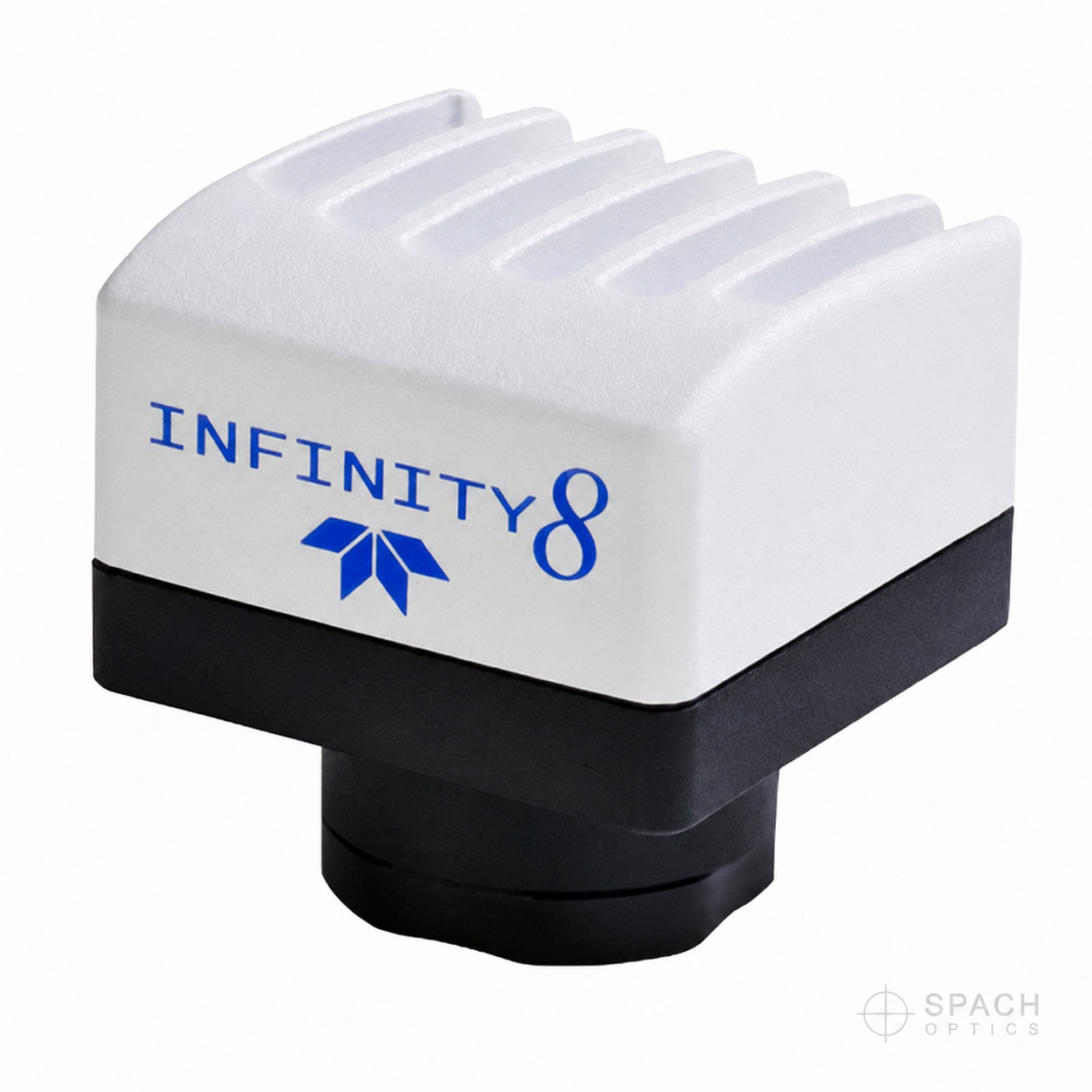

Teledyne Lumenera INFINITY8-8M Monochrome USB 3.0 Microscope Camera

Key Features

• 8.3 MP Monochrome Scientific Camera – High-resolution imaging for laboratory and industrial microscopy

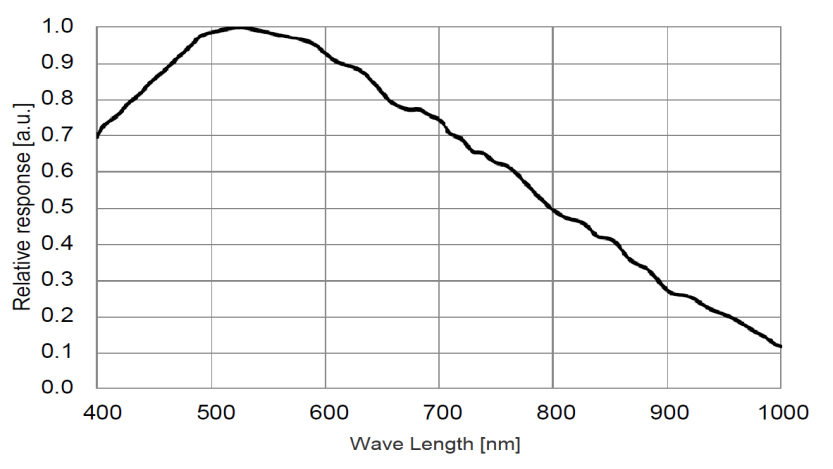

• Sony IMX334 CMOS Sensor – Excellent sensitivity and low noise for precision imaging
• 3840 × 2160 Ultra-HD Resolution – Captures detailed digital microscope images
• High-Speed Imaging – Up to ~44 fps at full resolution for smooth live viewing
• 1/1.7" Sensor Format – Wide field capture for modern digital microscopy systems
• USB 3.0 Interface – High-speed image transfer for real-time imaging workflows
• C-Mount Compatibility – Integrates with most microscope camera ports
• INFINITY ANALYZE Software Included – Image capture, measurement, and analysis tools with no annual license

Product Overview

The Teledyne Lumenera INFINITY8-8M is a high-resolution 8.3 megapixel monochrome microscope camera designed for research, industrial inspection, and digital microscopy applications.

The camera uses the Sony IMX334 CMOS sensor, delivering excellent image detail, low noise performance, and high sensitivity. Its 3840 × 2160 resolution allows researchers to capture ultra-high-definition microscope images suitable for documentation, analysis, and publication.

With frame rates of approximately 44 frames per second at full resolution, the INFINITY8-8M provides smooth live imaging while focusing and observing samples.

The camera connects via a USB 3.0 interface and uses a standard C-mount, allowing easy integration with upright, inverted, stereo, and inspection microscopes.

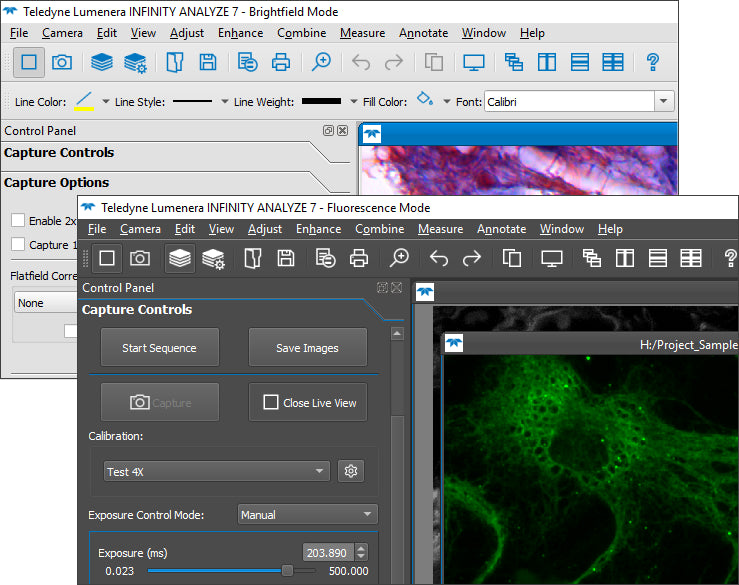

Each camera includes INFINITY ANALYZE imaging software, enabling users to capture images, perform measurements, annotate images, and generate reports for laboratory workflows.

Microscope Compatibility

The INFINITY8-8M microscope camera integrates with most modern microscopes using a standard C-mount camera port.

Compatible microscope types include:

• Upright biological microscopes
• Inverted research microscopes
• Stereo microscopes
• Metallurgical microscopes
• Semiconductor inspection microscopes

Common compatible microscope brands include:

• Olympus / Evident
• Nikon
• Leica Microsystems
• Zeiss

Adapters typically mount to the trinocular camera port.

Recommended Accessories

For optimal imaging performance, the following accessories are commonly used with the INFINITY8-8M camera:

C-Mount Camera Adapter

• 0.5× reduction adapter
• 0.63× reduction adapter

These adapters help match the microscope image size to the camera sensor.

USB 3.0 Cable

• High-speed cable required for maximum frame rate performance
• Usually included with the camera

Imaging Computer

Recommended system:

• Intel i5 / i7 processor
• 16 GB RAM
• SSD storage

Typical Applications

• Brightfield microscopy
• Fluorescence microscopy
• Life science imaging
• Histology and pathology
• Materials science inspection
• Semiconductor inspection
• Industrial quality control
• Teaching laboratories

Technical Specifications

Universal C-Mount Adapter Guide

Most microscope cameras attach using a C-mount interface combined with an optical adapter.

Common Adapter Options

0.5× Adapter

• Widens field of view
• Ideal for 1/1.8" and larger sensors

0.63× Adapter

• Balanced field of view and magnification

1× Adapter

• Used when no optical reduction is required

For the INFINITY8-8M, a 0.5× or 0.63× adapter is typically recommended depending on the microscope optical system.

Sensor Size & Field of View Guide

Microscope cameras use sensors of different sizes.

The 1/1.7" sensor used in the INFINITY8-8M offers a good balance of wide field coverage and high resolution imaging.

Condition

Available new.
Contact Spach Optics for availability and pricing.

Purchasing & Support

Spach Optics can help determine:

• the correct camera adapter for your microscope
• the optimal field of view for your imaging system
• the best camera for your microscopy application

Contact us with your microscope model and application for expert recommendations.
