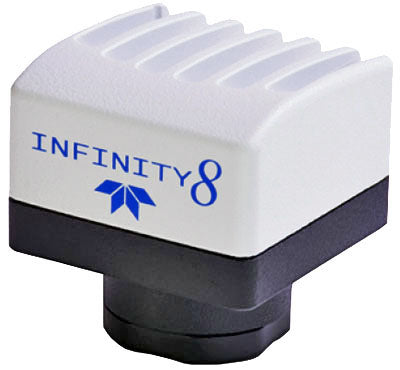

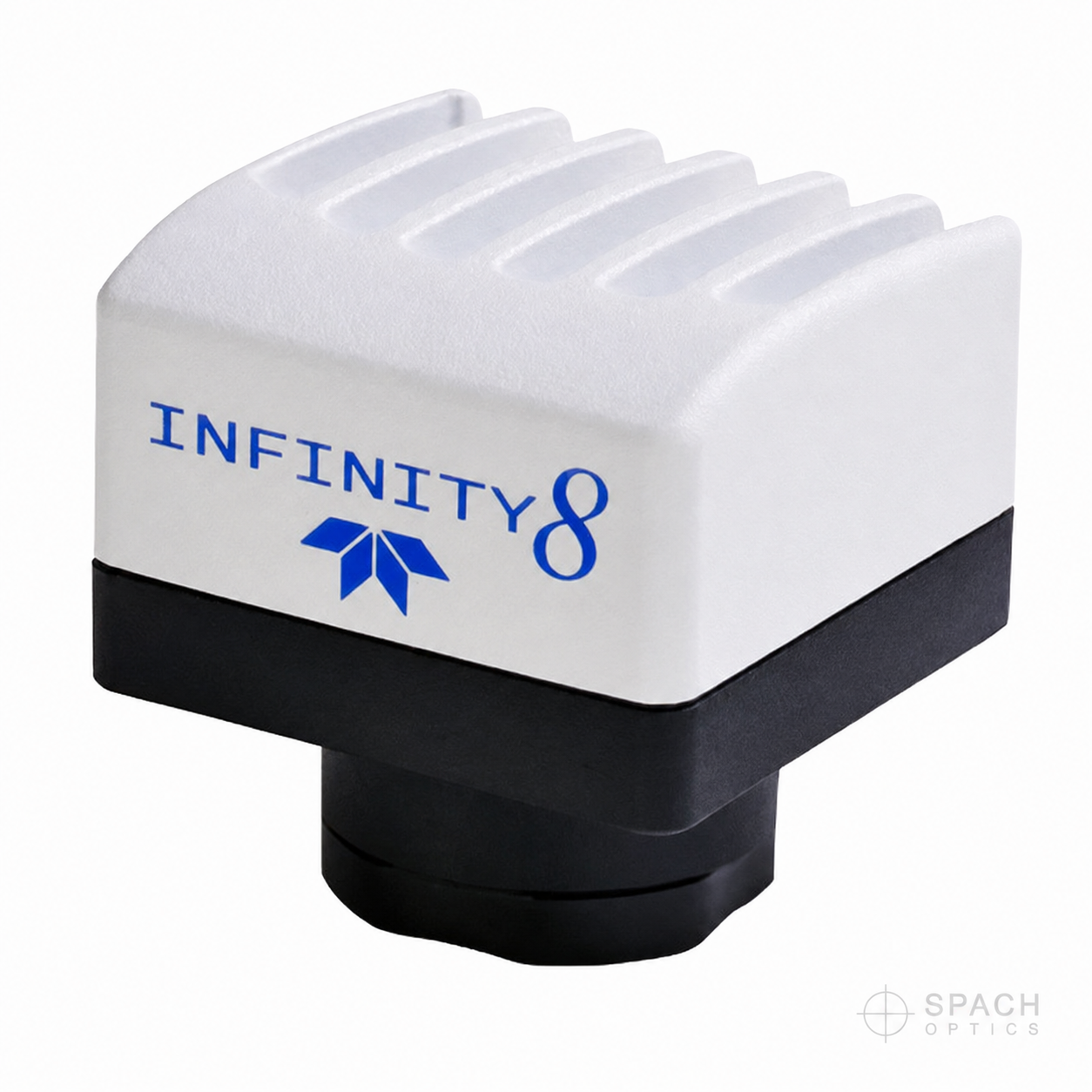

Teledyne Lumenera INFINITY8-3M Monochrome USB 3.0 Microscope Camera

Key Features

• 2.9 MP Monochrome CMOS Sensor – High sensitivity imaging ideal for fluorescence and low-light microscopy
• Sony IMX429 Global Shutter Sensor – Eliminates rolling shutter artifacts when imaging moving samples
• High-Speed Live Imaging – Up to ~62 frames per second at full resolution
• USB 3.0 High-Speed Interface – Fast data transfer for smooth real-time imaging
• 2/3" Sensor Format – Excellent field coverage for most microscope optical paths
• C-Mount Compatibility – Easily integrates with standard microscope camera adapters
• Optimized for Scientific Imaging – Ideal for fluorescence, monochrome documentation, and live microscopy

Product Overview

The Teledyne Lumenera INFINITY8-3M is a high-performance 2.9 megapixel monochrome microscope camera designed for demanding scientific imaging applications. Built around the Sony IMX429 global shutter CMOS sensor, this camera provides distortion-free image capture even when imaging moving specimens or performing high-speed live imaging.

With 1944 × 1472 resolution and fast frame rates, the INFINITY8-3M delivers smooth live viewing and sharp image capture for microscopy workflows ranging from routine lab documentation to advanced fluorescence imaging. The monochrome sensor architecture maximizes sensitivity and signal-to-noise performance, making it especially well suited for low-light microscopy techniques.

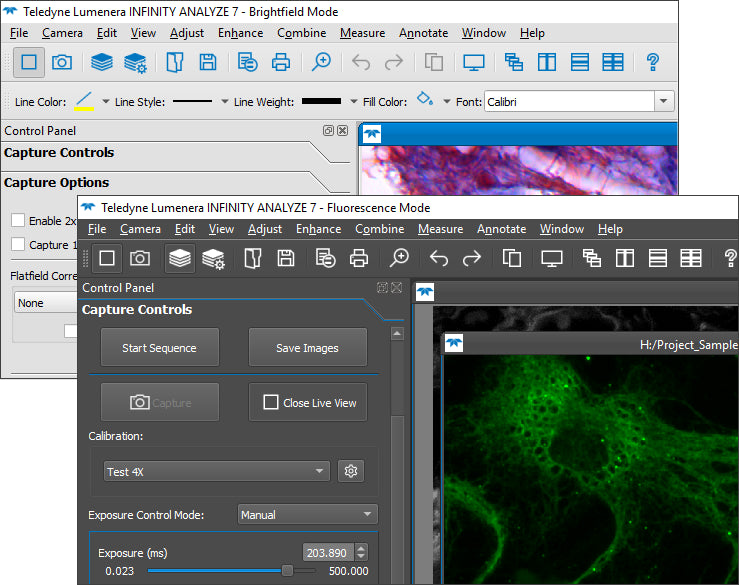

The camera connects via a USB 3.0 interface for high-speed data transfer and is compatible with most microscopes through its standard C-mount interface. It integrates seamlessly with INFINITY ANALYZE imaging software, enabling image capture, measurement, annotation, and reporting for laboratory and industrial environments.

Typical Applications

• Fluorescence microscopy
• Life science imaging
• Low-light microscopy techniques
• Materials science and industrial inspection
• Live cell imaging
• Research and teaching laboratories

Technical Specifications

Condition

Available new. Contact Spach Optics for availability and current pricing.

Purchasing & Support

Spach Optics can assist with camera selection, microscope compatibility, and recommended C-mount adapters to ensure optimal field of view and image quality for your microscope system.
