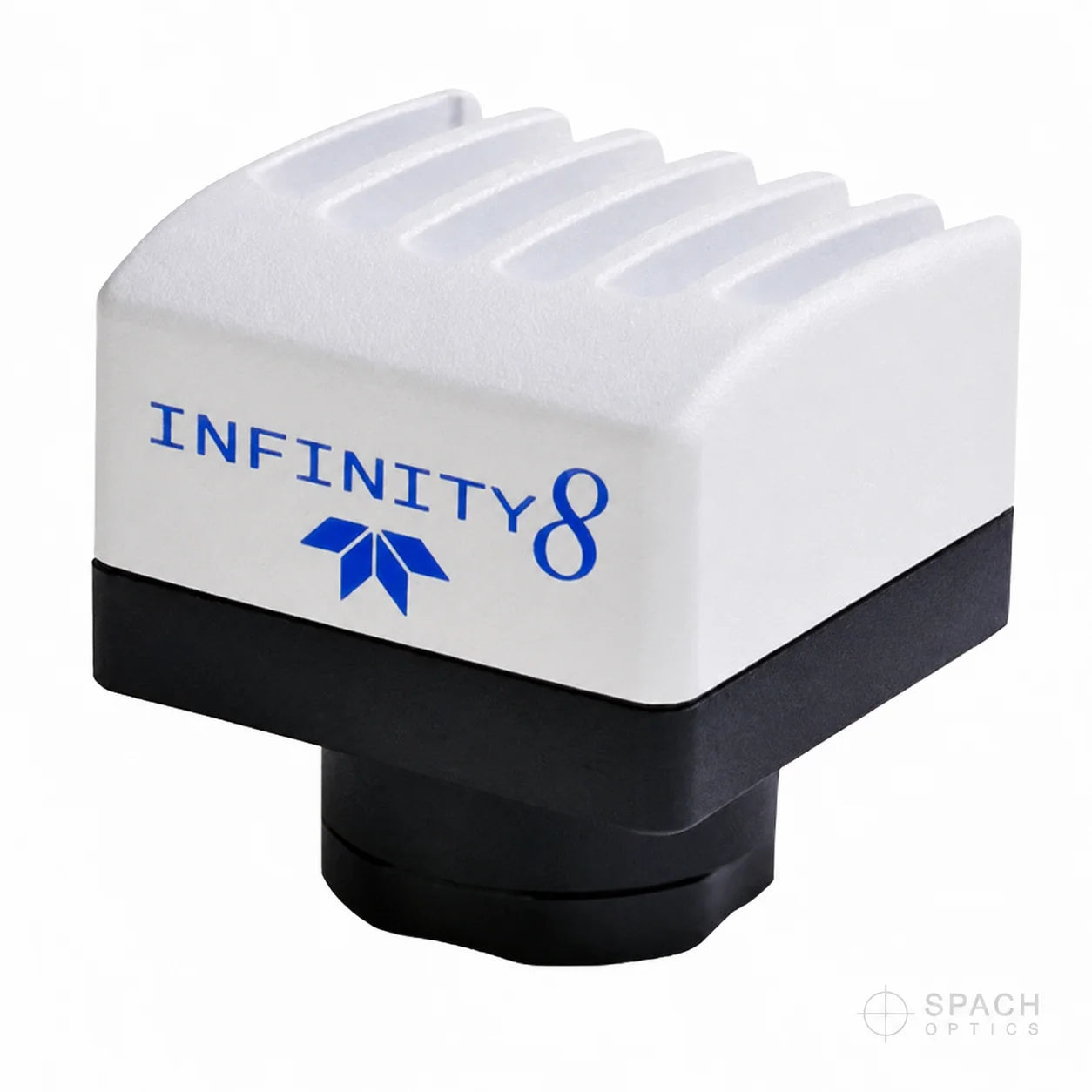

Teledyne Lumenera Infinity 8-9M 8.9 Megapixel Monochrome USB3 Microscope Camera
Regular price
$4,995.00
Lumenera INFINITY8-9M — 8.9 MP Sony IMX267 monochrome global shutter CMOS, 4K at 31 fps, USB3, C-mount. Maximum sensitivity for fluorescence and quantitative imaging. INFINITY ANALYZE included.
KEY FEATURES
- 8.9 MP Sony IMX267 Pregius monochrome global shutter CMOS — maximum light sensitivity without Bayer filter loss
- 31 fps at 4K (3840 × 2160) and 62 fps at HD (1920 × 1080) — lag-free live display
- 1" optical format sensor — large field of view to see more of the sample
- 73.3 dB dynamic range, 2.3 e⁻ read noise, 10.6K e⁻ full well capacity — optimized for low-light and quantitative imaging
- Monochrome sensor ideal for fluorescence, phase contrast, DIC, and ratiometric measurements

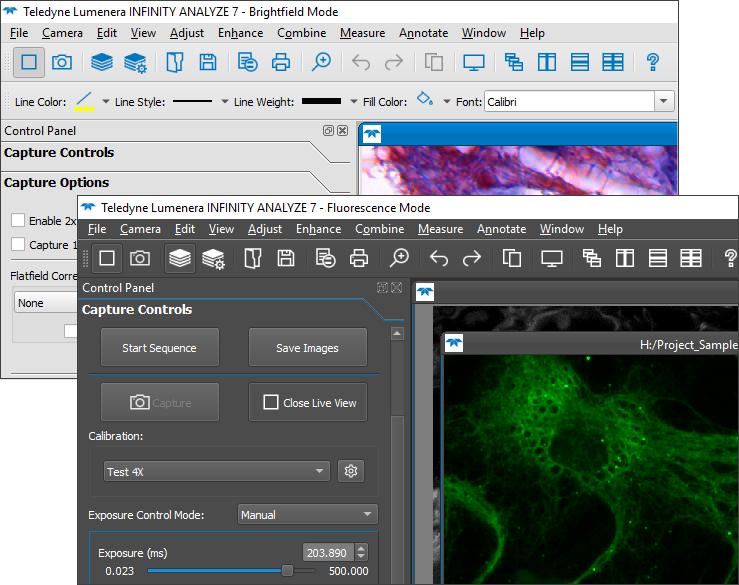

- INFINITY ANALYZE software included at no cost — multi-user, multi-computer, Windows and Mac compatible; supports measurement, annotation, tiling, and focus stacking
- Third-party software support: Image-Pro (Media Cybernetics), MetaMorph, Micro-Manager
- C-mount lens mount — compatible with all microscope brands; recommended coupler 1X
- USB3 bus-powered (5V, 2.3–3.6W) — no external power supply required
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Image Sensor | Sony IMX267 Pregius global shutter CMOS (monochrome) |
| Resolution | 8.9 MP (4112 × 2176) |
| Optical Format | 1" |
| Pixel Size | 3.45 × 3.45 μm |
| Frame Rate | 31 fps at 4K (3840 × 2160); 62 fps at HD (1920 × 1080) |
| Dynamic Range | 73.3 dB |
| Bit Depth | 8 or 12-bit |
| Full Well Capacity | 10.6K e⁻ |
| Read Noise | 2.3 e⁻ |
| Interface | USB3 Micro-B |
| Lens Mount | C-mount |
| Power | 5V via USB3 (2.3–3.6W) |
| Mass | 108 g |
| Operating Temperature | 0–50°C |
| Software | INFINITY ANALYZE (included) |
| OS | Windows 7/8.1/10 (32 & 64-bit); macOS 10.15.7+ |
| Country of Origin | Canada (Ontario) |
Microscope Compatibility
| C-mount compatible — fits all major microscope brands | |
| Recommended coupler | 1X C-mount |
| Windows 7, 8.1, 10 (32-bit and 64-bit) | |
| macOS 10.15.7 or later | |
| Image-Pro by Media Cybernetics | |
| MetaMorph | |
| Micro-Manager |
Typical Applications
Fluorescence microscopy — widefield, multi-channel, and low-light imaging
Phase contrast and DIC microscopy requiring maximum spatial resolution
Quantitative imaging and ratiometric measurements
Brightfield and darkfield microscopy documentation
Polarized light microscopy
Clinical research, pathology, and laboratory inspection
Industrial inspection and quality control imaging
