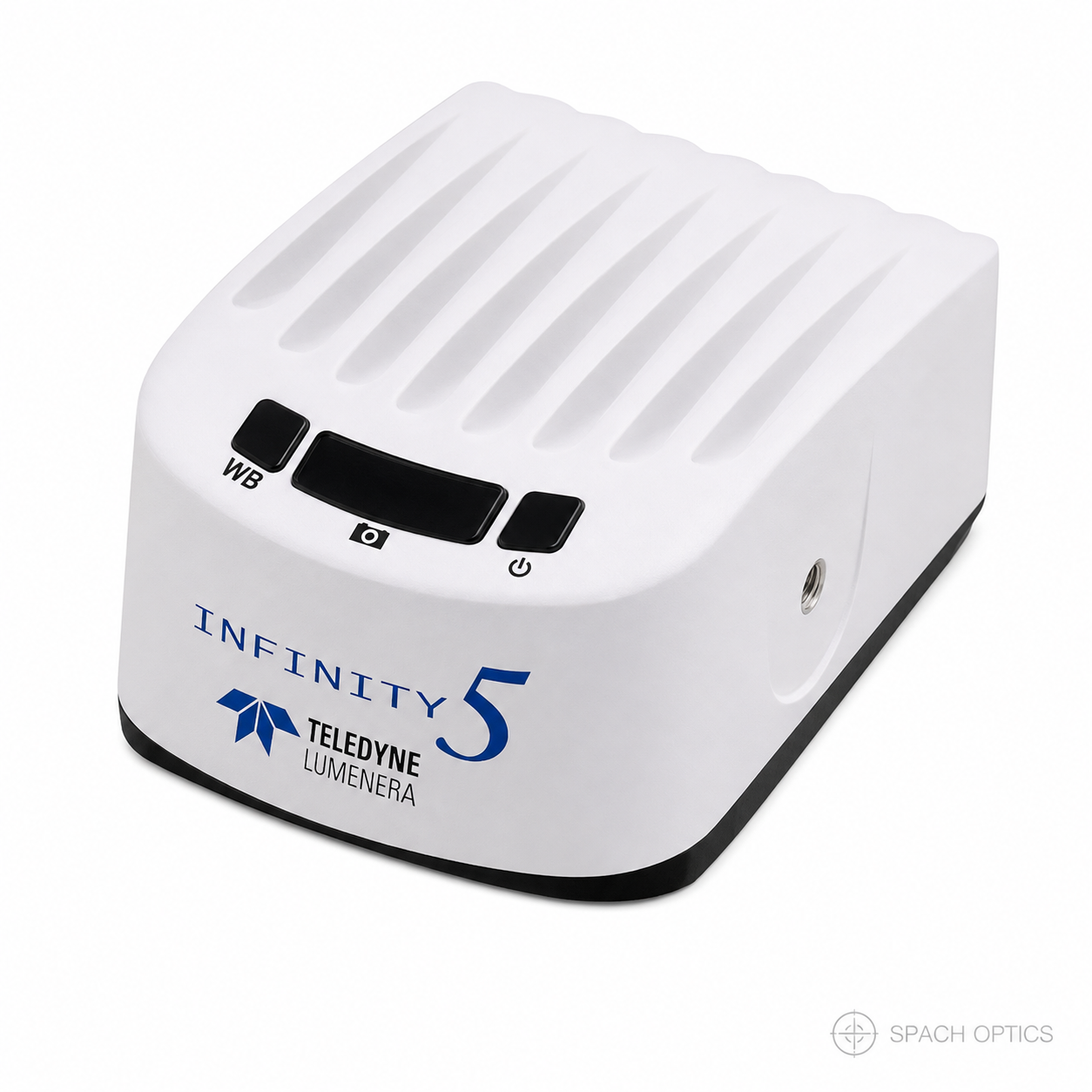

Lumenera INFINITY5-5C 5.1 Megapixel Color USB3 + HDMI Microscope Camera
Regular price
$4,475.00
Lumenera INFINITY5-5C — 5.1 MP Sony IMX250 color global shutter CMOS, ~75 fps, dual USB3 + HDMI output, C-mount. Fluorescence mode, timelapse, video. INFINITY ANALYZE included. 3-year warranty.
KEY FEATURES
- 5.1 MP Sony IMX250 Pregius color global shutter CMOS — eliminates rolling shutter artifacts for accurate live and captured imaging
- ~75 fps at full resolution (8-bit) — fast, lag-free live imaging
- Dual USB3 + HDMI output — simultaneous computer acquisition and live HDMI monitor display for teaching and conferencing
- True-to-life color reproduction — Lumenera color algorithms match eyepiece view
- On-camera soft-touch buttons — power, white balance, and image capture without a connected PC
- Multiple acquisition modes — single capture, fluorescence mode, timelapse, and video
- Subsampling 2×2 and ROI partial image modes supported
- INFINITY ANALYZE software license included — Windows and Mac compatible
- CE, FCC, RoHS, WEEE compliant (ECCN: EAR099) — 3-year warranty
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Image Sensor | Sony IMX250 Pregius global shutter CMOS (color) |
| Resolution | 5.1 MP (2464 × 2056) |
| Optical Format | 2/3" (11.1mm diagonal) |
| Pixel Size | 3.45 × 3.45 μm |
| Frame Rate | ~75 fps at full resolution (8-bit) |
| Dynamic Range | 72 dB |
| Bit Depth | 8 or 12-bit |
| Full Well Capacity | 10,500 e⁻ |
| Read Noise | 2.3 e⁻ |
| Sensitivity (Color) | 4.3 DN/(nJ/cm²) |
| Acquisition Modes | Single capture, fluorescence mode, timelapse, video |
| Partial Image Modes | Subsampling 2×2, ROI |
| Interface | USB 3.0 (5.0 Gbps) + HDMI output |
| Lens Mount | C-mount; recommended coupler 0.63x–0.7x |
| Power | External 5V DC, 1.2A, ~4W (included) |
| Dimensions | 97.8 × 69.8 × 50.8 mm |
| Mass | 330 g |
| Operating Temperature | 0–50°C |
| Operating Humidity | 5–95% non-condensing |

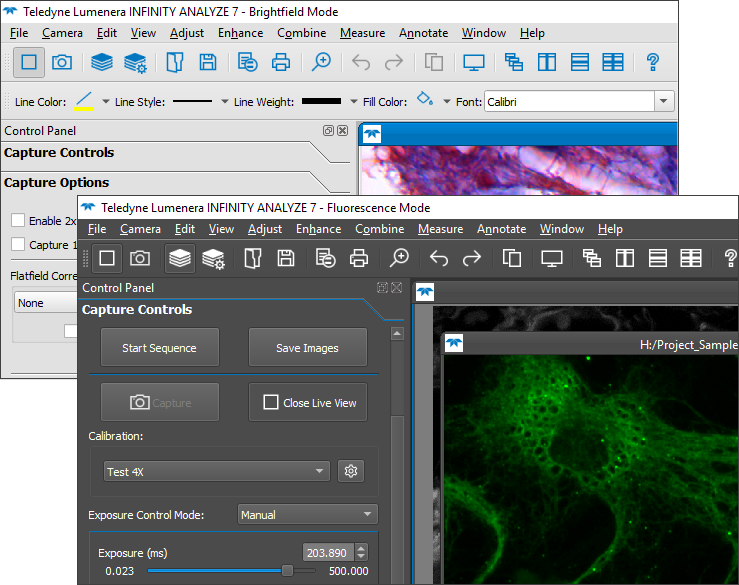

| Software | INFINITY ANALYZE (license included) |
| SKU | INFINITY5-5C |
| Compliance | CE, FCC, RoHS, WEEE (ECCN |
| Warranty | 3 years |
| Country of Origin | Canada (Ontario) |
Microscope Compatibility
| C-mount — compatible with all major microscope brands; recommended coupler 0.63x–0.7x | |
| USB 3.0 (5.0 Gbps) | |
| HDMI monitors and TVs | |
| Windows and Mac (INFINITY ANALYZE software) | |
| INFINITY ANALYZE acquisition and analysis software (included) |
Typical Applications
Brightfield microscopy imaging and documentation
Fluorescence microscopy with dedicated fluorescence acquisition mode
Phase contrast and DIC microscopy
Timelapse and video capture workflows
Teaching and conferencing — simultaneous HDMI display for group viewing
Clinical research, pathology, and histology documentation
Industrial inspection and quality control imaging
