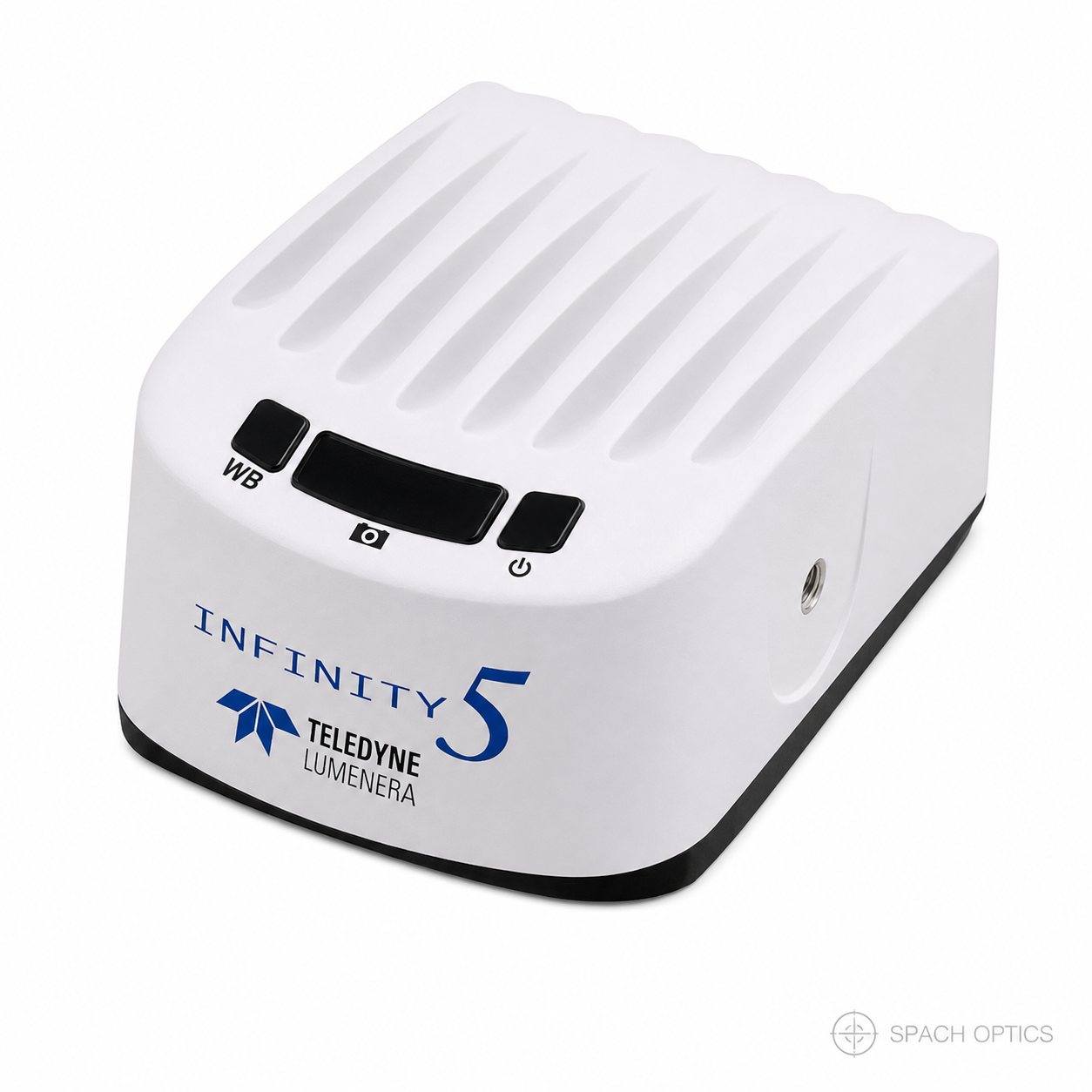

Teledyne Lumenera INFINITY 5-3M 3.2 Megapixel Monochrome USB3 + HDMI Microscope Camera
Regular price
$3,900.00
Lumenera INFINITY5-3M — 3.2 MP Sony IMX252 monochrome global shutter CMOS, 120 fps, 73 dB DR, dual USB3 + HDMI, C-mount. Fluorescence mode, timelapse, video. INFINITY ANALYZE included. 3-year warranty.
KEY FEATURES
- 3.2 MP Sony IMX252 Pregius monochrome global shutter CMOS — maximum sensitivity without Bayer filter loss, 63% QE
- 120 fps at full resolution (8-bit) — fastest in the INFINITY5 series for high-speed live imaging of dynamic specimens
- 73 dB dynamic range, 2.35 e⁻ read noise, 10,775 e⁻ full well capacity — optimized for low-light and quantitative imaging
- Dual USB3 + HDMI output — simultaneous computer acquisition and live HDMI monitor display for teaching and conferencing
- On-camera soft-touch buttons — power, white balance, and image capture without a connected PC
- Multiple acquisition modes — single capture, fluorescence mode, timelapse, and video
- Subsampling 2×2 and ROI partial image modes supported

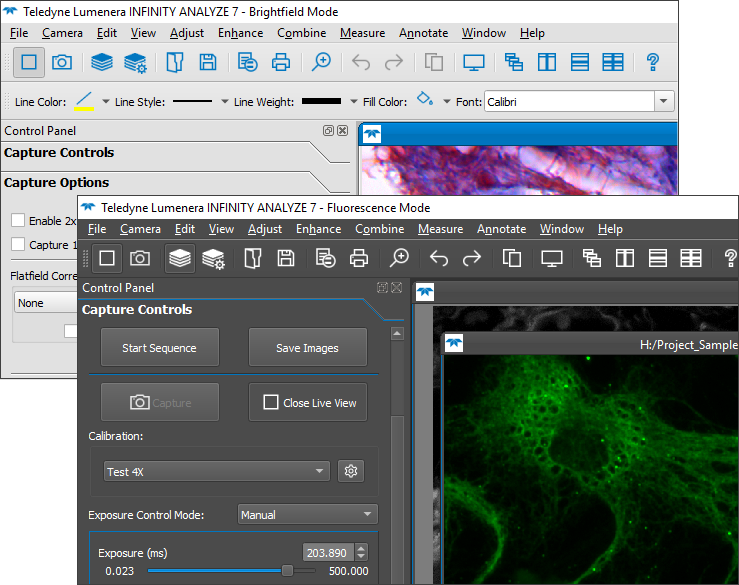

- INFINITY ANALYZE software license included — Windows and Mac compatible
- CE, FCC, RoHS, WEEE compliant (ECCN: EAR099) — 3-year warranty
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Image Sensor | Sony IMX252 Pregius global shutter CMOS (monochrome) |
| Resolution | 3.2 MP (2064 × 1544) |
| Optical Format | 1/1.8" (8.9mm diagonal) |
| Pixel Size | 3.45 × 3.45 μm |
| Frame Rate | 120 fps at full resolution (8-bit) |
| Dynamic Range | 73 dB |
| Bit Depth | 8 or 12-bit |
| Full Well Capacity | 10,775 e⁻ |
| Read Noise | 2.35 e⁻ |

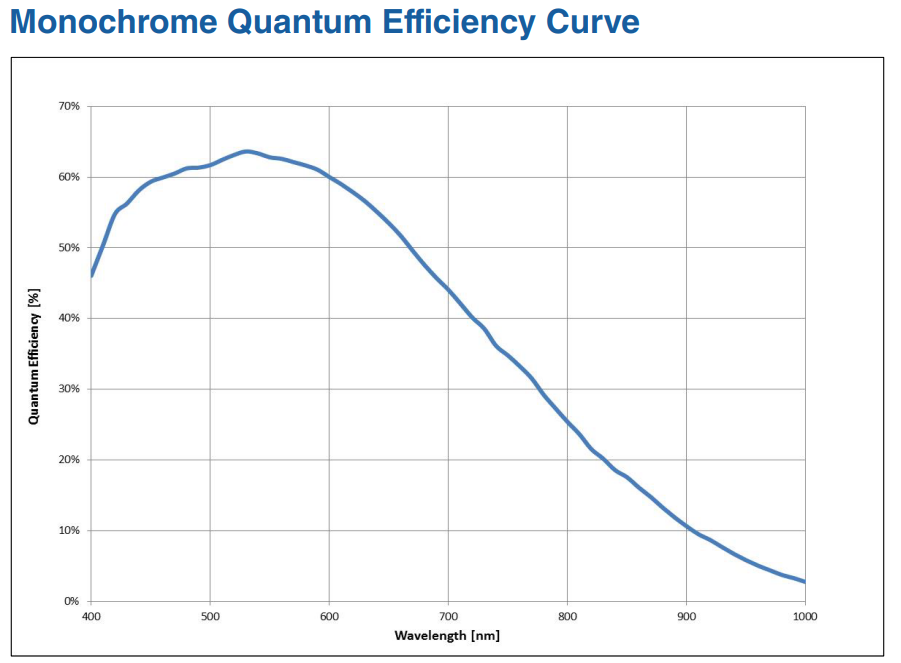

| QE (Mono) | 63% |
| Sensitivity (Mono) | 4.8 DN/(nJ/cm²) |
| Acquisition Modes | Single capture, fluorescence mode, timelapse, video |
| Partial Image Modes | Subsampling 2×2, ROI |
| Interface | USB 3.0 (5.0 Gbps) + HDMI output |
| Lens Mount | C-mount; recommended coupler 0.5x or 0.63x |
| Power | External 5V DC, 1.2A, ~4W (included) |
| Dimensions | 97.8 × 69.8 × 50.8 mm |
| Mass | 330 g |
| Operating Temperature | 0–50°C |
| Operating Humidity | 5–95% non-condensing |
| Software | INFINITY ANALYZE (license included) |
| SKU | INFINITY5-3M |
| Compliance | CE, FCC, RoHS, WEEE (ECCN |
| Warranty | 3 years |
| Country of Origin | Canada (Ontario) |
Microscope Compatibility
| C-mount — compatible with all major microscope brands; recommended coupler 0.5x or 0.63x | |
| USB 3.0 (5.0 Gbps) | |
| HDMI monitors and TVs | |
| Windows and Mac (INFINITY ANALYZE software) | |
| INFINITY ANALYZE acquisition and analysis software (included) |
Typical Applications
Fluorescence microscopy — widefield, multi-channel, and low-light imaging
High-speed live imaging of dynamic or motile specimens
Phase contrast and DIC microscopy requiring maximum sensitivity
Quantitative imaging and ratiometric measurements
Timelapse and video capture workflows
Teaching and conferencing — simultaneous HDMI display for group viewing
Clinical research, pathology, and laboratory inspection
