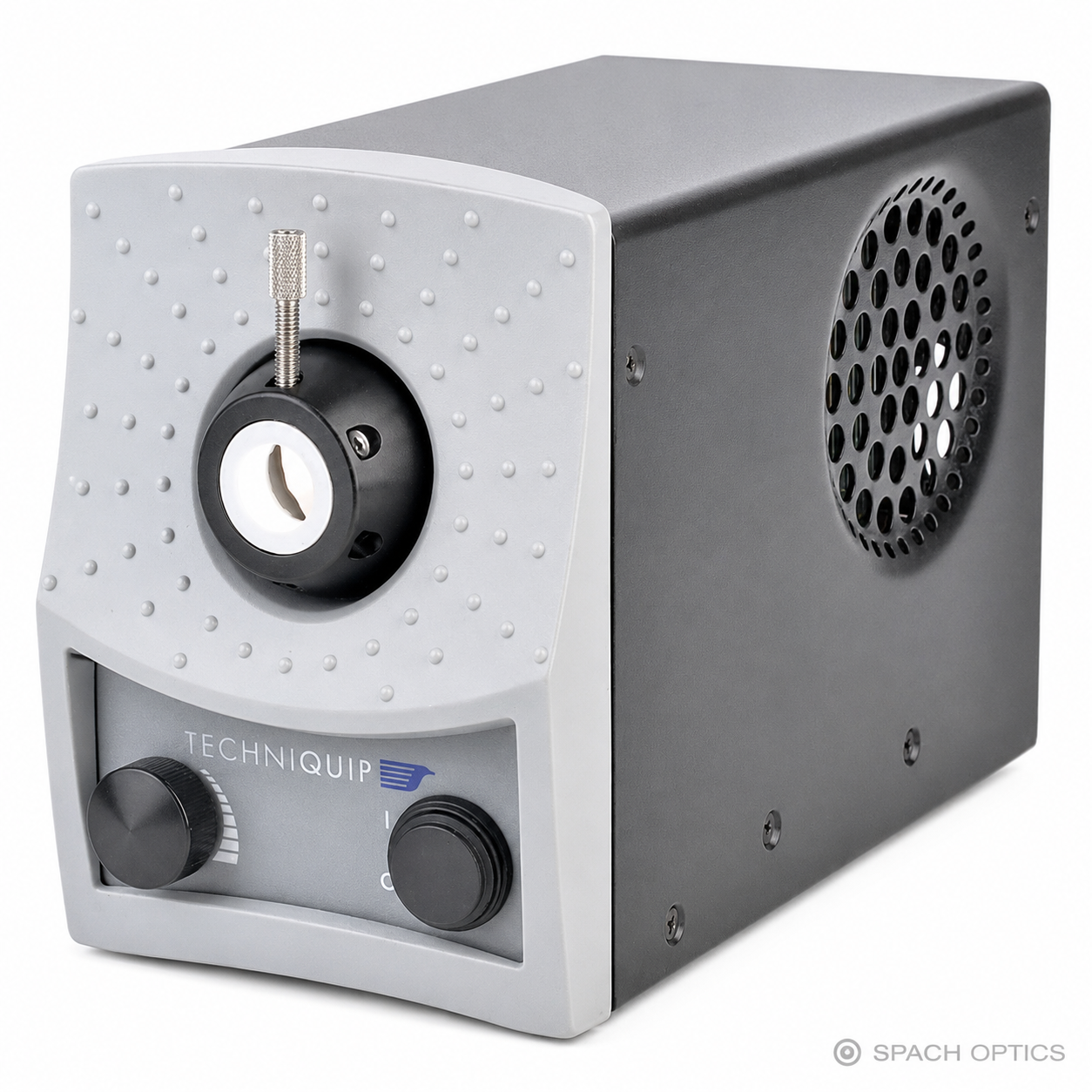

Techniquip ProLux Fiber Optic LED Illuminator

In stock

SKU: PLDM-X6K-TQB

$540.00
$540.00 $649.00 save $109.00
High-output daylight LED fiber optic illuminator — exceeds 150W halogen, 25,000–50,000 hr life, fully dimmable, USA made.

KEY FEATURES

  • High Output LED — proprietary high energy optical design
  • Exceeds output of a 150W halogen equivalent
  • Save 50–80% on energy over halogen models
  • Fully dimmable — no flicker
  • Constant color temperature — ideal for microphotography
  • Color temperatures: 3200K, 4500K, 5500K (custom spectrums available)
  • Advanced Heat Pipe Cooling Technology
  • Very low noise and vibration
  • Maintenance-free 25,000–50,000 hour LED life
  • Accepts virtually all light guides (use existing fiber guides)
  • Rugged stackable housing
  • Optional tethered remote control with 8' cord
  • Optional remote control via RS-232, RS-485, DMX
  • Output aperture 1" (25.4mm) standard
  • Universal power input (90–250VAC, 50/60 Hz)
  • USA made — Techniquip Corporation
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Techniquip PROLUX series of LED fiber optic illuminators establishes a new standard in high-intensity illumination. Engineered with a proprietary high-energy optical design, the PROLUX exceeds the output of traditional 150-watt halogen reflector-style illuminators while eliminating lamp replacement costs entirely.

Featuring advanced heat pipe cooling technology, the PROLUX delivers maintenance-free operation with an LED life expectancy of 25,000–50,000 hours and reduces power consumption by 50–80% compared to halogen equivalents. Constant color temperature ensures consistent results in photomicroscopy without repeated white balance correction.

The PROLUX accepts virtually all existing light guides and fiber optic cables, making it a seamless drop-in upgrade for most systems. Available in 3200K, 4500K, and 5500K color temperatures with worldwide power operation (90–250VAC, 50/60 Hz). Custom spectral outputs available upon request.

Technical Specifications

LED Type Daylight High Output LED
Color Temperatures 3200K, 4500K, 5500K (custom spectrums available)
Output Exceeds 150W halogen equivalent
LED Life 25,000–50,000 hours (maintenance-free)
Energy Savings 50–80% vs. halogen
Output Aperture 1" (25.4mm) standard
Dimensions 4.75"W × 9"L × 6"H
Power Input 90–250VAC, 50/60 Hz (universal)
Cooling Advanced Heat Pipe Technology
Remote Control Optional tethered (8' cord), RS-232, RS-485, DMX
Housing Rugged, stackable
Manufacturer Techniquip Corporation (USA)

Microscope Compatibility

Accepts virtually all standard fiber optic light guides
Compatible with existing halogen fiber optic systems as a drop-in upgrade
Works with ring lights, gooseneck guides, and bifurcated fiber bundles
Optional adapters available for non-standard fiber connections
Compatible with RS-232, RS-485, and DMX remote control systems

Typical Applications

Fiber optic illumination for stereo and compound microscopy
Photomicroscopy and scientific imaging
Industrial inspection and machine vision lighting
Fluorescence excitation and ring light illumination
Medical and dental imaging systems
Quality control and metrology lighting
