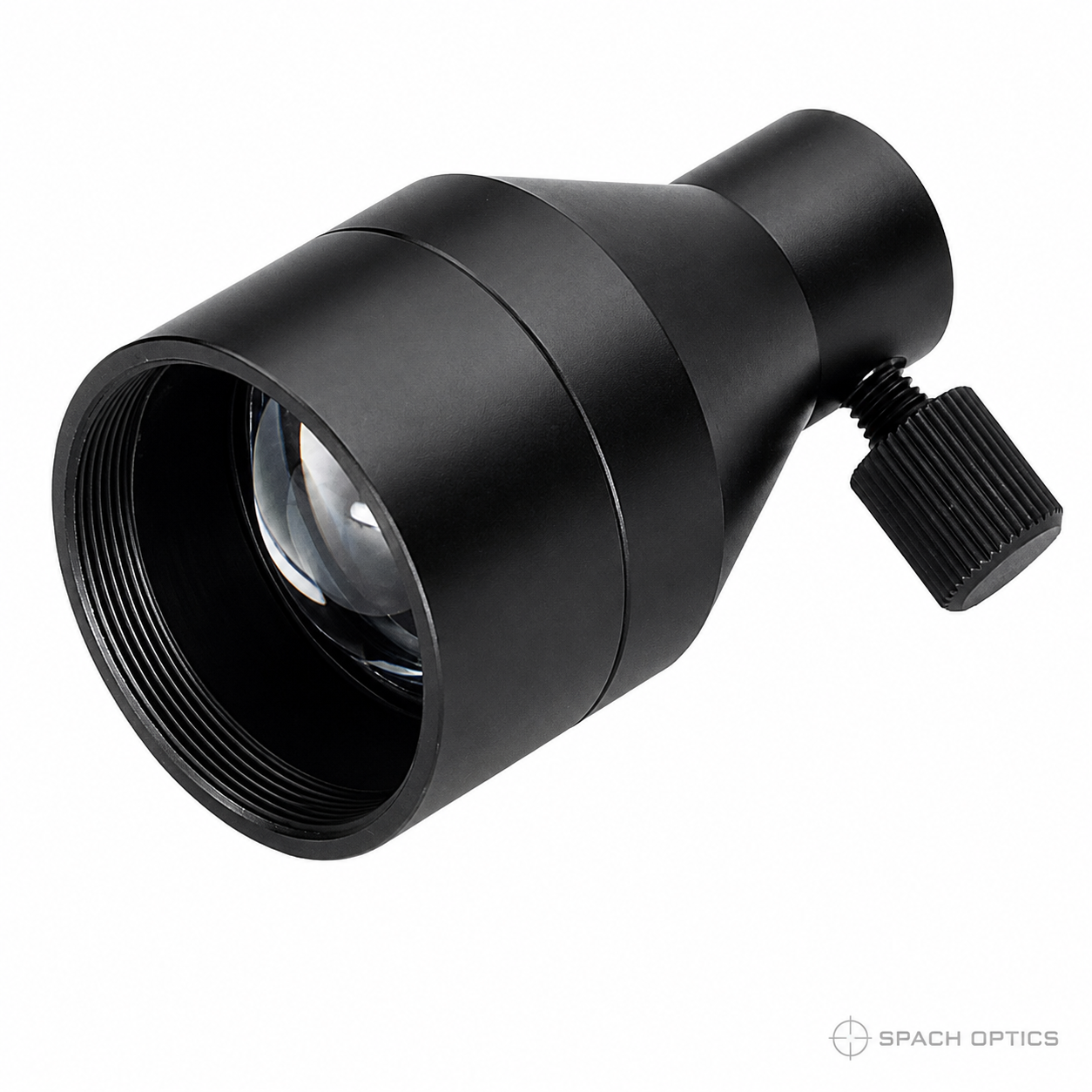

Schott Focusing Lens for Light Guides up to 5mm
Regular price
$53.00
Schott Focusing Lens โ Cat. No. 158.210 | Up to 5mm Light Guides | ~3X Intensity Boost | KL Series Compatible | Made in Germany
KEY FEATURES
- Concentrates fiber-optic light output into a focused hotspot with ~3X center-spot intensity boost
- Fits any standard flexible fiber bundle or gooseneck light guide up to 5mm in diameter
- Filter-ready mount accepts optional daylight (158.211), halogen (158.207), and polarization (158.205) filters
- Compatible with Schott KL 300, KL 1500, KL 1600, and KL 2500 cold light sources
- Compact, space-saving design for routine laboratory and industrial inspection use
- Made in Germany by Schott AG to exacting optical standards
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Catalog Number | 158.210 |
| Manufacturer | Schott AG |
| Function | Light collimation and spot intensity concentration (~3X boost) |
| Maximum Light Guide Diameter | 5.0mm |
| Filter Compatibility | Daylight 158.211, Halogen 158.207, Polarization 158.205 (sold separately) |
| Compatible Light Sources | Schott KL 300, KL 1500, KL 1600, KL 2500 |
| SKU | 158.210 |
| Country of Origin | Germany |
Microscope Compatibility
| Schott KL 300 Cold Light Source | |
| Schott KL 1500 Cold Light Source | |
| Schott KL 1600 LED Cold Light Source | |
| Schott KL 2500 Cold Light Source | |
| Any flexible fiber-optic light guide or gooseneck with bundle diameter up to 5mm | |
| Compatible with Leica, Zeiss, Olympus, and Nikon gooseneck light guide accessories | |
| Optional filters | Daylight 158.211, Halogen 158.207, Polarization 158.205 (sold separately) |
Typical Applications
Stereo microscope spot illumination
Electronics and PCB inspection requiring concentrated light
Jewelry, gemology, and fine detail inspection
Industrial surface inspection and quality control
Macrophotography with targeted lighting
Biological dissection and specimen preparation
