SCHOTT A08410 Single Gooseneck Fiber-Optic Light Guide 30"

Schott A08410 Single Gooseneck 30" Fiber Optic Light Guide — Black (762mm)

• 💡 30" (762mm) single gooseneck — long, flexible reach for precise light placement
• ⬛ Black dekabon semi-rigid tubing — holds position firmly once adjusted, no drift
• 🔦 5mm distal ferrule — accepts standard spot lenses with or without polarizing caps
• 🔗 Compatible with Schott ACE, MC-LS, and CV-LS light sources (not KL series)
• ✅ Condition: New

🔧 Product Description

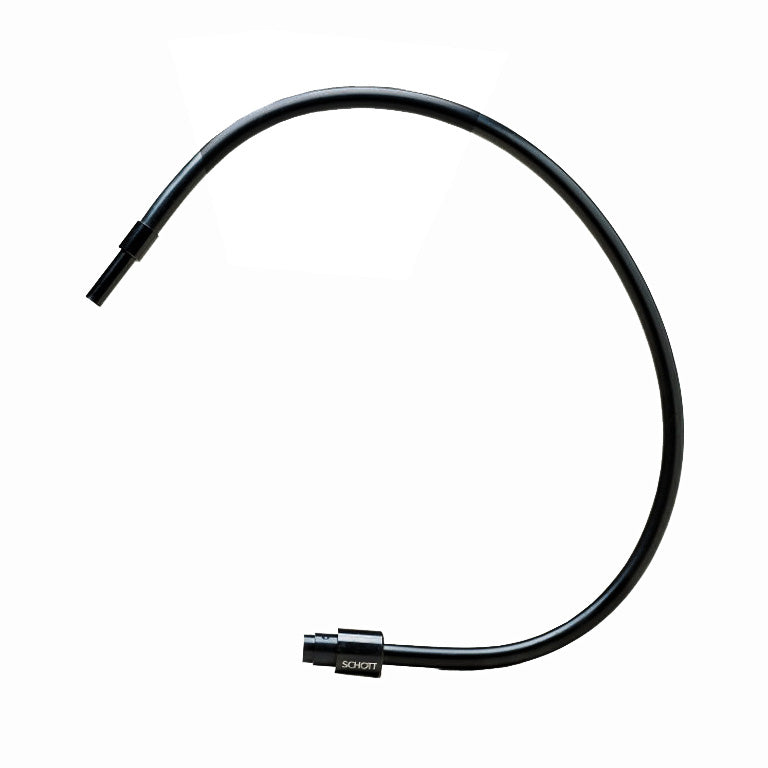

The Schott A08410 is a 30-inch single gooseneck fiber optic light guide built with black dekabon semi-rigid tubing. Unlike flexible fiber bundles that sag or shift during use, the dekabon construction holds its shape after positioning — giving you repeatable, stable illumination exactly where you need it without constant readjustment.

The 5mm distal output ferrule is compatible with Schott's standard spot lens accessories, including polarizing caps, making it straightforward to adapt the illumination angle and quality for different specimen types. With a 10mm active input fiber diameter and 12mm gooseneck tubing, this guide efficiently couples light from the source and delivers it with minimal loss to the target area.

Positioning a single gooseneck at an oblique angle produces directional, raking illumination that enhances surface texture and topographic contrast — ideal for inspection and quality control applications. For near shadow-free illumination, pair with a second gooseneck placed in an opposing position. Compatible with Schott ACE, MC-LS, and CV-LS illuminators; not compatible with the KL series.

🔎 Typical Applications

• Stereo microscope illumination for inspection and dissection
• Surface texture and topography enhancement via oblique lighting
• Electronics and PCB inspection
• Gemology, jewelry, and fine materials examination
• Replacement or spare gooseneck for Schott ACE or MC-LS systems

📊 Key Specifications

📋 University and institutional purchase orders accepted. Contact us with any questions — we're happy to help you find the right light guide for your illumination setup.
