Schott A08927 Fiber Optic Backlight 8.0" x 8.0"

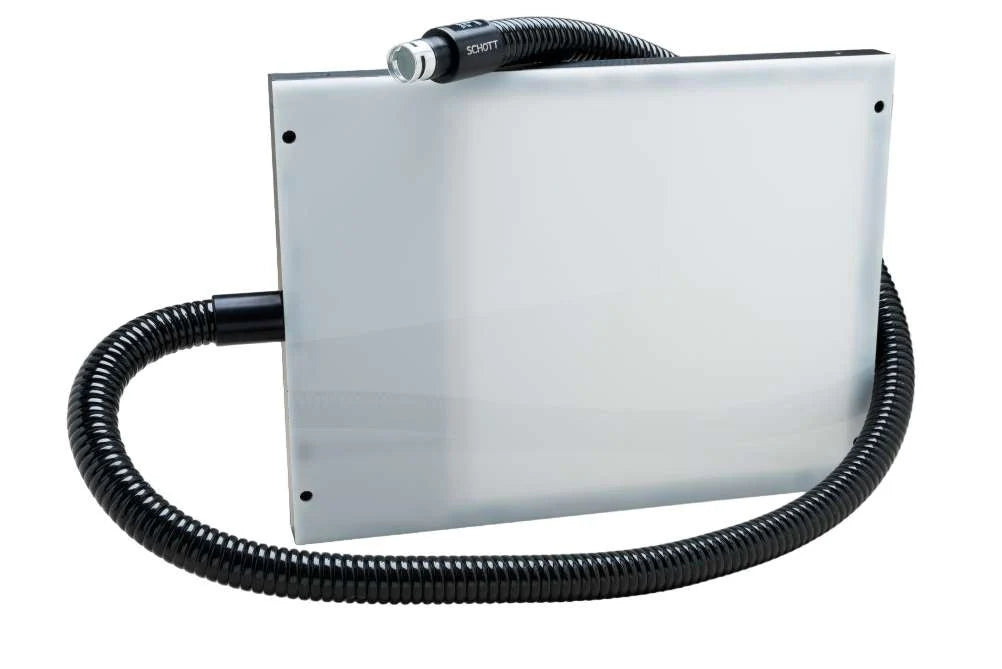

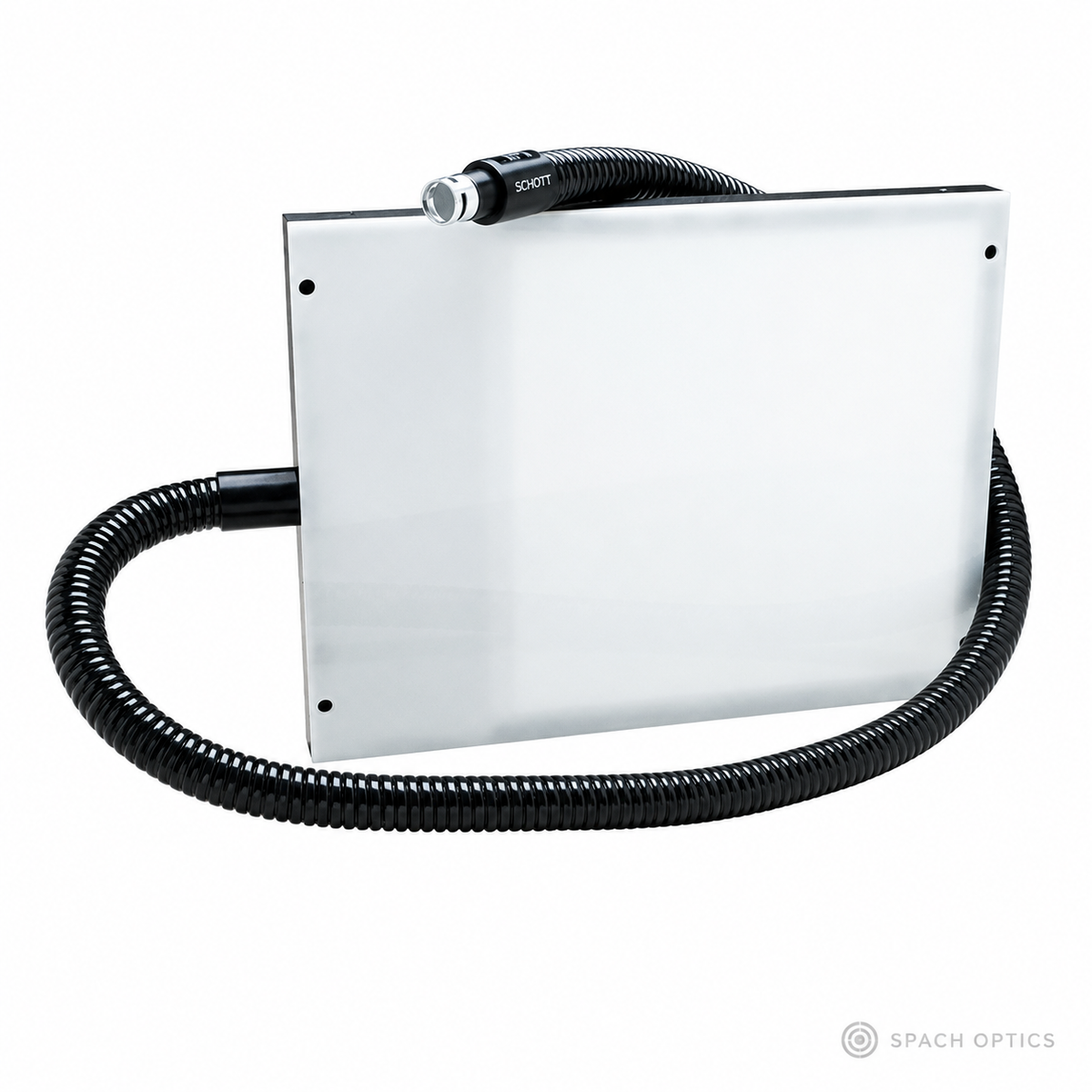

The Schott A08927 Fiber Optic Backlight (8.0" × 8.0") is the largest-format precision fiber optic transmitted light illuminator in the Schott backlight range — delivering uniform, diffuse backlighting over an 8.0" × 8.0" (203mm × 203mm) active area for machine vision, industrial inspection, and scientific imaging applications requiring shadow-free transmitted illumination over large assemblies, panels, documents, or specimens.

• 📐 8.0" × 8.0" (203mm × 203mm) active area — the largest Schott fiber optic backlight, providing maximum coverage for wide-field transmitted light inspection
• 🌟 Uniform diffuse transmitted illumination — shadow-free backlighting for crisp silhouette imaging, edge detection, and transmitted light inspection across the full 64 square inch active area
• 🔌 Compatible with Schott KL series and ColdVision cold light sources via standard fiber optic light guide connection
• 🛡️ Robust, low-profile housing — designed for integration into automated machine vision systems, inspection fixtures, and production line setups
• 🇩🇪 Schott quality, made in Germany — precision fiber optic construction for consistent, uniform light output and long service life
• ✅ New — part number A08927

🔧 Product Description

The Schott A08927 is the flagship large-format fiber optic backlight in the Schott range — 8.0 inches × 8.0 inches (203mm × 203mm) of uniform, diffuse transmitted illumination. At 64 square inches of active area, the A08927 is the definitive choice for applications where smaller backlights (2" × 2", 3" × 3", or 4" × 5") cannot cover the full inspection field — including large PCB and panel inspection, wide-format document and film examination, large assembly silhouette imaging, and production line inspection of oversized components. The fiber optic construction delivers cold, IR-free transmitted light uniformly across the full 8" × 8" active area without hot spots or intensity falloff at the edges, enabling crisp silhouette imaging, edge detection, and dimensional measurement of large components. The robust, low-profile housing is designed for integration into automated machine vision systems, inspection fixtures, and production line setups. Compatible with Schott KL series and ColdVision cold light sources. Precision German fiber optic construction ensures consistent, uniform light output and long service life. Supplied new from stock, part number A08927. Please contact us for full specifications including uniformity data, light source power requirements, and system configuration guidance.

🔎 Typical Applications

• Large PCB, panel, and flat panel display inspection requiring wide-area backlighting
• Wide-format document, film, and transparency illumination
• Silhouette and edge detection imaging of large assemblies and components
• Production line inspection of oversized components requiring maximum backlight coverage
• Dimensional measurement and gauging of large parts
• Glass substrate, solar panel, and semiconductor wafer inspection

📊 Key Specifications

University and institutional purchase orders are welcome. Please contact us for invoicing, uniformity specifications, light source power requirements, and system configuration guidance.
