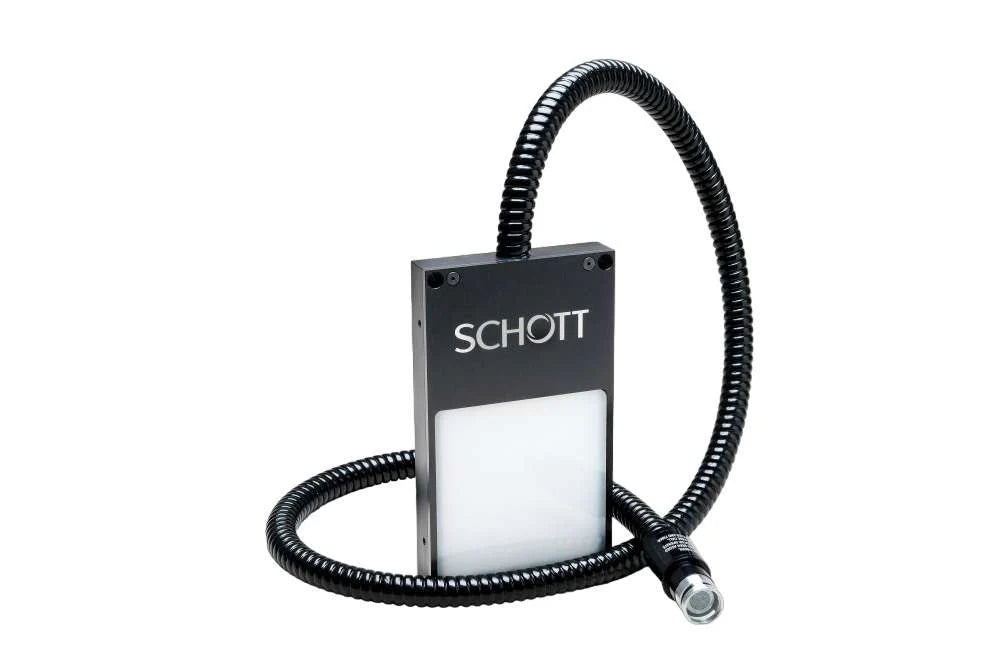

Schott A08923 Fiber Optic Backlight 3.0" x 3.0"

The Schott A08923 Fiber Optic Backlight (3.0" × 3.0") is a mid-format precision fiber optic transmitted light illuminator designed for Schott KL series and ColdVision cold light sources — delivering uniform, diffuse backlighting over a 3.0" × 3.0" (76mm × 76mm) active area for machine vision, inspection, and scientific imaging applications requiring shadow-free transmitted illumination over medium-sized specimens or components.

• 📐 3.0" × 3.0" (76mm × 76mm) active area — mid-format backlight positioned between the 2" × 2" A08920 and the 4" × 5" A08925, covering medium-sized components and specimens
• 🌟 Uniform diffuse transmitted illumination — shadow-free backlighting for crisp silhouette imaging, edge detection, and transmitted light inspection across the full active area
• 🔌 Compatible with Schott KL series and ColdVision cold light sources via standard fiber optic light guide connection
• 🛡️ Compact, low-profile housing — fits in tight inspection fixtures and integrates easily into automated machine vision and inspection systems
• 🇩🇪 Schott quality — precision fiber optic construction for consistent, uniform light output and long service life
• ✅ New — part number A08923

🔧 Product Description

The Schott A08923 is a mid-format fiber optic backlight delivering uniform, diffuse transmitted illumination over a 3.0" × 3.0" (76mm × 76mm) active area — larger than the standard 2" × 2" A08920 but more compact than the 4" × 5" A08925, making it the right choice for medium-sized components, specimens, and inspection fields that fall between the two. The fiber optic construction delivers cold, IR-free transmitted light uniformly across the full 3" × 3" active area, enabling crisp silhouette imaging, edge detection, dimensional measurement, and transmitted light inspection without hot spots or intensity falloff at the edges. The compact, low-profile housing fits in tight inspection fixtures and integrates easily into automated machine vision and inspection systems. Compatible with Schott KL series and ColdVision cold light sources via standard fiber optic connection. Precision fiber optic construction ensures consistent, uniform light output and long service life. Supplied new from stock, part number A08923. Please contact us for full specifications including uniformity data and compatible light source configurations.

🔎 Typical Applications

• Machine vision and automated optical inspection (AOI) of medium-sized components
• Silhouette and edge detection imaging of mid-size parts and assemblies
• PCB and electronics component inspection requiring 3" × 3" backlight coverage
• Document, film, and transparency illumination over a medium area
• Dimensional measurement and gauging of medium-sized components
• Pharmaceutical and medical device packaging inspection

📊 Key Specifications

University and institutional purchase orders are welcome. Please contact us for invoicing, uniformity specifications, and compatible light source configuration guidance.
