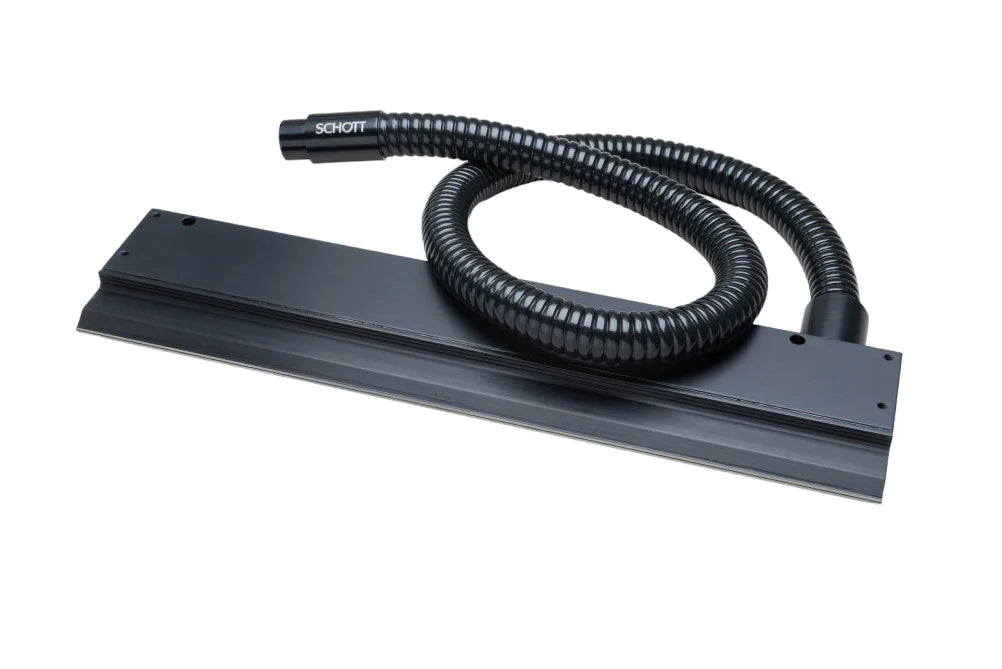

Schott A08910 Lightline Fiber Optic Line Light 10.0" x 0.020"

The Schott A08910 Lightline is a large-format precision fiber optic line light delivering a narrow, uniform 10.0" × 0.020" illuminated line — the longest configuration in the Schott Lightline range, designed for Schott KL series and ColdVision cold light sources and engineered for wide-field line-scan imaging, web inspection, and large-format surface inspection applications requiring maximum line length with an exceptionally narrow line width.

• 📐 10.0" × 0.020" (254mm × 0.51mm) illuminated line — the longest Schott Lightline configuration, with the narrowest line width in the range for maximum spatial resolution
• 💡 High-intensity fiber optic construction for consistent, bright, uniform line illumination across the full 10-inch length without hot spots or intensity falloff
• 📷 Ideal for wide-field line-scan cameras and machine vision systems requiring maximum line length and high spatial resolution across large inspection fields
• ❄️ Cold light (IR-free) illumination — protects heat-sensitive specimens, films, and materials during extended high-speed inspection runs
• 🇩🇪 Schott quality, made in Germany — precision fiber optic construction for consistent line uniformity and long service life
• ✅ New — part number A08910

🔧 Product Description

The Schott A08910 Lightline is the flagship large-format fiber optic line light in the Schott range — 10.0 inches long by just 0.020 inches wide (254mm × 0.51mm). At 10 inches, the A08910 provides the maximum line length available in the Schott Lightline series, making it the definitive choice for wide-field line-scan camera systems, high-speed web and film inspection, and large-format surface defect detection where the full width of the inspection field must be covered in a single pass. The 0.020" line width is the narrowest in the Schott Lightline range, delivering exceptional spatial resolution along the line axis — critical for detecting fine surface defects, scratches, and dimensional variations on high-value materials. The fiber optic construction delivers high-intensity, uniform illumination along the full 10-inch length without hot spots or intensity falloff at the edges. Cold light output ensures IR-free illumination, protecting heat-sensitive films, papers, and materials during extended high-speed inspection runs. Compatible with Schott KL series and ColdVision cold light sources. Supplied new from stock, part number A08910. Please contact us for full optical specifications and system configuration guidance.

🔎 Typical Applications

• Wide-field line-scan camera illumination for machine vision and high-speed automated inspection
• Web, film, paper, and sheet inspection in high-speed production environments
• Large-format surface defect detection requiring maximum line length coverage
• High-resolution dimensional measurement and gauging with structured line light
• 3D profilometry and structured light scanning of large surfaces
• Flat panel display and glass substrate inspection

📊 Key Specifications

University and institutional purchase orders are welcome. Please contact us for invoicing, full optical specifications, and application guidance.
