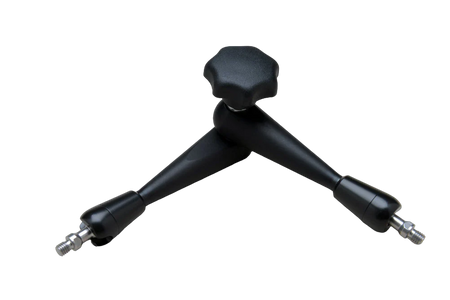

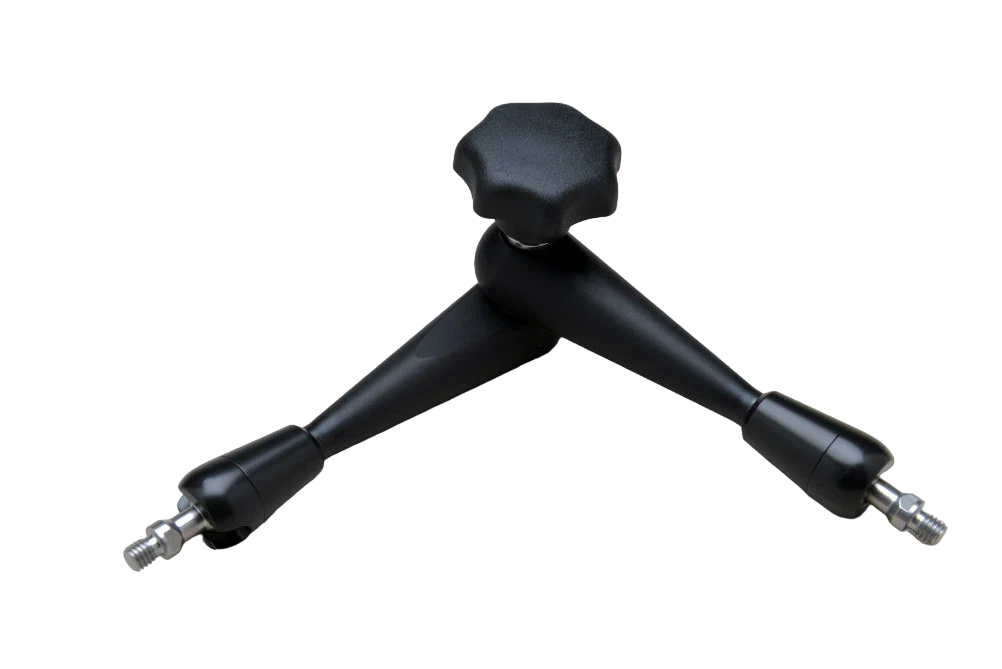

Schott A08506 Articulated Arm M6/M6 for Fiber Optic Light Guides

In stock

SKU: A08506

$292.00
The Schott A08506 Articulated Arm (M6/M6) is a precision multi-joint articulated positioning arm with M6 threaded connections at both ends — designed for mounting and precisely positioning Schott fiber optic gooseneck light guides and illumination accessories in laboratory, inspection, and industrial illumination setups where flexible, lockable multi-axis positioning is required.

KEY FEATURES

  • Articulated multi-joint arm for flexible, multi-axis positioning of Schott fiber optic light guides and illumination accessories
  • M6/M6 threaded connections at both ends — compatible with Schott M6-threaded gooseneck light guides, weighted bases (158.340), and standard M6 laboratory stands and fixtures
  • Lockable joints for stable, repeatable positioning — holds the light guide precisely in place once positioned without drift
  • Extends reach and positioning flexibility beyond what a standard gooseneck arm alone can achieve — ideal for reaching over large specimens or into confined spaces
  • 🇩🇪 Schott quality, made in Germany — precision construction for reliable, long-term use in demanding laboratory and industrial environments
  • New — part number A08506
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Schott A08506 Articulated Arm provides a versatile, multi-axis positioning solution for Schott fiber optic light guides and illumination accessories. With M6 threaded connections at both ends, the arm connects directly to Schott M6-threaded gooseneck light guides on one end and to Schott weighted bases (such as the 158.340), standard M6 laboratory stands, or other M6-threaded fixtures on the other — creating a flexible, lockable positioning system that extends the reach and adjustability of the illumination setup well beyond what a fixed or gooseneck mount alone can provide. The articulated joints can be positioned across multiple axes and locked in place, ensuring the light guide stays exactly where positioned without drift during use. This makes the A08506 particularly useful for reaching over large specimens, positioning illumination into confined or awkward spaces, or building custom multi-arm illumination configurations on the Schott 158.340 weighted base. Supplied new from stock, part number A08506. Please contact us for full dimensional specifications and compatibility details for your setup.

Technical Specifications

Part Number A08506
Type Articulated positioning arm
Thread Connections M6 (both ends)
Compatible With Schott M6-threaded gooseneck light guides, weighted base 158.340, M6 laboratory stands
Joint Type Multi-axis articulated, lockable
Country of Origin Germany
Condition New
SKU A08506

Microscope Compatibility

Typical Applications

Extending reach and positioning flexibility of Schott gooseneck light guides on laboratory stands
Multi-axis illumination positioning for large specimen dissection and inspection
Reaching into confined or awkward spaces where a standard gooseneck cannot reach
Building custom multi-arm illumination configurations on the Schott 158.340 weighted base
Industrial inspection setups requiring precise, lockable light guide positioning
Replacement or additional articulated arm for existing Schott KL series illumination systems
