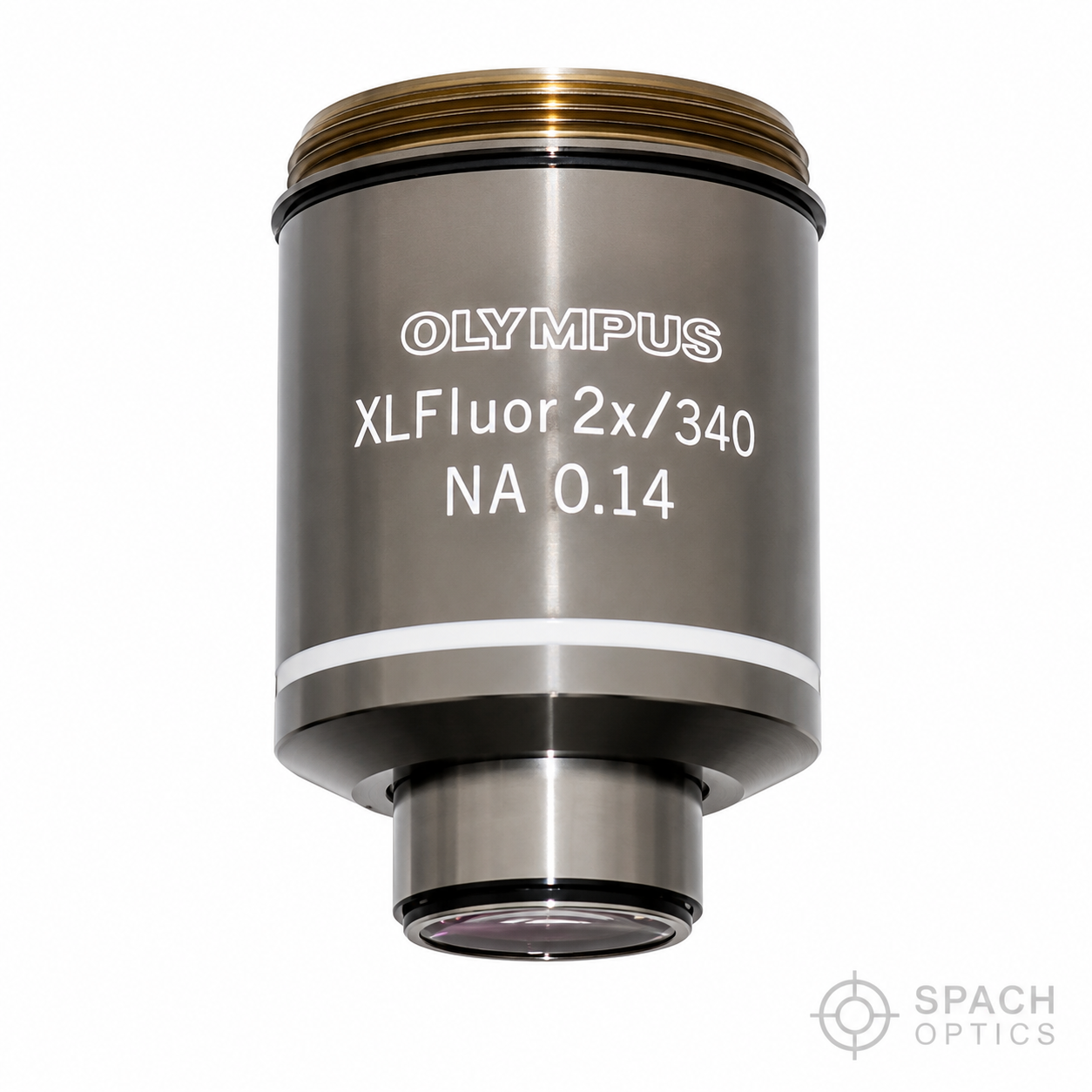

Olympus XLFluor 2x / 340 Macro-Fluorescence Objective
Regular price
$2,900.00
Sale price
$2,900.00
Regular price
$5,172.00
save $2,272.00
KEY FEATURES
- 2x macro-fluorescence objective with ultra-long working distance of 19.8–21.0 mm
- Excellent fluorescence performance for B, G, and UV (365nm) excitation
- High UV transmittance at 340nm and NIR transmittance at 700–1000nm
- Semi-apochromat (Fluorite) optical design — made in Japan to Olympus standards
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Magnification | 2x |
| Numerical Aperture (NA) | 0.14 |
| Working Distance (WD) | 19.8–21.0 mm |
| Immersion Medium | Air (Water |
| Objective Type | Semi-apochromat (Fluorite) |
| Field Number | 22 |
| Parfocal Distance | 65 mm |
| Back Focal Plane (BFP) | 35.6 mm |
| Mounting Thread | M34x1 |
| UV Transmittance (340nm) | Yes |
| NIR Transmittance (700–1000nm) | Yes |
| Fluorescence B & G excitation | Excellent |
| Fluorescence UV 365nm | Excellent |
Microscope Compatibility
| Olympus macro-fluorescence systems (M34x1 mounting thread) | |
| 65mm parfocal distance systems |
Typical Applications
Wide-field macro-fluorescence imaging of large biological specimens
Live animal and whole-organ fluorescence imaging
UV-excited fluorescence microscopy at 340nm and 365nm
NIR fluorescence imaging (700–1000nm transmittance)
Low-magnification survey imaging of thick tissue sections
