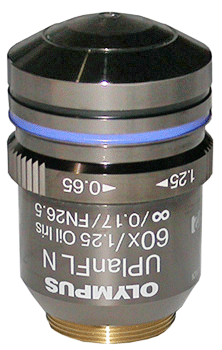

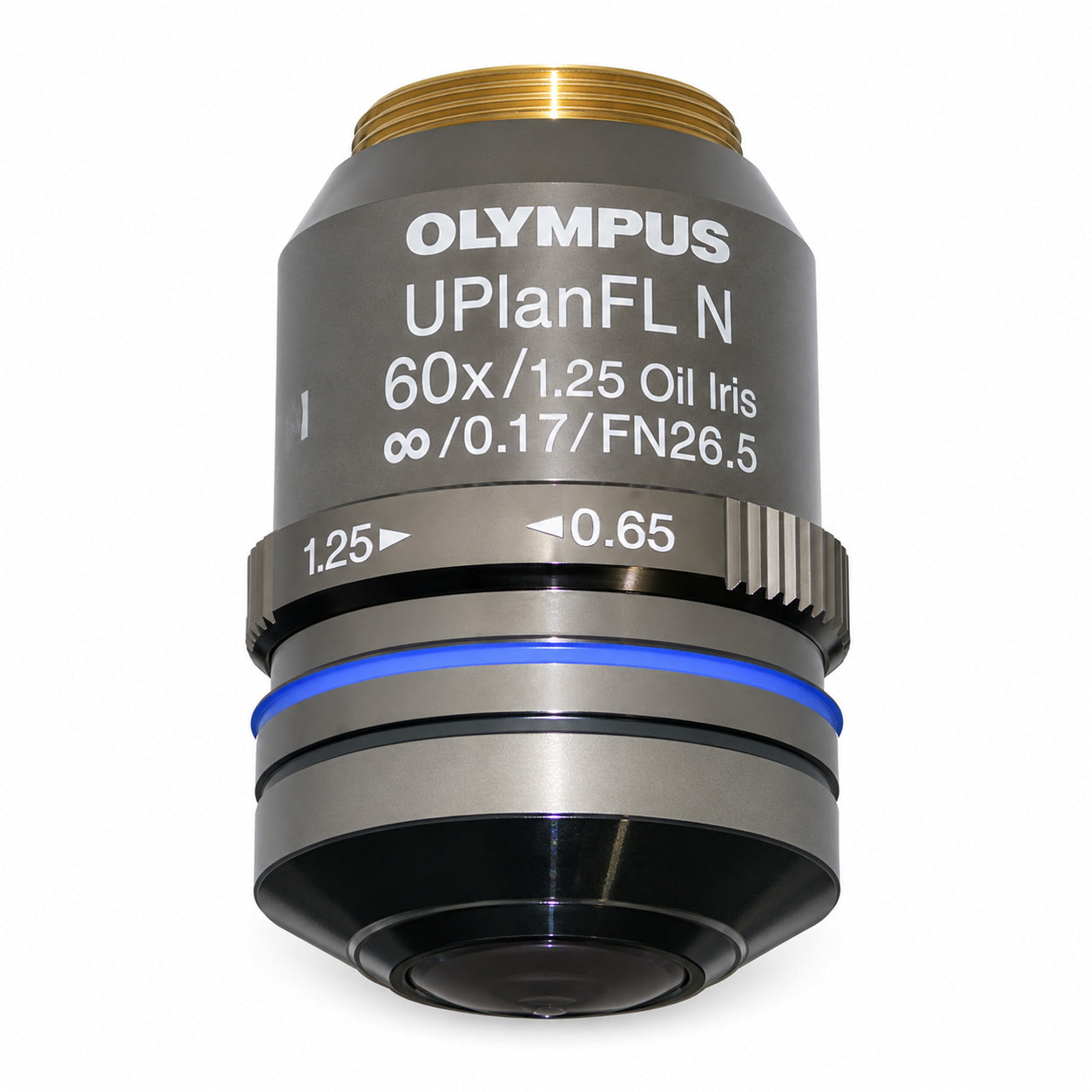

Olympus UPlanFL N 60X Objective | 1.25 NA Oil, Infinity Corrected

Olympus UPlanFL N 60× Oil Immersion Objective with Correction Collar

🔬 60× magnification, NA 1.25 (oil)
⚙️ Correction collar for coverslip thickness adjustment
📏 Working distance: 0.12 mm
📦 Catalog Number: N5703300
🔧 Standard RMS thread
🆕 Excellent with Flawless Optics
🎓 University purchase orders accepted

🔧 Product Description

The Olympus UPlanFL N 60× oil immersion objective is a premium plan fluorite lens designed for high-resolution imaging in fluorescence and brightfield microscopy. With 60× magnification and a numerical aperture of 1.25, this objective delivers exceptional resolution and contrast for detailed cellular and subcellular imaging. The plan fluorite optical design provides superior chromatic correction and flat field performance across the entire field of view, essential for quantitative imaging and digital documentation. The integrated correction collar allows precise compensation for coverslip thickness variations (0.11–0.23 mm), ensuring optimal image quality across different specimen preparations. Oil immersion operation maximizes light-gathering capability and resolution, while the infinity-corrected optical system ensures compatibility with modern Olympus microscope platforms and intermediate optical components. The UPlanFL series is specifically optimized for fluorescence applications, featuring high transmission and low autofluorescence for sensitive multi-channel imaging.

🔎 Typical Applications

• High-resolution fluorescence microscopy and immunofluorescence
• Confocal and super-resolution imaging
• Live-cell imaging and subcellular localization studies
• Histology and tissue section analysis
• Brightfield and phase contrast microscopy

📊 Key Specifications

University purchase orders accepted. Contact us for institutional pricing and delivery options.
