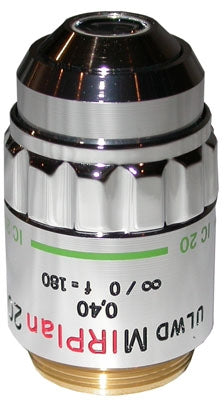

Olympus ULWD MIRPLAN 20X IR Objective
Regular price
$1,500.00
Sale price
$1,500.00
Regular price
$3,300.00
save $1,800.00

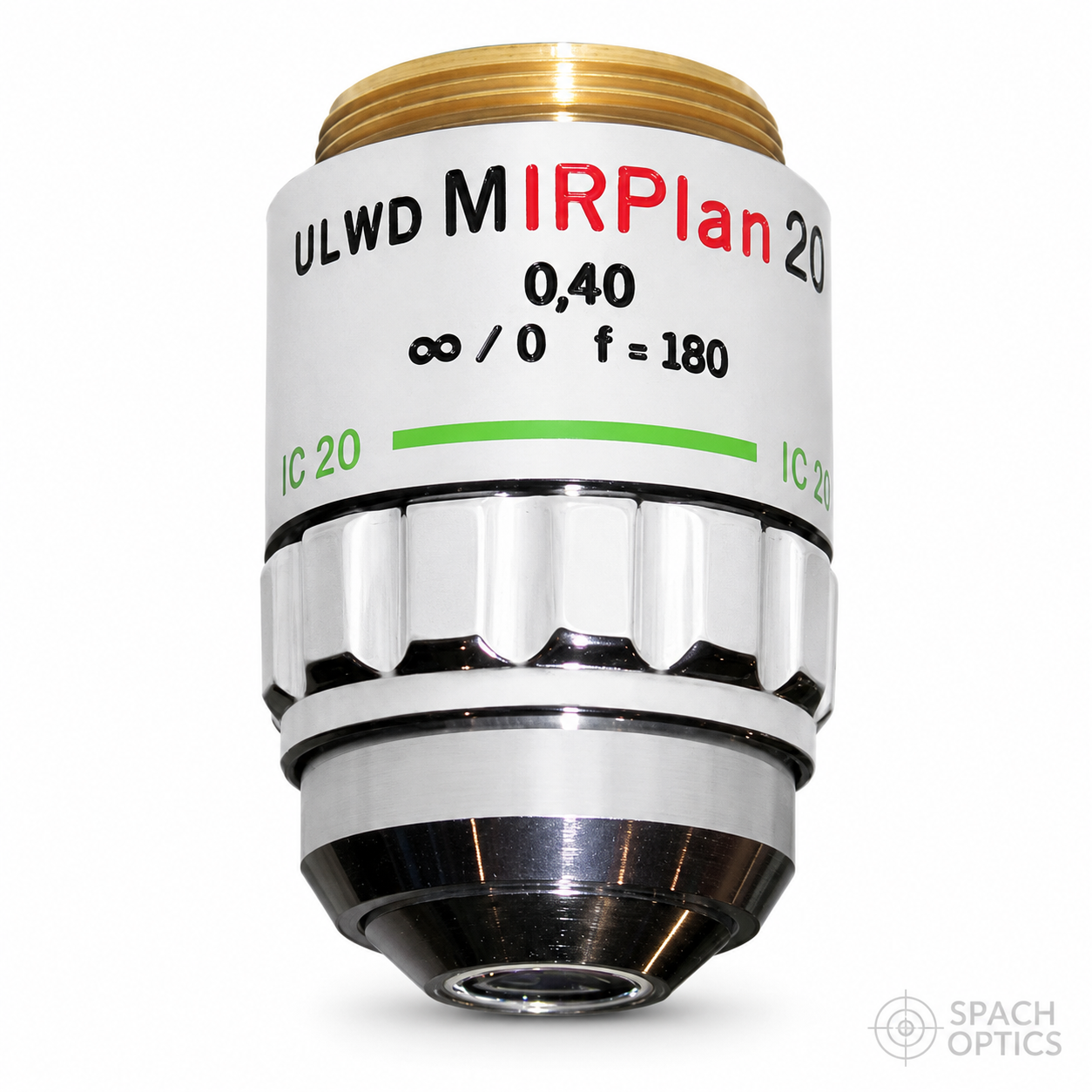

Olympus ULWD MIRPlan 20x IR Reflected Light Objective — RMS thread, 8.1 mm WD, NA 0.40, NIR corrected, Part No. 1-LM546i, excellent condition.
KEY FEATURES
- 20x Magnification
- Infrared (IR) / NIR Corrected — Visible to Near-Infrared
- Ultra-Long Working Distance (8.1 mm)
- Numerical Aperture: 0.40
- RMS Thread Mount
- Semi-Apochromat (MIRPlan) Correction
- Infinity Corrected
- Excellent Condition — Like New
- Part No. 1-LM546i
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Magnification | 20x |
| Numerical Aperture (NA) | 0.40 |
| Working Distance | 8.1 mm (Ultra Long) |
| Thread | RMS |
| Spectral Optimization | Infrared (IR) / Near-Infrared (NIR) |
| Optical Correction | Semi-Apochromat (MIRPlan) |
| Tube Length | Infinity (∞) |
| Part Number | 1-LM546i |
| Country of Origin | Japan |
Microscope Compatibility
| Olympus BH2 Series Reflected Light Microscopes | |
| Olympus BX Series Industrial Microscopes | |
| Olympus MX Series Semiconductor Inspection Microscopes | |
| Any RMS-thread Olympus reflected light vertical illuminator | |
| NIR and femtosecond laser micromachining systems with Olympus reflected light stands |
Typical Applications
Near-infrared femtosecond and Nd:YAG laser micromachining with wide field of view
NIR laser beam targeting and process setup on tall or packaged specimens
Laser processing of semiconductor wafers, thin films, and precision materials at 20x
Coaxial visible and NIR light monitoring of laser processing areas
Replacement or upgrade of 20x ULWD IR objectives on Olympus BH2, BX, and MX systems
