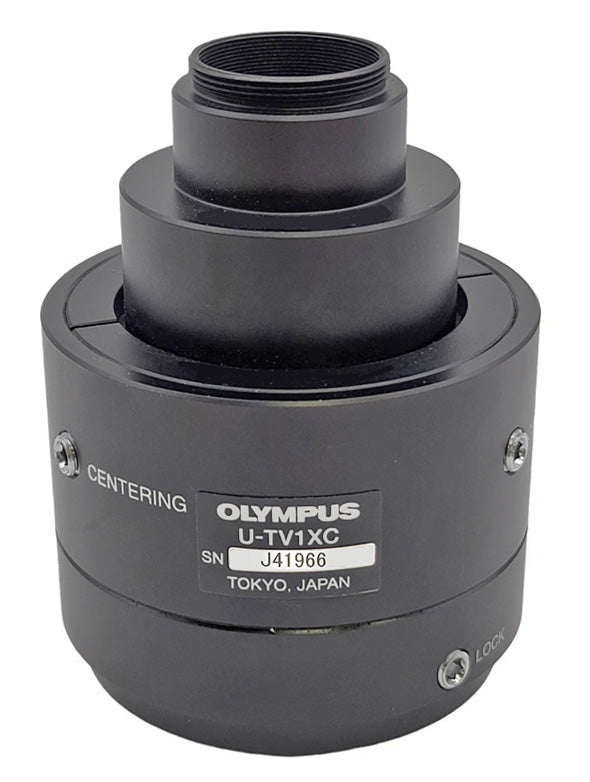

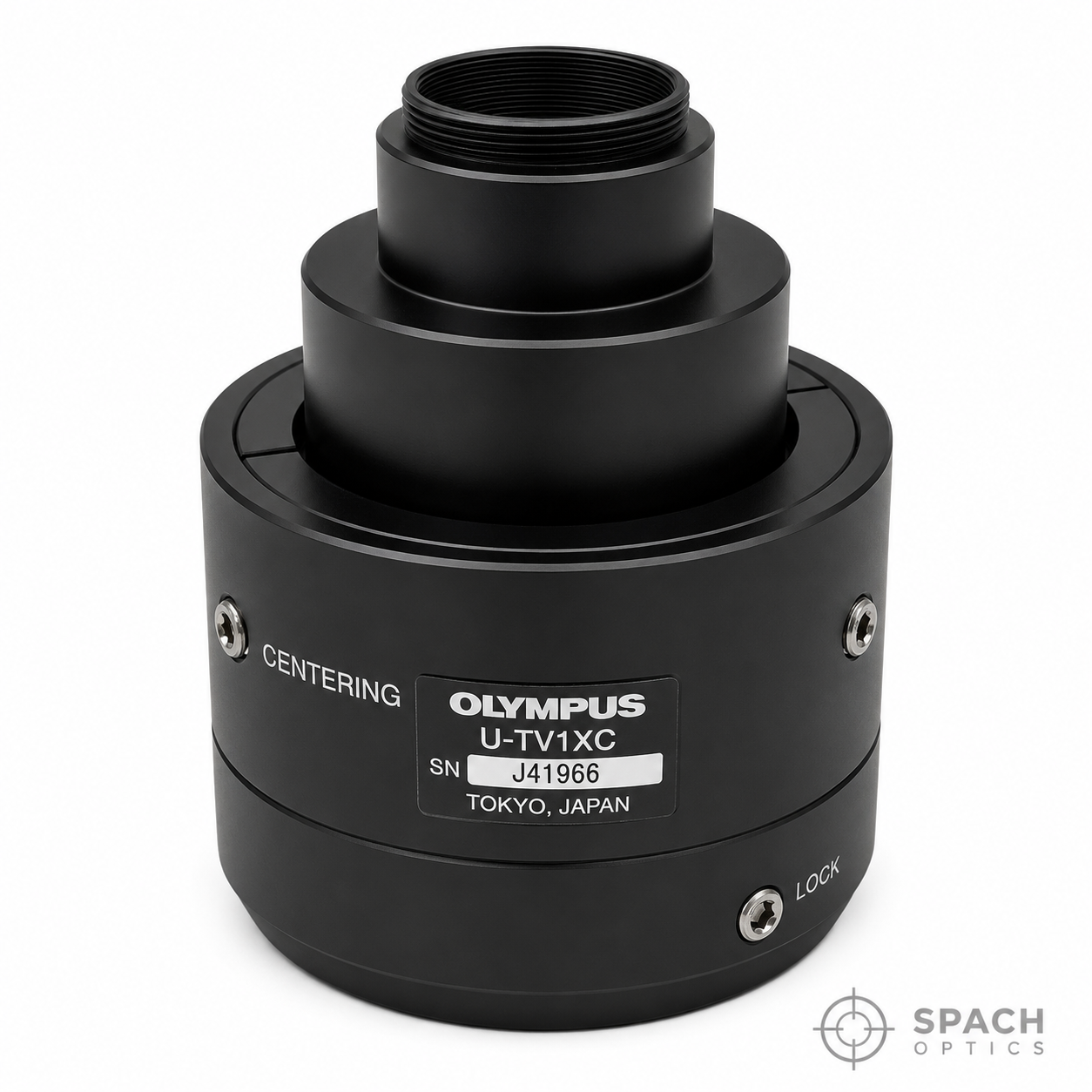

Olympus U-TV1XC C-Mount Camera Adapter, Centerable

The Olympus U-TV1XC Centerable C-Mount Camera Adapter is a precision mechanical component designed to connect C-mount cameras to Olympus microscope systems with the added capability of X-Y centering adjustment. This unique feature enables precise alignment of the camera sensor with the optical axis, ensuring optimal image positioning, uniform illumination, and maximum image quality.

X-Y centering adjustment is the key feature that distinguishes this adapter from standard camera adapters. The precision adjustment controls allow you to move the camera sensor in the X and Y directions to perfectly center the image on the sensor. This is essential for correcting minor misalignments, compensating for manufacturing tolerances, optimizing image positioning for specific camera sensors, and ensuring that the field of view is properly centered for critical imaging applications.

The 1× magnification provides direct image projection from the microscope to the camera sensor without any optical magnification or reduction. This delivers the maximum possible field of view for your camera sensor and ensures maximum light transmission since there are no additional optical elements in the light path. The direct image design also minimizes potential sources of aberration and maintains the highest possible image quality.

No optical elements in the adapter means the light path is direct from the microscope to the camera. This design maximizes light transmission efficiency, which is particularly valuable for low-light applications such as fluorescence microscopy where every photon counts. The absence of additional optics also eliminates potential sources of aberration, reflections, and image degradation.

Universal compatibility with Olympus BX, CX, IX, and SZX series microscopes makes this adapter versatile across multiple microscope platforms. Whether you're working with upright research microscopes (BX), routine laboratory microscopes (CX), inverted microscopes (IX), or stereo microscopes (SZX), the U-TV1XC provides the centering capability needed for optimal camera integration.

The standard C-mount interface provides compatibility with C-mount cameras including scientific cameras, industrial cameras, and consumer cameras with C-mount adapters. The C-mount thread (1 inch-32 TPI) ensures secure mechanical connection while the centering mechanism allows fine-tuning of the camera position after mounting.

Precision Japanese manufacturing ensures smooth, accurate centering adjustments and reliable mechanical performance. The robust construction provides long-term stability in demanding research and production environments where precise camera alignment and optimal image quality are essential.
