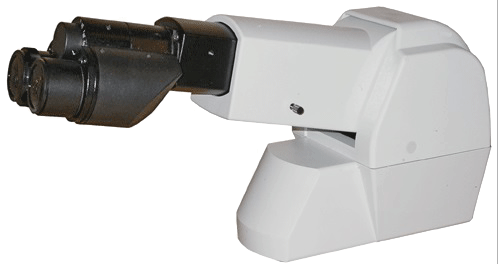

Olympus U-TTBI Tilting Telescoping Ergonomic Microscope Head

The Olympus U-TTBI tilting and telescoping ergonomic binocular head is the premium observation head solution for Olympus BX series microscopes, designed to address the musculoskeletal strain associated with prolonged microscope use in clinical, pathology, and research settings. Unlike standard fixed-angle binocular heads, the U-TTBI allows the eyetube angle to be tilted to match the user’s natural head and neck position — eliminating the need to bend forward or crane the neck to reach a fixed eyepiece height. The telescoping mechanism independently adjusts the eyetube height, accommodating users of different statures and allowing the microscope to be used at a wider range of bench heights without compromising posture. Together, these adjustments significantly reduce neck, shoulder, and back fatigue during extended observation sessions — a critical consideration in high-throughput pathology labs, clinical facilities, and research environments where microscopists spend hours at the instrument. The U-TTBI mounts directly to all Olympus BX series stands and accepts standard 30mm Olympus eyepieces. Supplied as a genuine Olympus OEM component (part no. N2166700 / 3-U141EC) in new condition.
