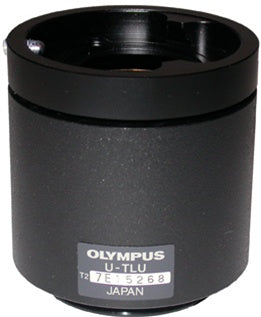

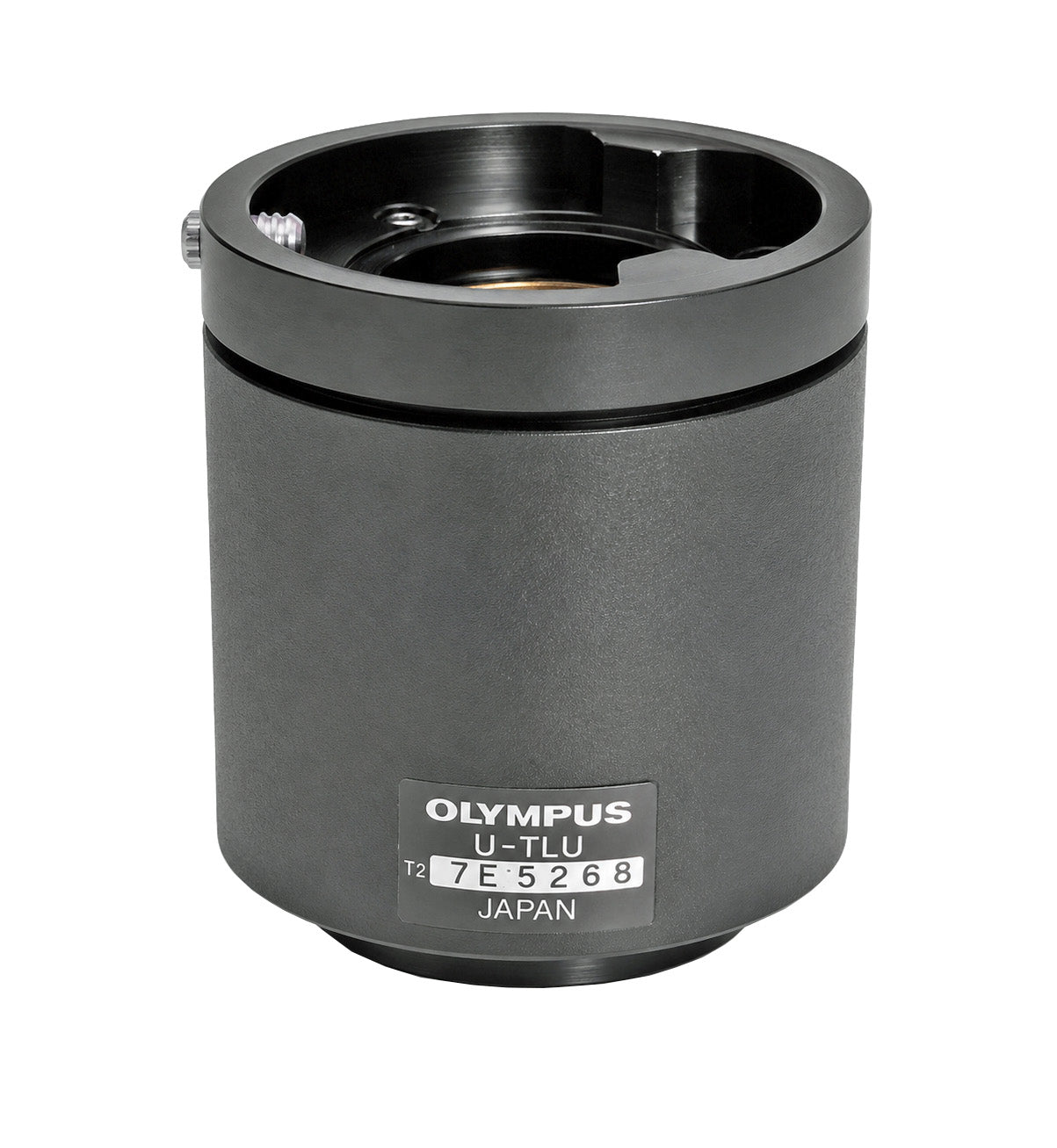

Olympus U-TLU Single Port Tube Lens, 180mm Focal Length

The Olympus U-TLU is a single port tube lens unit for Olympus CX, BX, and IX series microscopes, enabling a C-mount camera to be connected directly to the microscope body without requiring a trinocular or binocular observation head. The U-TLU attaches to the microscope in place of the observation head, providing a single camera output port with an integrated 180mm focal length tube lens — the correct tube lens focal length for the Olympus UIS2 infinity-corrected optical system used in BX and IX series microscopes. This makes the U-TLU ideal for dedicated camera-only microscope configurations where eyepiece observation is not required — for example, automated imaging systems, machine vision setups, or camera-only documentation stations where a full observation head would be unnecessary. The U-TLU accepts all standard Olympus C-mount camera adapters including the 0.35x, 0.5x, 0.63x, and 1x reduction/unity adapters, allowing the field of view and magnification on the camera sensor to be optimized for the application. Compatible with CX, BX, and IX series microscopes. Built to Olympus factory specifications (catalog number 3-U840EC). New / open box condition at a significant discount from the list price.
