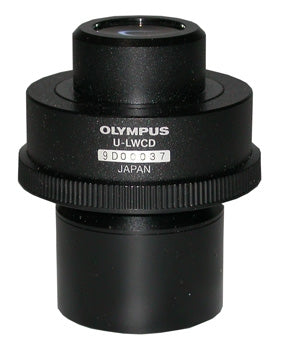

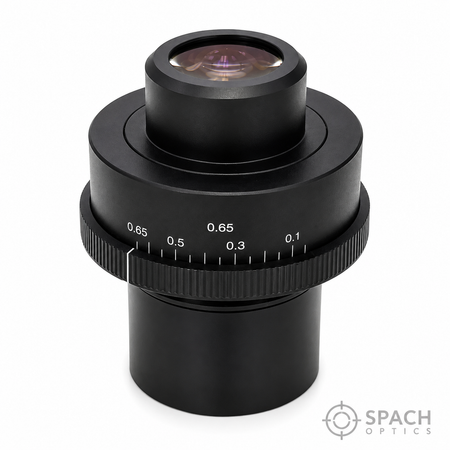

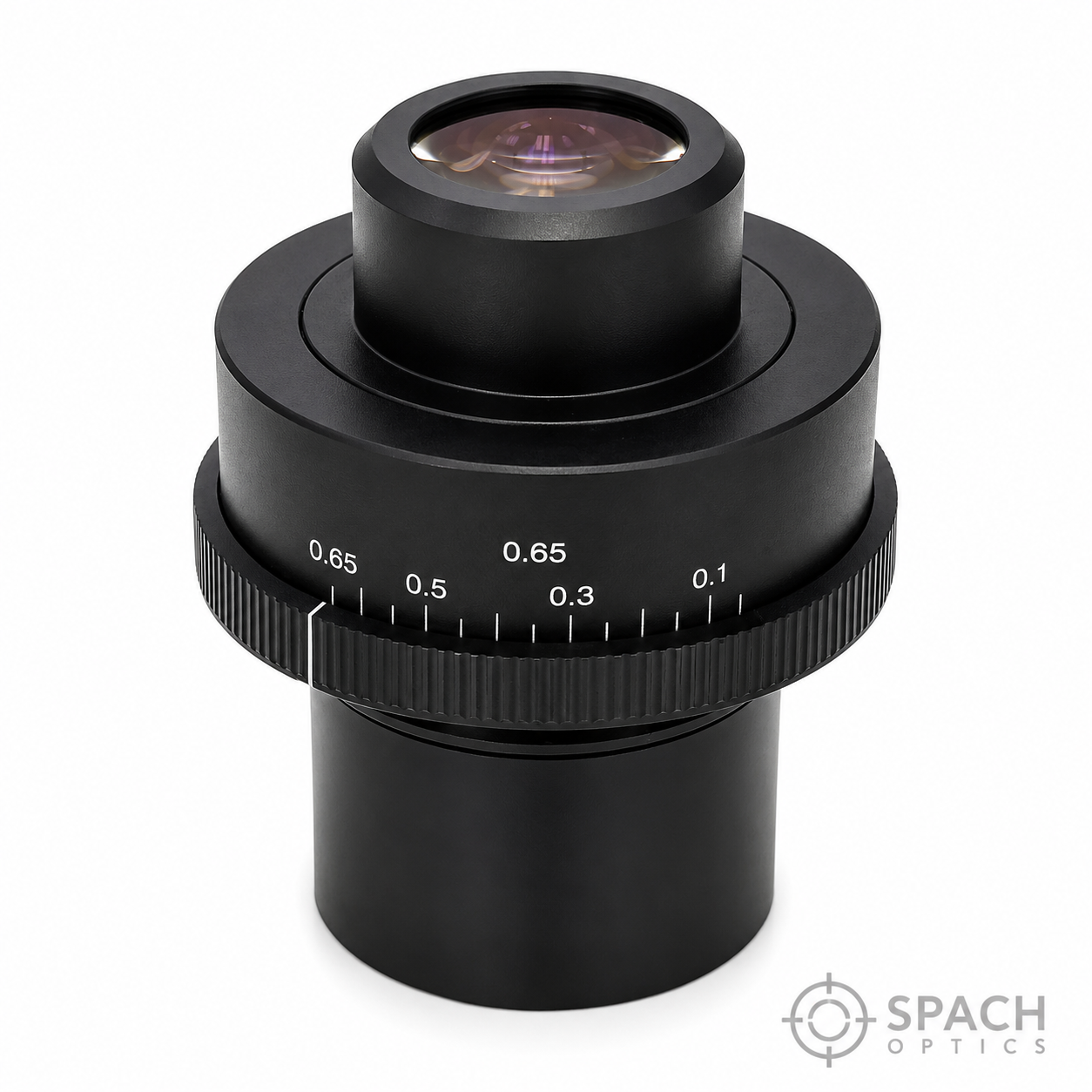

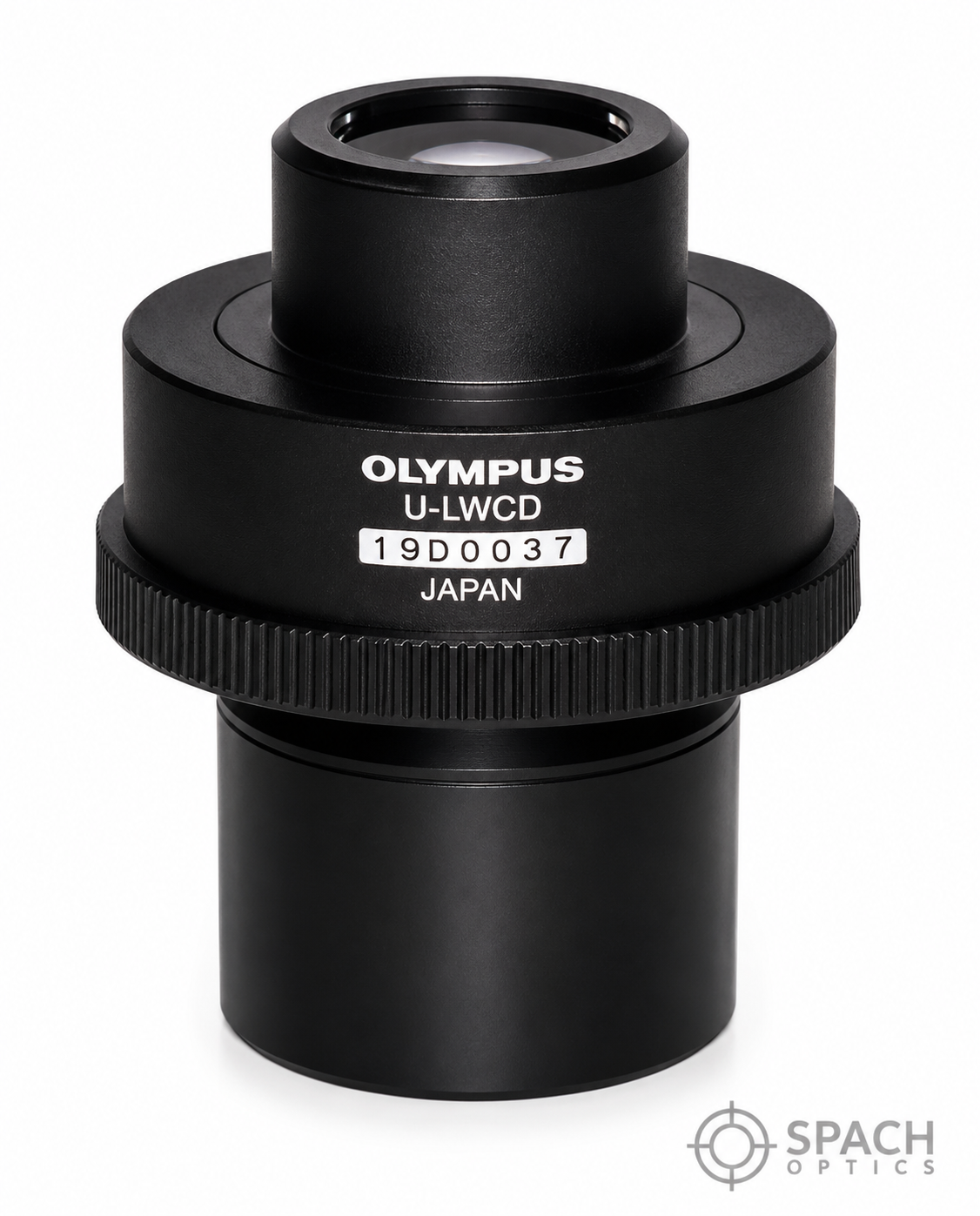

Olympus U-LWCD Long Working Distance Condenser

The Olympus U-LWCD is a long working distance condenser for Olympus BX, IX, and MX series upright microscopes, providing a 12mm working distance between the condenser front lens and the specimen with a numerical aperture of 0.65. Standard condensers typically have working distances of 1–2mm, limiting their use to thin specimens on standard glass slides. The U-LWCD’s 12mm working distance provides the clearance needed to accommodate thick substrates, multi-well plates, culture dishes, flasks, and other non-standard specimen holders that cannot fit under a standard condenser — while still delivering the NA 0.65 performance needed for phase contrast, DIC, and high-quality brightfield Köhler illumination. At NA 0.65, the U-LWCD supports phase contrast observation with medium and high NA objectives and provides sufficient condenser aperture for DIC on BX and MX series platforms. Built to Olympus factory specifications (catalog number 6-U190). This unit is in excellent condition at a significant discount from the list price.
