Olympus U-DPTS Modular Dual Camera Adapter 3-U806

🔬 Olympus U-DPTS modular dual camera port kit — complete 4-component assembly for dual camera output on trinocular microscopes
⚡ Dual camera ports — enables two cameras to be mounted simultaneously via the trinocular observation tube
🎯 Complete kit — includes U-DPTS dual port, U-PMDPTS photo tube, U-PMTVC 0.3x C-mount relay lens adapter, and PE2.5x photo projection eyepiece
🏭 Olympus OEM components — guaranteed fit and optical performance across compatible trinocular systems
✅ SKU U-DPTS / Cat. 3-U806 — excellent condition, significant savings vs. list price of $4,800

🔧 Product Description

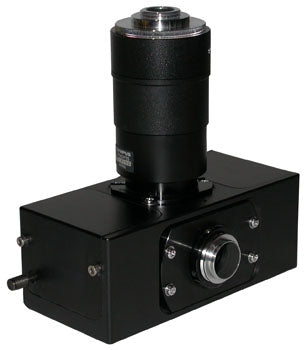

The Olympus U-DPTS is a modular dual camera port system designed for use with Olympus trinocular observation tubes, enabling two cameras to be connected simultaneously to a single microscope. This listing includes the complete four-component kit: the U-DPTS modular dual port base (catalog 3-U806), which mounts on the trinocular port and splits the optical path to two camera outputs; the U-PMDPTS photo tube (catalog 3-U807), which provides the optical tube for one of the camera channels; the U-PMTVC camera adapter with 0.3x relay lens and C-mount (catalog U-V210), which interfaces a C-mount camera to the photo tube with a 0.3x magnification reduction for a wider field of view on the camera sensor; and the PE2.5x photo projection eyepiece (catalog 2-U720), which provides 2.5x projection magnification for the second camera channel. Together, these components form a complete modular dual camera documentation system that can be configured for simultaneous two-camera acquisition, different magnification outputs on each channel, or a combination of imaging and documentation workflows. This unit is in excellent condition at a significant discount from the list price.

🔎 Typical Applications

• Simultaneous dual-camera documentation — two cameras capturing different fields, magnifications, or modalities at the same time
• Overview and detail imaging — wide-field camera (0.3x relay) and high-magnification camera (PE2.5x eyepiece) on the same microscope
• Teaching and demonstration — one camera feeds a display while the second records or captures still images
• Multi-modal documentation — color camera on one port, monochrome or scientific camera on the other
• Upgrade path for trinocular microscopes requiring dual camera output without replacing the observation head

📊 Key Specifications
