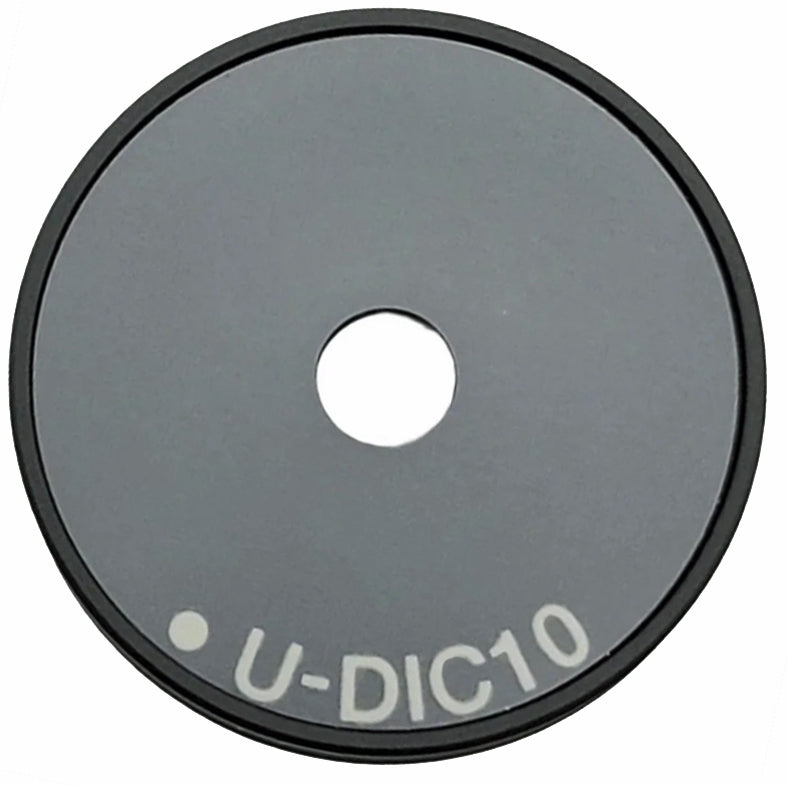

Olympus U-DIC10 DIC Nomarski Prism for U-UCD8 Universal Condenser

The Olympus U-DIC10 is a genuine OEM transmitted light DIC (Differential Interference Contrast) Nomarski condenser prism matched for 10x objectives, designed for use with the Olympus U-UCD8 Universal Condenser on BX and IX series microscopes — enabling DIC contrast imaging at low magnification for tissue survey, embryology, and large specimen overview workflows.

• 🔬 DIC condenser prism for 10x objectives — Nomarski prism precisely matched for 10x objectives in the U-UCD8 condenser system
• ⚙️ U-UCD8 Universal Condenser compatible — slots directly into the U-UCD8 condenser prism slider position
• 🌈 Low-magnification DIC imaging — provides DIC contrast for wide-field tissue survey and large specimen overview
• 🏭 Genuine Olympus OEM — part no. N1505900, made in Japan, new condition
• 🎓 University purchase orders accepted

🔧 Product Description

The Olympus U-DIC10 is a transmitted light Nomarski DIC prism specifically matched to 10x objectives for use in the Olympus U-UCD8 Universal Condenser. In DIC microscopy, the condenser prism must be precisely matched to the objective magnification and NA to produce the correct wavefront shear for optimal contrast — the U-DIC10 is the correct prism for 10x objectives in this condenser system. When paired with the appropriate objective-side DIC slider and polarizers, the U-DIC10 enables full transmitted light DIC imaging at low magnification, producing pseudo-three-dimensional contrast across a wide field of view. This is particularly valuable for tissue architecture survey, embryo and organoid imaging, and any application where DIC contrast is needed at the lowest magnification before stepping up to higher power objectives. The U-UCD8 Universal Condenser accepts a full range of DIC prisms for different objective magnifications, and the U-DIC10 is the low-magnification entry point in this set. As a genuine Olympus OEM component (part no. N1505900) manufactured in Japan and supplied in new condition, it delivers the optical precision required for reproducible DIC imaging.

🔎 Typical Applications

• Low-magnification DIC survey imaging of tissue sections and large specimens at 10x
• Embryo, organoid, and whole-mount specimen imaging with DIC contrast
• Wide-field DIC overview before stepping up to 20x, 40x, or higher magnifications
• Developmental biology and histology workflows requiring DIC at low magnification
• Replacement of missing or damaged U-DIC10 prisms in U-UCD8 condenser DIC sets

📊 Key Specifications

University and institutional customers are welcome to submit purchase orders. Please contact us for net terms and procurement documentation.
