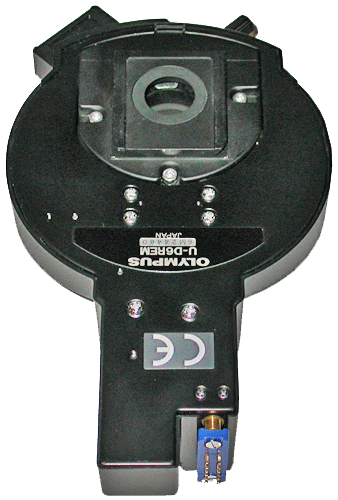

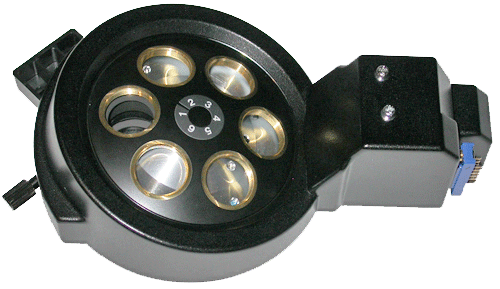

Olympus U-D6REM Motorized Nosepiece

The Olympus U-D6REM is a 6-position motorized revolving nosepiece for Olympus BX and MX series upright microscopes, enabling software- or controller-driven automated objective selection. Unlike manual or coded nosepieces, the U-D6REM uses an integrated motor to rotate the nosepiece to any of its six objective positions on command — allowing the microscope control software or the BX-UCB universal controller to switch objectives automatically as part of a programmed imaging sequence, multi-magnification workflow, or autofocus routine. This is essential for automated microscopy applications including multi-dimensional imaging (Z-stacks, time-lapse, multi-position), high-content screening, and any workflow where objective changes must occur without operator intervention. The nosepiece accepts standard RMS thread objectives and integrates with the Olympus BX and MX series motorized microscope control ecosystem. Built to Olympus factory specifications (catalog number U-R156M5), the U-D6REM delivers precise, repeatable motorized objective positioning. This unit is in excellent condition at a significant discount from the list price.
