Olympus SZX16 Fluorescence Stereo Microscope | UV, GFP & Red Filter Sets | SZX16-FL

Only 1 left

SKU: SZX16-FL

$24,500.00
$24,500.00 $52,500.00 save $28,000.00

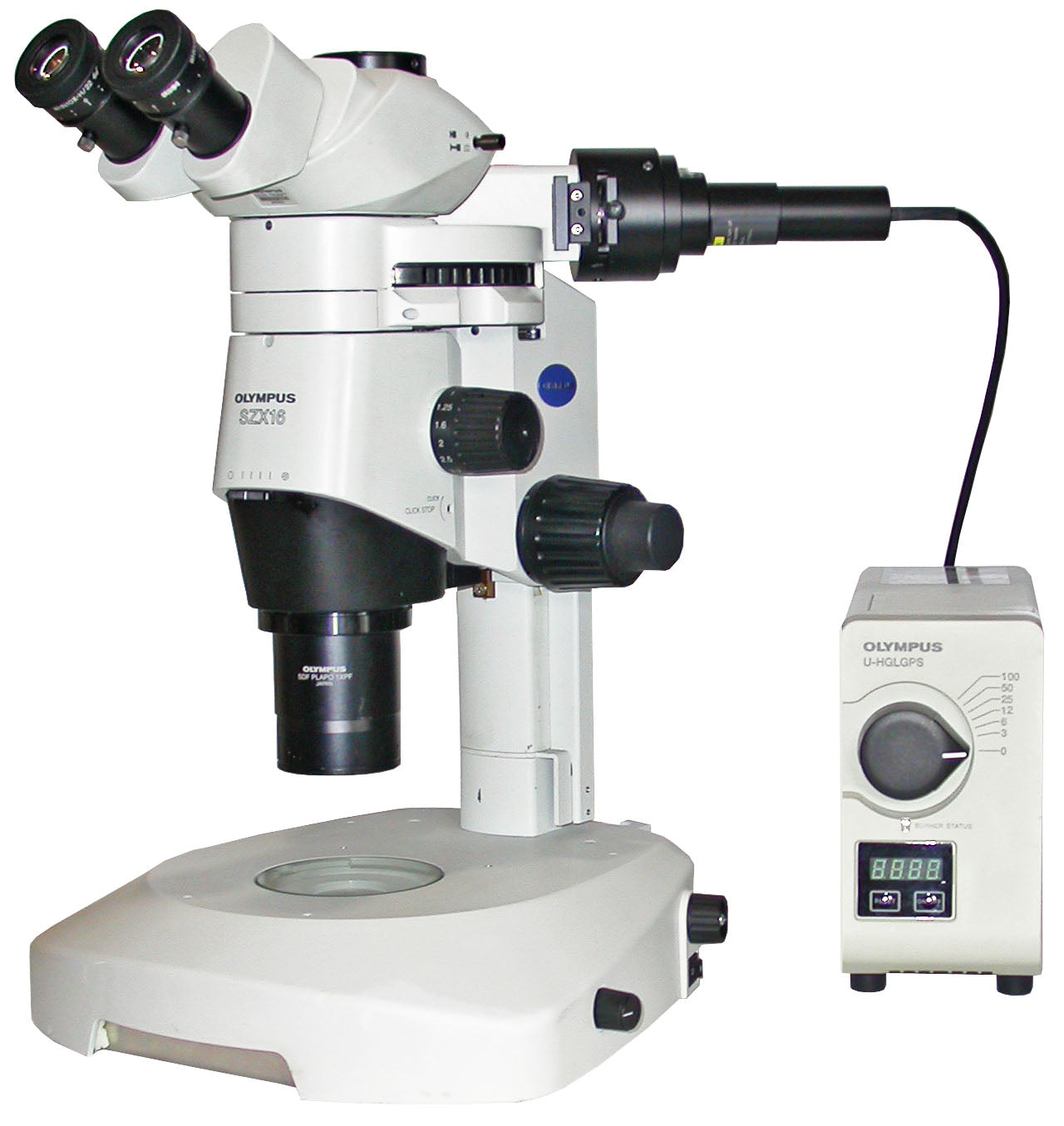

Olympus SZX16 Fluorescence Stereo Microscope — SZX16-FL — a fully configured, research-grade fluorescence stereo zoom microscope system with 5-position fluorescence illuminator, mercury light source, liquid light guide, three filter sets (UV, GFP, Red), transmitted light base, and trinocular head — ready for advanced multi-channel fluorescence imaging.

KEY FEATURES

  • 16.4:1 zoom ratio — seamless macro-to-micro fluorescence imaging
  • SZX2-ZB16 stereo zoom body
  • SDF PLAPO 1X PF Plan Apochromat objective — superior flatness, color correction & Super Depth of Focus
  • SZX2-RFA16 5-position fluorescence illuminator for multi-channel observation
  • U-HGLGPS fluorescence light source (mercury)
  • U-LLG150 liquid light guide & U-LLGAD adapter
  • Three filter sets included: UV, GFP, Red
  • SZX2-ILLK transmitted light base for brightfield & darkfield
  • SZX2-TR30 trinocular head — camera-ready
  • WHN 10X-H widefield adjustable eyepieces (diopter adjustable)
  • 0.3 numerical aperture — darkfield and polarization capable
  • Condition: Refurbished — Excellent
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus SZX16 Fluorescence Stereo Microscope is Olympus’s premier research stereo platform, configured here as a complete, multi-channel fluorescence system. The 16.4:1 zoom ratio and 0.3 NA deliver exceptional resolution and brightness across the full magnification range — from whole-organism overview to individual cell structures — making it the instrument of choice for developmental biology, neuroscience, and model organism fluorescence research. The SZX2-RFA16 5-position fluorescence illuminator, driven by the U-HGLGPS mercury light source via liquid light guide, provides bright, uniform epi-fluorescence illumination. Three filter sets (UV/DAPI, GFP/FITC, Red/TRITC) enable immediate multi-channel fluorescence imaging straight out of the box. The SZX2-ILLK transmitted light base adds brightfield and darkfield capability for versatile multi-modal workflows. The SZX2-TR30 trinocular head is camera-ready for digital documentation and image capture. This system is refurbished and in excellent working condition.

Technical Specifications

Model SZX16 (SZX16-FL)
Zoom Body SZX2-ZB16
Zoom Ratio 16.4:1
Objective SDF PLAPO 1X PF (Plan Apochromat)
Numerical Aperture 0.3
Fluorescence Illuminator SZX2-RFA16 (5-position)
Light Source U-HGLGPS Mercury
Light Guide U-LLG150 + U-LLGAD Adapter
Filter Sets Included UV, GFP, Red
Transmitted Light Base SZX2-ILLK
Head SZX2-TR30 Trinocular
Eyepieces WHN 10X-H Widefield Adjustable
SKU SZX16-FL
Country of Origin Japan
Condition Refurbished — Excellent

Microscope Compatibility

Typical Applications

Multi-channel fluorescence imaging of whole organisms, embryos, and tissues
GFP, DAPI, and red fluorophore observation in developmental biology and neuroscience
Model organism research (zebrafish, Drosophila, C. elegans, mouse)
Fluorescence screening and live imaging workflows
Combined fluorescence and brightfield/darkfield observation
University and research laboratory use
