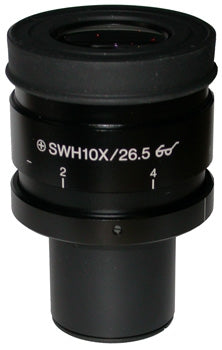

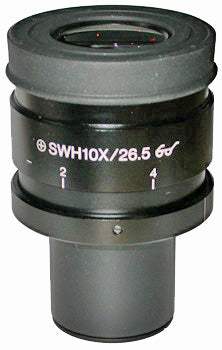

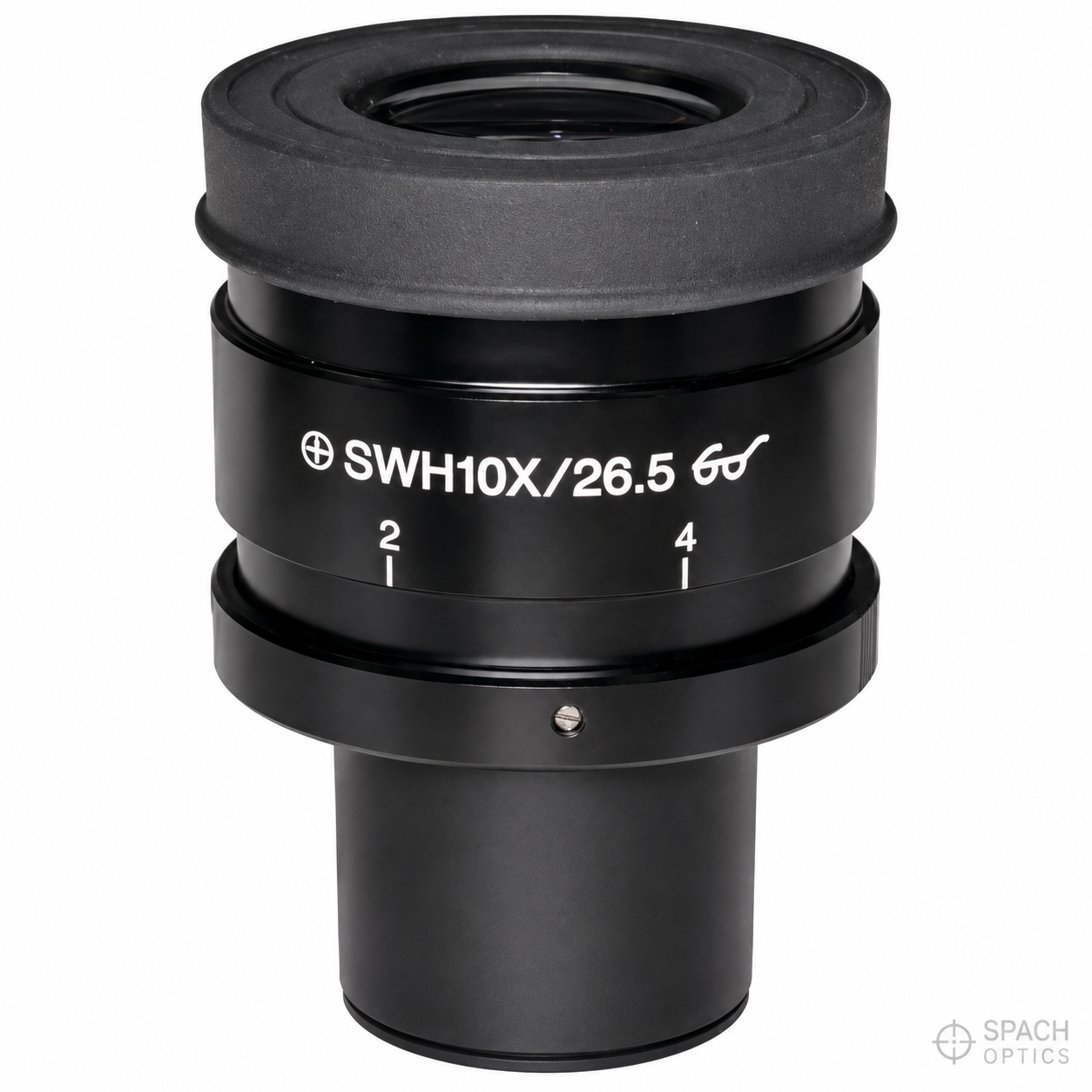

Olympus Super Widefield SWH 10x Eyepiece with Crosshair
Regular price
$695.00
The Olympus CROSS-SWH 10x is a genuine OEM super widefield 10x eyepiece with a built-in centered crosshair reticle, designed for Olympus BX and IX series microscopes with 30mm eyetubes — combining the maximum FN26.5 field of view of the SWH series with precise crosshair centering capability for measurement, alignment, and photomicrography workflows.
KEY FEATURES
- 10x super widefield with crosshair, FN 26.5 — the widest field available for BX/IX series, with a centered crosshair for precise specimen alignment
- 30mm eyetube diameter — fits all Olympus BX and IX series binocular and trinocular heads
- Reticle shelf — accepts 24mm x 1.5mm reticles for additional measurement or graticule applications
- Genuine Olympus OEM — part no. 2-U502, made in Japan, new condition
- University purchase orders accepted
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Manufacturer | Olympus |
| Model | CROSS-SWH 10x |
| Part Number | 2-U502 |
| Magnification | 10x |
| Field Number | 26.5 (Super Widefield) |
| Reticle | Centered Crosshair |
| Reticle Shelf | Yes — 24mm x 1.5mm |
| Eyetube Diameter | 30 mm |
| Compatible Systems | Olympus BX and IX Series (30mm eyetubes) |
| Country of Origin | Japan |
| Condition | New |
Microscope Compatibility
Typical Applications
Specimen centering and point-of-interest marking with maximum FN26.5 field coverage
Photomicrography setup requiring precise field centering before image capture
Stage calibration and optical axis alignment on Olympus BX and IX series systems
Pathology and histology screening combining wide-field scanning with crosshair reference
Measurement and coordinate referencing using the crosshair as a fixed reference point
