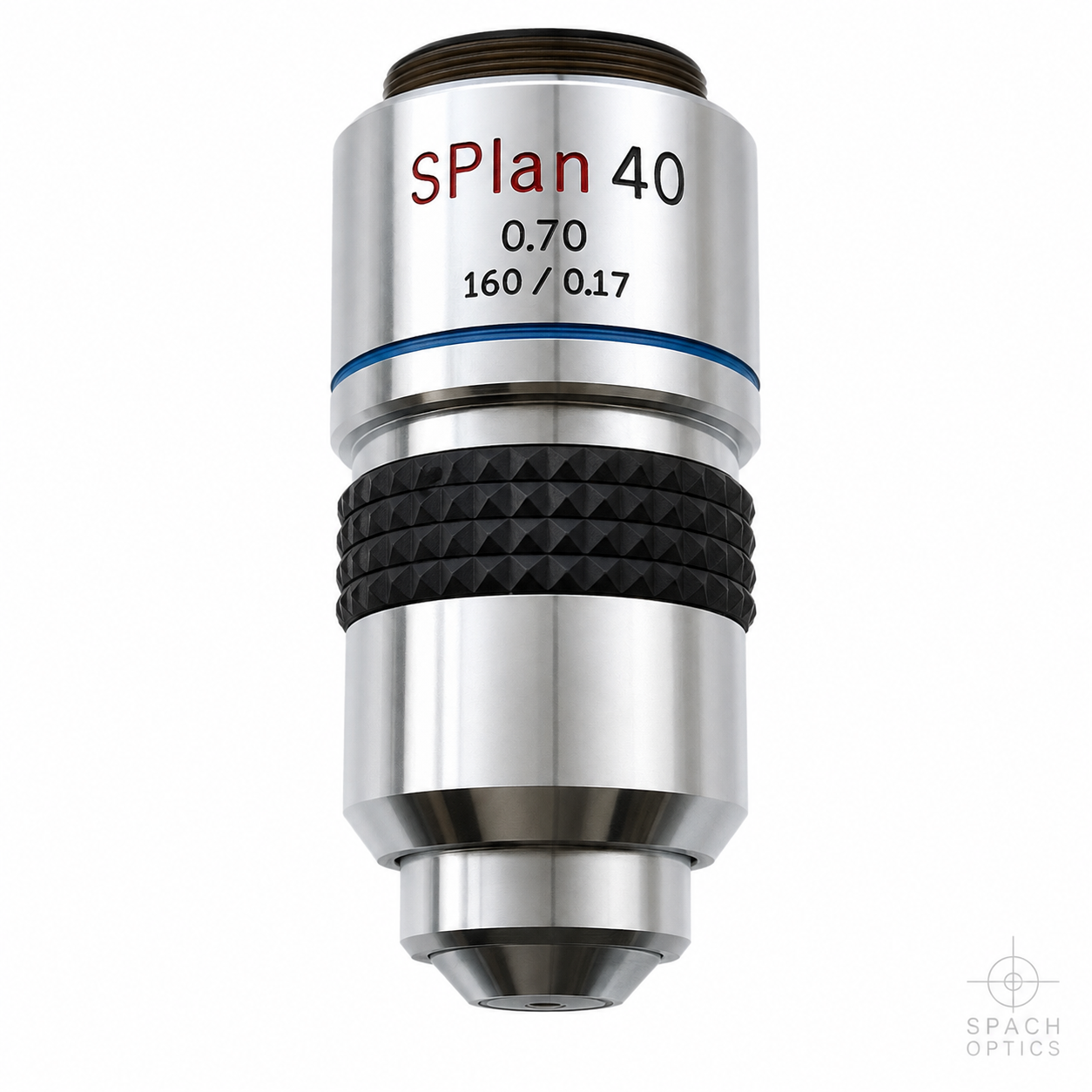

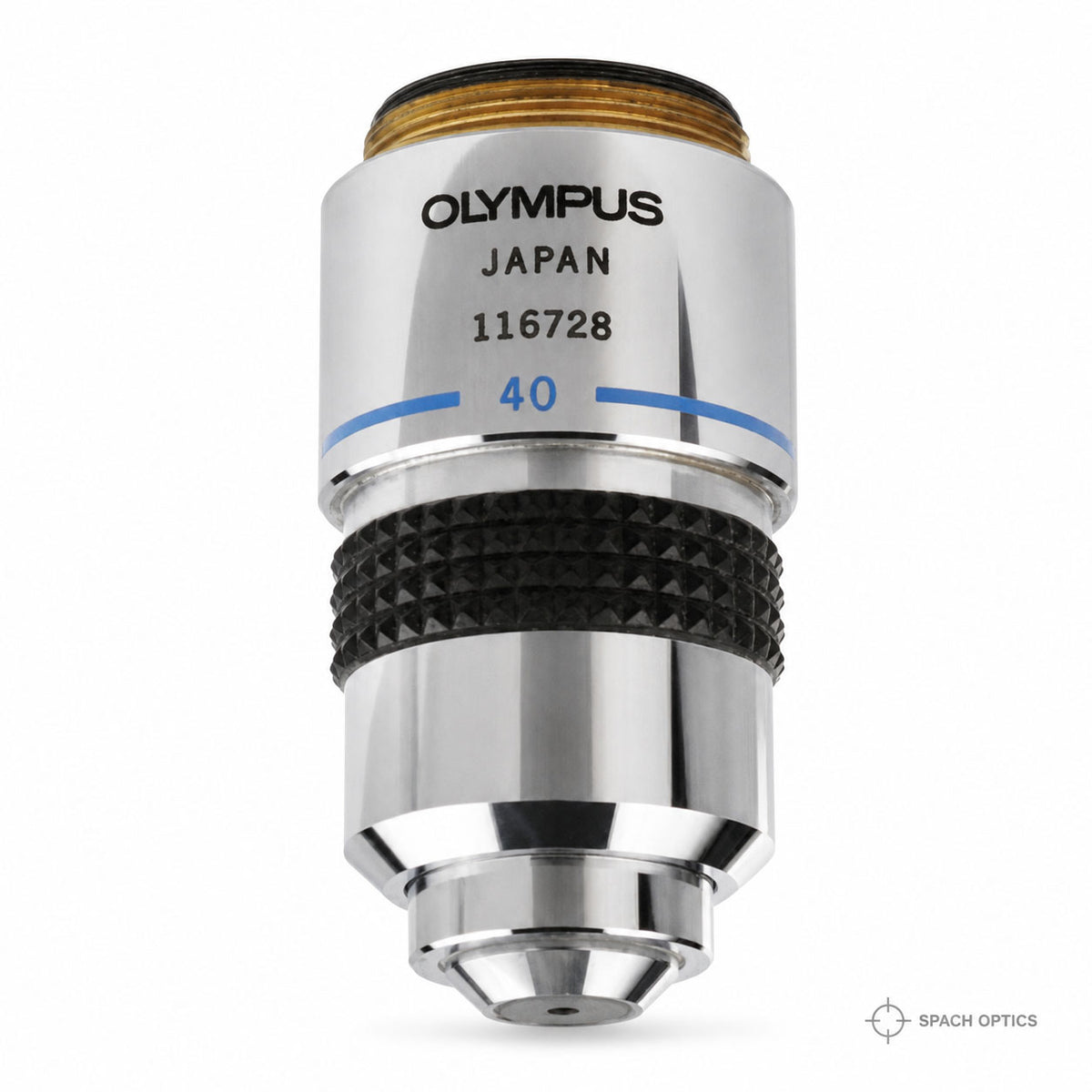

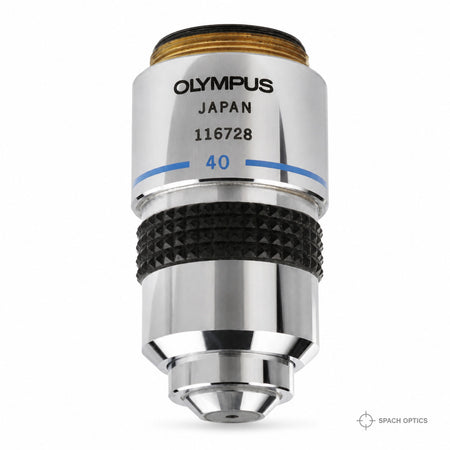

Olympus SPlan 40x Objective - 160mm Tube Length - BH2 Series

Only 1 left

SKU: 1-LB551

$795.00
$795.00 $1,395.00 save $600.00

KEY FEATURES

  • Olympus SPlan 40x/0.70 Semi-Plan achromat for BH2 series and 160mm RMS microscopes
  • NA 0.70 with 0.5mm working distance for strong light-gathering and flat-field imaging
  • Semi-Plan correction for a flat, uniformly sharp field with excellent color fidelity
  • New condition — made in Japan to Olympus SPlan standards
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus SPlan 40x (catalog number 1-LB551) is a Semi-Plan achromat objective designed for use with Olympus BH2 series microscopes using the 160mm finite tube length optical system. With a numerical aperture of 0.70 and a working distance of 0.5mm, it delivers strong resolution and light-gathering capability at 40x magnification for routine brightfield, histology, and cytology applications. The SPlan optical design provides a noticeably flatter and more uniformly sharp field compared to standard achromats, with excellent color fidelity across the visible spectrum.

Technical Specifications

Catalog Number 1-LB551
Magnification 40x
Numerical Aperture (NA) 0.70
Immersion Medium Dry
Working Distance (WD) 0.5 mm
Tube Length 160 mm (finite)
Objective Thread RMS
Compatible Microscopes Olympus BHT, BHTU, BHS, CHS, CHT
Condition New

Microscope Compatibility

Olympus BHT (160mm RMS thread)
Olympus BHTU (160mm RMS thread)
Olympus BHS (160mm RMS thread)
Olympus CHS (160mm RMS thread)
Olympus CHT (160mm RMS thread)
Other 160mm RMS-threaded microscope systems

Typical Applications

Histology and pathology slide review at 40x magnification
Cytology and hematology on Olympus BH2 series microscopes
Cell biology and tissue culture observation
Routine brightfield and phase contrast microscopy
Upgrading or replacing objectives on legacy 160mm tube length microscopes
