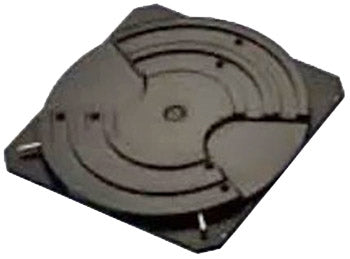

Olympus MX-WHPR86 Plate with Rotatable Wafer Holder
Olympus MX-WHPR86 Plate with Rotatable Wafer Holder

Olympus MX-WHPR86 Plate with Rotatable Wafer Holder

In stock

SKU: MX-WHPR86

$1,695.00

KEY FEATURES

  • Supports 6" and 8" wafers — versatile holder for the most common semiconductor wafer sizes
  • Rotatable wafer holder — allows precise angular orientation of the wafer during inspection
  • Includes base plate — complete assembly ready to mount on the MX-SIC8 stage
  • Designed for Olympus MX-SIC8 — seamless integration with the MX61/MX63 inspection system
  • Condition: New — genuine Olympus accessory
  • University purchase orders accepted
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus MX-WHPR86 is a precision wafer holder plate designed for use with the Olympus MX-SIC8 mechanical stage on MX61 and MX63 industrial inspection microscopes. It accommodates both 6-inch and 8-inch semiconductor wafers, covering the most widely used wafer sizes in production and research environments. The rotatable wafer holder allows the wafer to be precisely oriented angularly without repositioning the stage — critical for aligning die patterns, scribing lanes, or inspection grids to the optical axis. The complete assembly includes the base plate and rotatable holder, ready to mount directly onto the MX-SIC8 stage. New condition, manufactured in Japan to Olympus's exacting standards.

Technical Specifications

Model MX-WHPR86
Compatible Wafer Sizes 6 inch, 8 inch
Compatible Stage Olympus MX-SIC8
Compatible Microscopes Olympus MX61, MX63
Includes Base Plate, Rotatable Wafer Holder
Rotation Yes (rotatable holder)
Condition New
Weight 10 lbs
Country of Origin Japan

Microscope Compatibility

Typical Applications

Semiconductor wafer inspection and defect review (6" and 8" wafers)
Die pattern alignment and angular orientation during inspection
Scribing lane and edge inspection on production wafers
Photomask and reticle handling on MX-SIC8 stage
Research and QC workflows on Olympus MX61/MX63 systems
