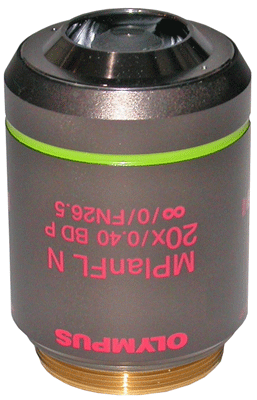

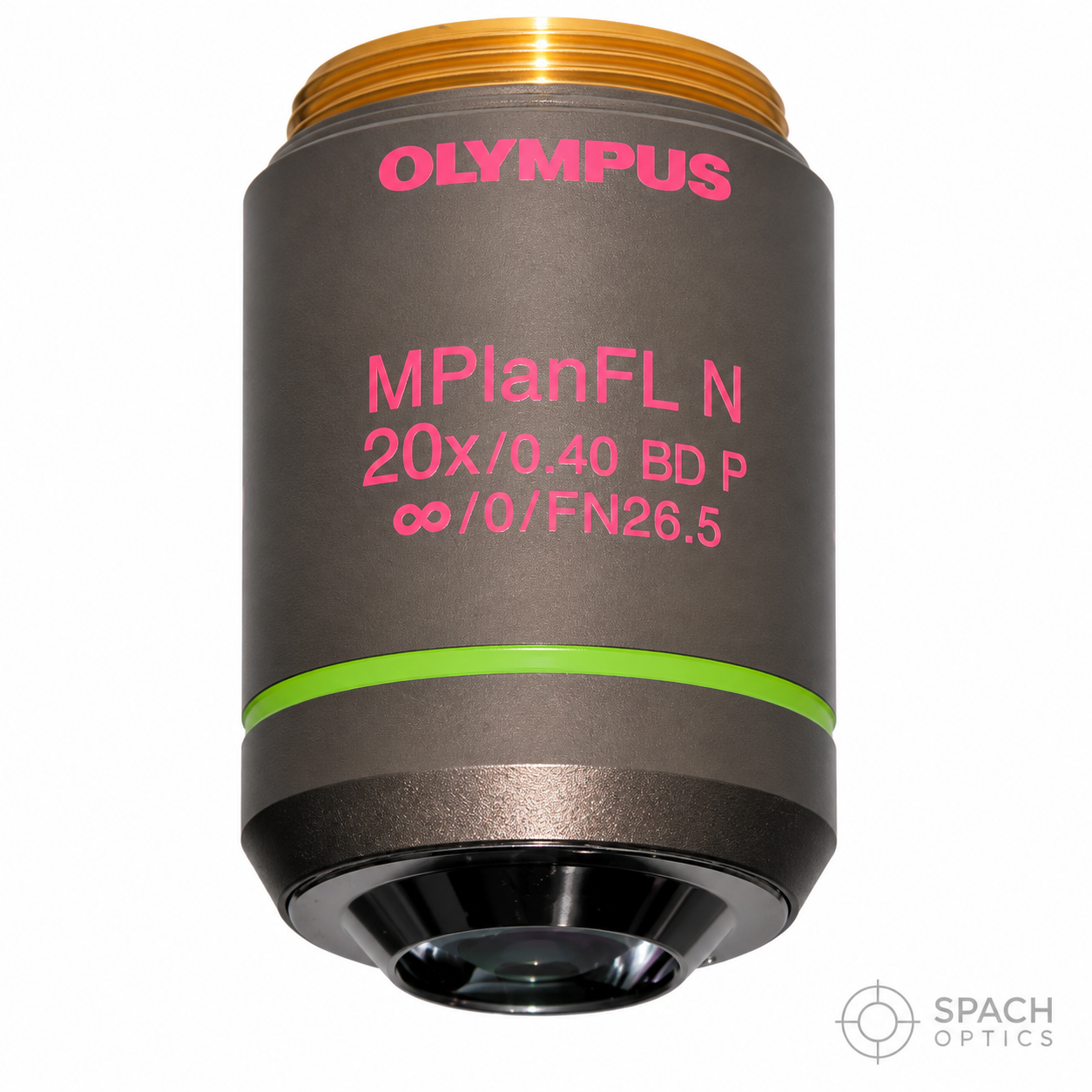

Olympus MPLFLN-BD 20X Pol Objective – Brightfield/Darkfield/Polarization

The Olympus MPLFLN-BD 20× Pol Objective is a versatile triple-mode semi-apochromatic lens engineered for comprehensive materials analysis. Combining brightfield, darkfield, and polarization capabilities in a single objective, this lens is an essential tool for metallography, materials science, semiconductor inspection, and quality control workflows requiring multiple contrast techniques.

Multi-modal microscopy enables complete sample characterization without changing objectives. Switch seamlessly between brightfield for general observation, darkfield for surface defect detection and scratch visualization, and polarization for analyzing crystalline structures, grain boundaries, stress patterns, and material orientation. This versatility makes the MPLFLN-BD Pol ideal for failure analysis and quality control where different contrast methods reveal complementary information about the same sample.

At 20× magnification with a numerical aperture of 0.45, this objective delivers excellent resolution and light-gathering capability for detailed observation of microstructures and surface features. The high NA provides superior performance compared to lower-aperture objectives, revealing fine details critical for materials characterization and defect analysis.

Darkfield microscopy is particularly powerful for surface inspection and quality control. By illuminating the sample at oblique angles and collecting only scattered light, darkfield reveals surface irregularities, scratches, contamination, and structural defects with exceptional contrast. Features that appear nearly invisible in brightfield become dramatically visible in darkfield, making this objective essential for semiconductor wafer inspection, precision machining quality control, and polished surface analysis.

Polarization capability adds another dimension to materials analysis. When used with polarizers, this objective enables the study of crystalline materials, grain structure, stress and strain patterns, and optical anisotropy. Polarized light microscopy is invaluable for metallography, mineralogy, polymer analysis, and any application where material orientation or crystalline structure affects properties and performance.

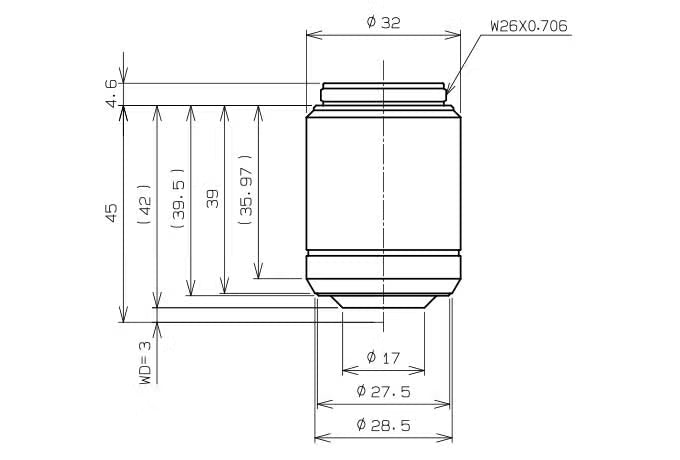

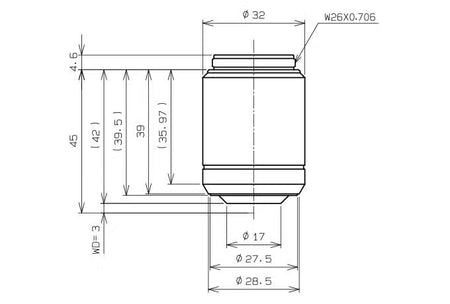

The MPLFLN optical design represents Olympus's semi-apochromatic plan fluorite technology, delivering flat-field imaging with superior color correction across the visible spectrum. This ensures sharp, high-contrast images from center to edge, critical for documentation and quantitative image analysis. With a working distance of 3.0 mm, this objective provides adequate clearance for most standard samples while maintaining high numerical aperture.

Designed for reflected light industrial microscopy, this objective features an M26 thread mount and is fully compatible with Olympus BX, GX, MX, and BHM series microscope systems. The robust construction and precision Japanese manufacturing ensure reliable performance in demanding industrial and research environments.
