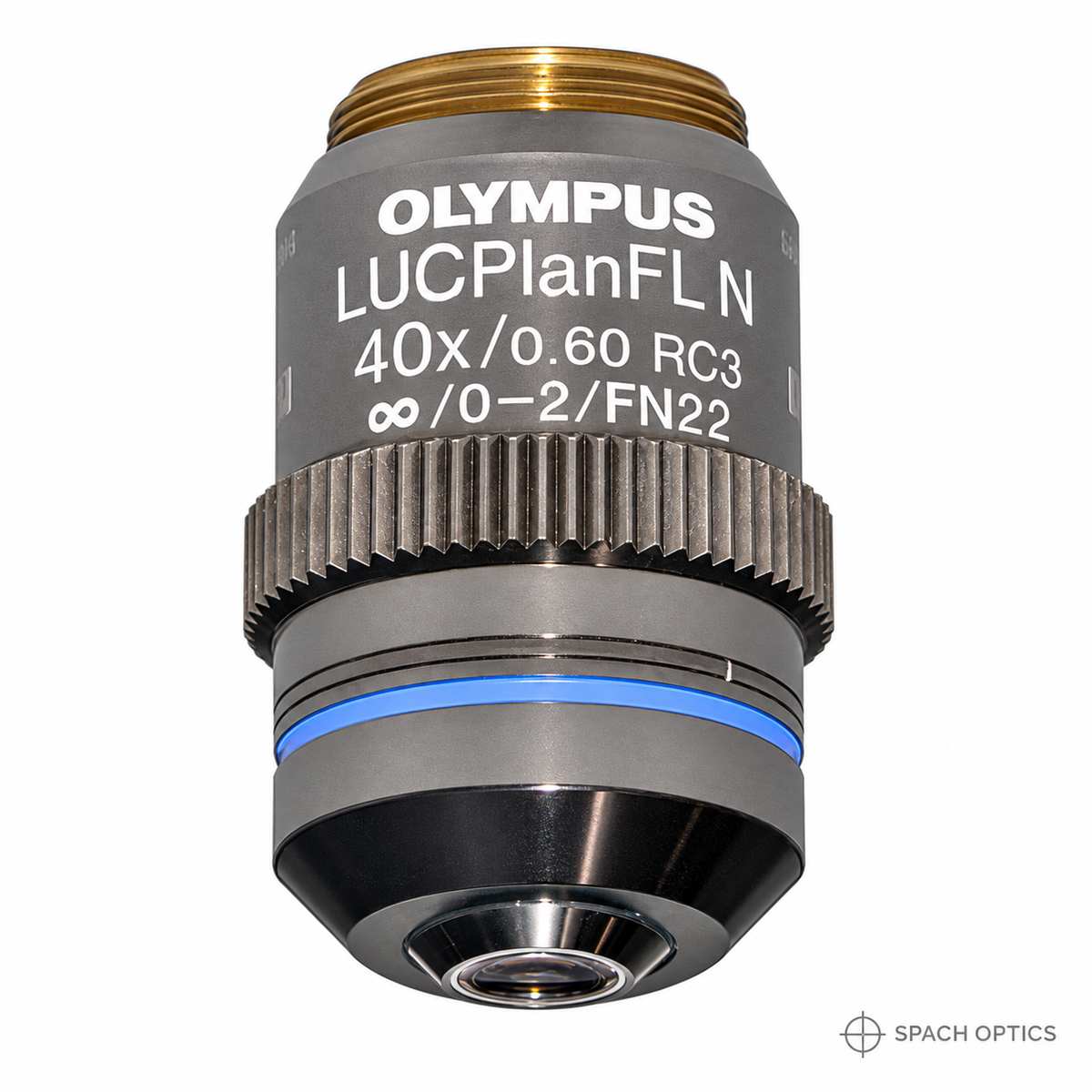

Olympus LUCPLANFL N 40x RC3 Relief Contrast Objective
SKU: N6433400
Regular price
$2,500.00
Sale price
$2,500.00
Regular price
$4,260.00
save $1,760.00
Olympus LUCPLANFL N 40x/0.60 RC3 relief contrast objective, N6433400, in excellent condition with flawless optics.
KEY FEATURES
- 40x RC3 relief contrast objective with 0.60 numerical aperture
- Semi-apochromat (fluorite) optical design
- 3.00โ4.20 mm working distance
- Correction collar; 0โ2.00 mm cover glass thickness range
- Air/dry immersion medium
- Excellent condition with flawless optics
Backed by Spach Optics Warranty
Secure Packaging & Reliable Delivery
People-Powered Support
Technical Specifications
| Brand | Olympus |
| Model | LUCPLANFL N 40x RC3 |
| Product number | N6433400 |
| Magnification | 40x |
| Contrast designation | RC3 relief contrast |
| Numerical aperture | 0.60 |
| Working distance | 3.00โ4.20 mm |
| Objective field number | 22 |
| Cover glass thickness | 0โ2.00 mm |
| Immersion medium | Air/dry |
| Correction collar | Yes |
| Objective type | Semi-apochromat (fluorite) |
| Parfocal distance | 45 mm |
| Back focal plane position | -18.9 mm |
| Mounting threads | W20.32 ร 0.706 (RMS) |
| Condition | Excellent; flawless optics |
Microscope Compatibility
| Mounting threads | W20.32 ร 0.706 (RMS) |
| Parfocal distance | 45 mm |
| Cover glass thickness range | 0โ2.00 mm |
Typical Applications
40x relief contrast microscopy with a compatible RC3 setup
Air/dry microscopy requiring a 3.00โ4.20 mm working distance
Observation through cover glass within the specified 0โ2.00 mm thickness range
