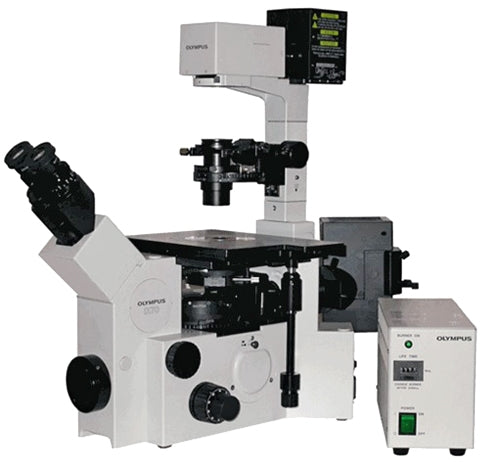

Olympus IX70 Inverted Tissue Culture Fluorescence Microscope

The Olympus IX70 is a fully configured inverted fluorescence and phase contrast microscope system for tissue culture, live-cell imaging, and multi-channel fluorescence applications — equipped with a complete objective set, three fluorescence filter cubes (FITC, TRITC, DAPI), 100W mercury epi-illumination, LWD phase contrast condenser, and dual camera ports for simultaneous imaging and observation.

• 🔬 Inverted fluorescence and phase contrast platform — ideal for live-cell, tissue culture, and multi-channel fluorescence imaging
• 🌈 Three fluorescence filter cubes — FITC (blue excitation/green emission), TRITC (green excitation/red emission), and DAPI (UV excitation/blue emission) in a 4-cube turret
• 💡 100W mercury epi-illumination — vertical fluorescence illuminator with 100W mercury lamphouse, bulb, and power supply included
• 🔦 LWD phase contrast condenser — turret condenser for phase contrast imaging through tissue culture vessels
• 📷 Dual camera ports — IX70 frame with two camera ports for simultaneous camera and observation configurations
• ✨ Excellent condition — fully functional, inspected system
• 🎓 University purchase orders accepted

🔧 System Configuration

This IX70 system is supplied as a complete, ready-to-use configuration including the following components:

Frame & Stand
• Olympus IX70 inverted microscope frame with 2 camera ports

Objectives (4-position nosepiece)
• UPlanFL 4x — low magnification survey and navigation
• UPlanFL 10x Phase Contrast — phase contrast at 10x for tissue culture monitoring
• LCPlanFL 20x LWD Phase Contrast — long working distance phase contrast for culture vessels
• LCPlanFL 40x LWD Phase Contrast with Correction Collar — high-magnification LWD phase contrast with coverslip correction

Fluorescence
• Vertical fluorescence illuminator
• 4-cube filter turret
• FITC filter cube (blue excitation / green emission)
• TRITC filter cube (green excitation / red emission)
• DAPI filter cube (UV excitation / blue emission)
• 100W mercury lamphouse with bulb
• 100W mercury power supply

Observation & Stage
• Binocular observation tube
• 10x widefield eyepieces
• IX-SFR mechanical stage with X & Y travel
• LWD phase contrast turret condenser
• 100W transmitted light arm with bulb

🔎 Typical Applications

• Live-cell and tissue culture monitoring in phase contrast at 10x, 20x, and 40x LWD
• Multi-channel fluorescence imaging using DAPI, FITC, and TRITC filter cubes
• Cell biology, developmental biology, and cancer research requiring inverted fluorescence microscopy
• Routine tissue culture QC and cell health monitoring in culture flasks and dishes
• Teaching and research labs requiring a complete, ready-to-use inverted fluorescence system

📊 Key Specifications

University and institutional customers are welcome to submit purchase orders. Please contact us for net terms and procurement documentation.
