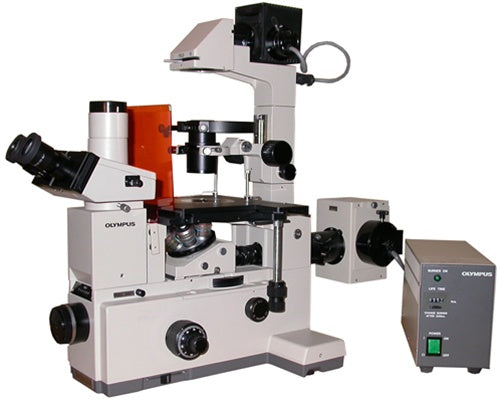

Olympus IMT2 Inverted Fluorescence Microscope

The Olympus IMT2 Inverted Fluorescence & Phase Contrast Tissue Culture Microscope is a fully configured classic inverted system offering exceptional value for live cell imaging, multicolor fluorescence, and routine tissue culture observation — with three camera ports for maximum imaging flexibility.

• 🔬 4x, 10x, 20x, and 40x phase contrast objectives including ULWD CDPlan LWD optics with correction collars on 20x and 40x
• 💡 100W mercury fluorescence illumination with vertical illuminator and two filter cubes: Blue and Green
• 📷 Three camera ports: side port on frame, front port on frame, and trinocular head camera port
• 🧫 ULWD condenser with phase inserts and 3-plate XY stage with right-hand controls
• 📺 3-position trinocular head for simultaneous observation and imaging
• ✅ Complete system — includes mercury bulb, halogen bulb, UV guard, instruction manual, power cords, and dust cover

🔧 Product Description

The Olympus IMT2 is one of the most cost-effective and capable inverted fluorescence microscopes available, offering a complete phase contrast and fluorescence platform at a fraction of the cost of newer systems. Its inverted design provides unrestricted access to living specimens in culture dishes, flasks, and multi-well plates. Four phase contrast objectives cover the full range of tissue culture workflows: the SPlan 4x and 10x for survey and routine monitoring, and ULWD CDPlan 20x and 40x long working distance objectives with correction collars for high-resolution imaging through thick culture vessels. The vertical fluorescence illuminator and 100W mercury lamphouse deliver reliable excitation intensity for Blue and Green fluorescence channels. Three camera ports — side and front ports on the frame plus the trinocular head camera port — provide exceptional flexibility for integrating cameras, video systems, or multiple imaging devices simultaneously. The 3-plate XY stage with right-hand controls and ULWD condenser with phase inserts accommodate standard culture vessels with ease. This system ships complete with all accessories and is ready for immediate use.

🔎 Typical Applications

• Live cell phase contrast and fluorescence imaging
• Tissue culture monitoring and cell health assessment
• Blue and Green channel fluorescence imaging (DAPI, GFP, FITC, TRITC-compatible)
• Multi-camera documentation and video microscopy
• Stem cell and primary cell culture observation
• Teaching and core facility fluorescence workflows

📊 Key Specifications

University and institutional purchase orders are welcome. Please contact us for invoicing and procurement documentation.
