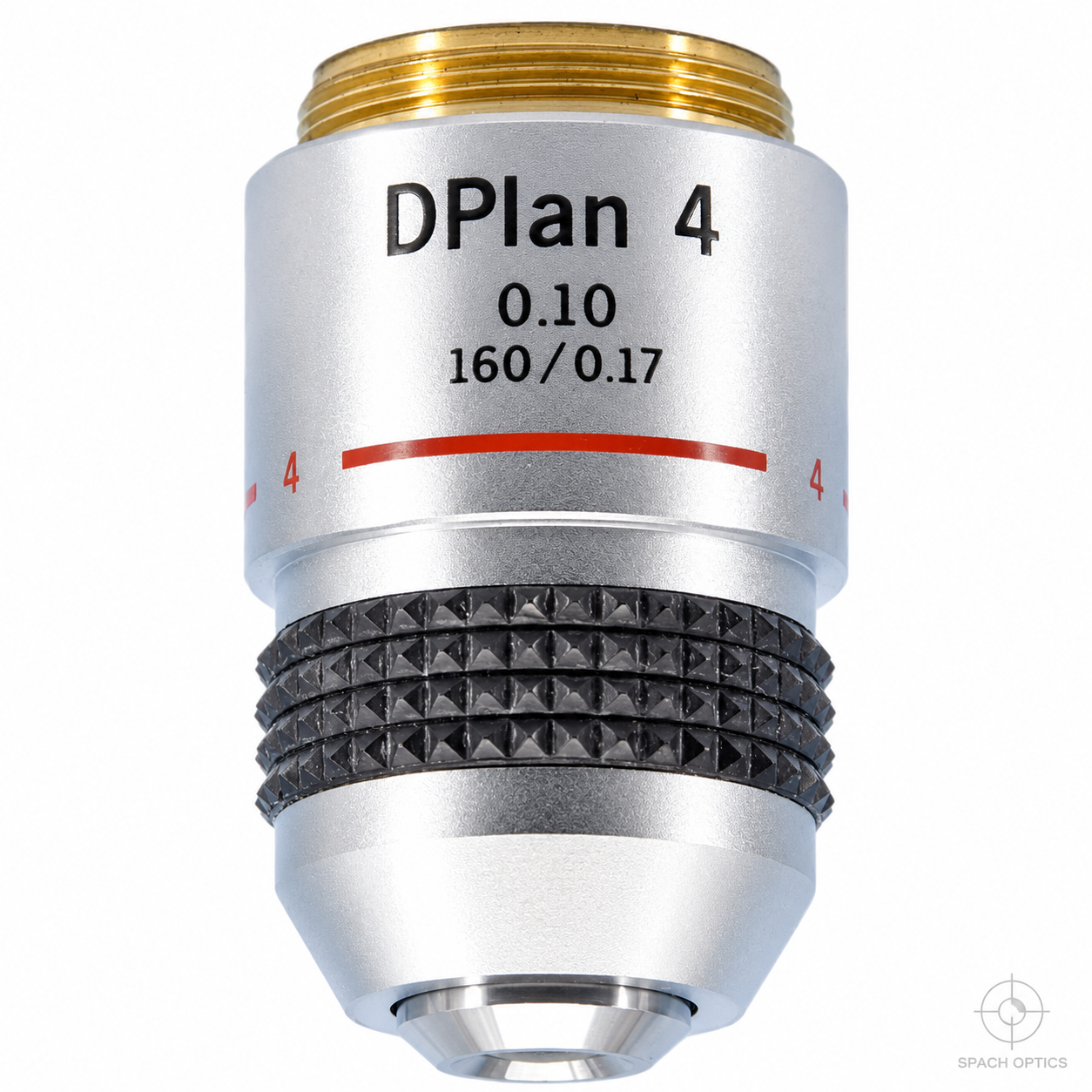

Olympus DPlan 4x Objective - 160mm Tube Length

In stock

SKU: 1-LB522

$125.00
$125.00 $245.00 save $120.00

KEY FEATURES

  • Olympus D Plan 4X achromat objective with NA 0.10 and 7mm working distance
  • Wide field of view for specimen orientation and slide scanning
  • RMS thread, 160mm tube length — fits BHT, BHTU, BHS, CHS, CHT and compatible systems
  • Excellent condition, flawless optics — made in Japan to Olympus D Plan standards
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus D Plan 4X objective (part number 1-LB522) is a low-power achromat designed for the Olympus BHT, BHTU, BHS, CHS, and CHT microscope series. At 4X, it provides the widest standard field of view in a typical nosepiece lineup — making it the go-to starting point for locating regions of interest on a slide before stepping up to higher magnifications. The D Plan designation indicates a standard achromat correction, delivering solid color and spherical aberration control for routine brightfield microscopy. With a numerical aperture of 0.10 and a working distance of 7mm, there is ample clearance between the objective front element and the coverslip.

Technical Specifications

Part Number 1-LB522
Series D Plan (Achromat)
Magnification 4X
Numerical Aperture (NA) 0.10
Working Distance (WD) 7 mm
Thread RMS
Tube Length 160 mm
Condition Excellent, flawless optics

Microscope Compatibility

Olympus BHT (160mm RMS thread)
Olympus BHTU (160mm RMS thread)
Olympus BHS (160mm RMS thread)
Olympus CHS (160mm RMS thread)
Olympus CHT (160mm RMS thread)
Other 160mm RMS-threaded microscope systems

Typical Applications

Initial slide scanning and region-of-interest location
Histology and pathology overview at low power
Tissue architecture assessment before higher-magnification examination
Education and routine brightfield microscopy
Replacement or spare 4X objective for BHT, BHS, CHS, or CHT systems
