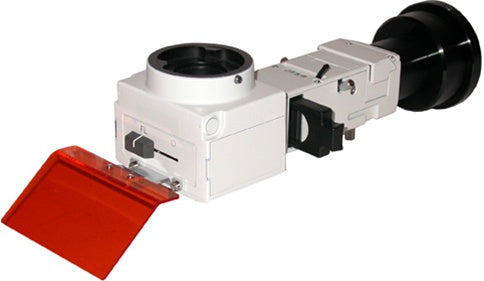

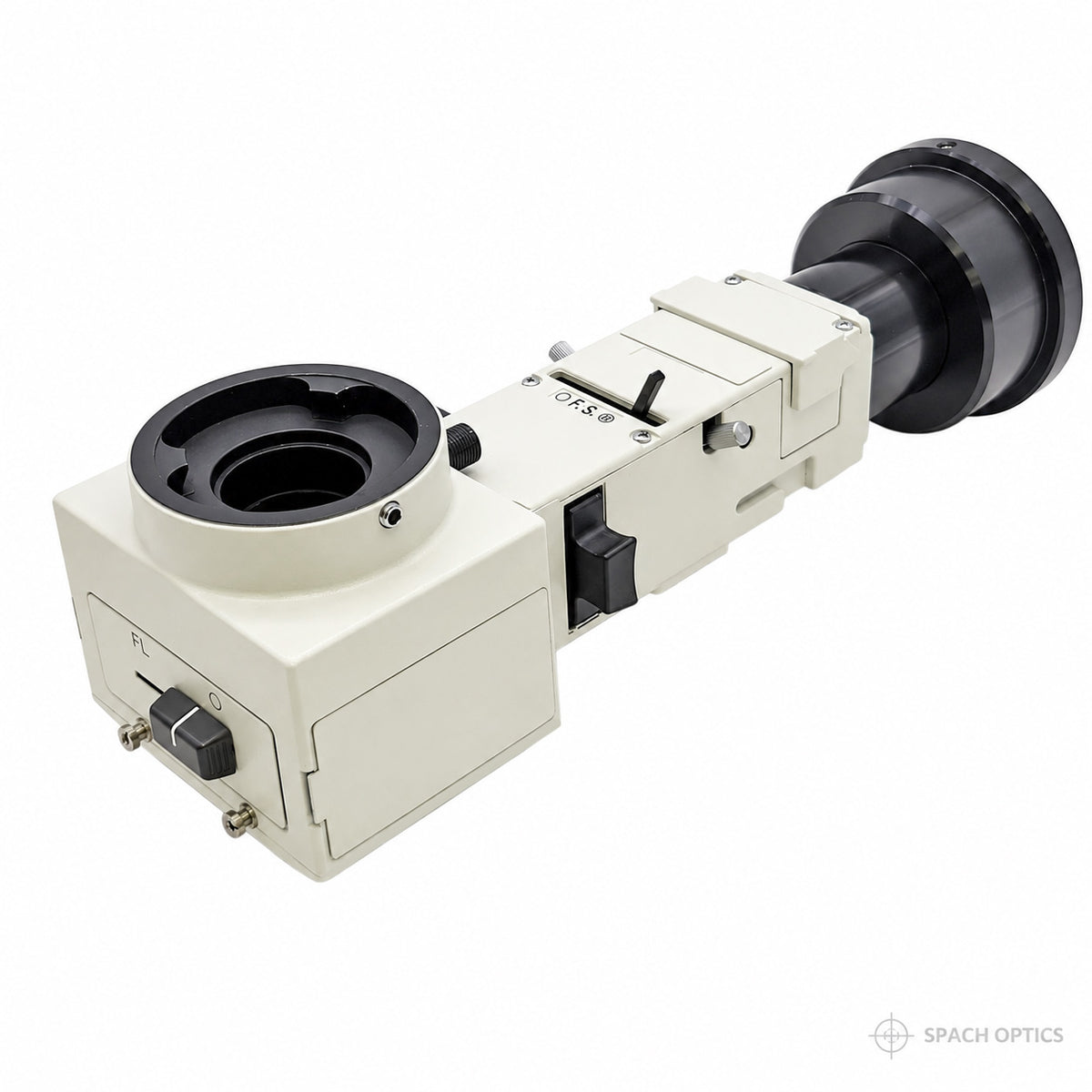

Olympus CX-RFA Fluorescence Illuminator

🔬 Olympus CX-RFA vertical fluorescence illuminator for CX series upright microscopes
⚡ 2-position filter cube turret — holds two fluorescence filter cubes for rapid manual channel switching
🎯 Epi-fluorescence (reflected light) design — excitation light delivered through the objective for maximum specimen illumination efficiency

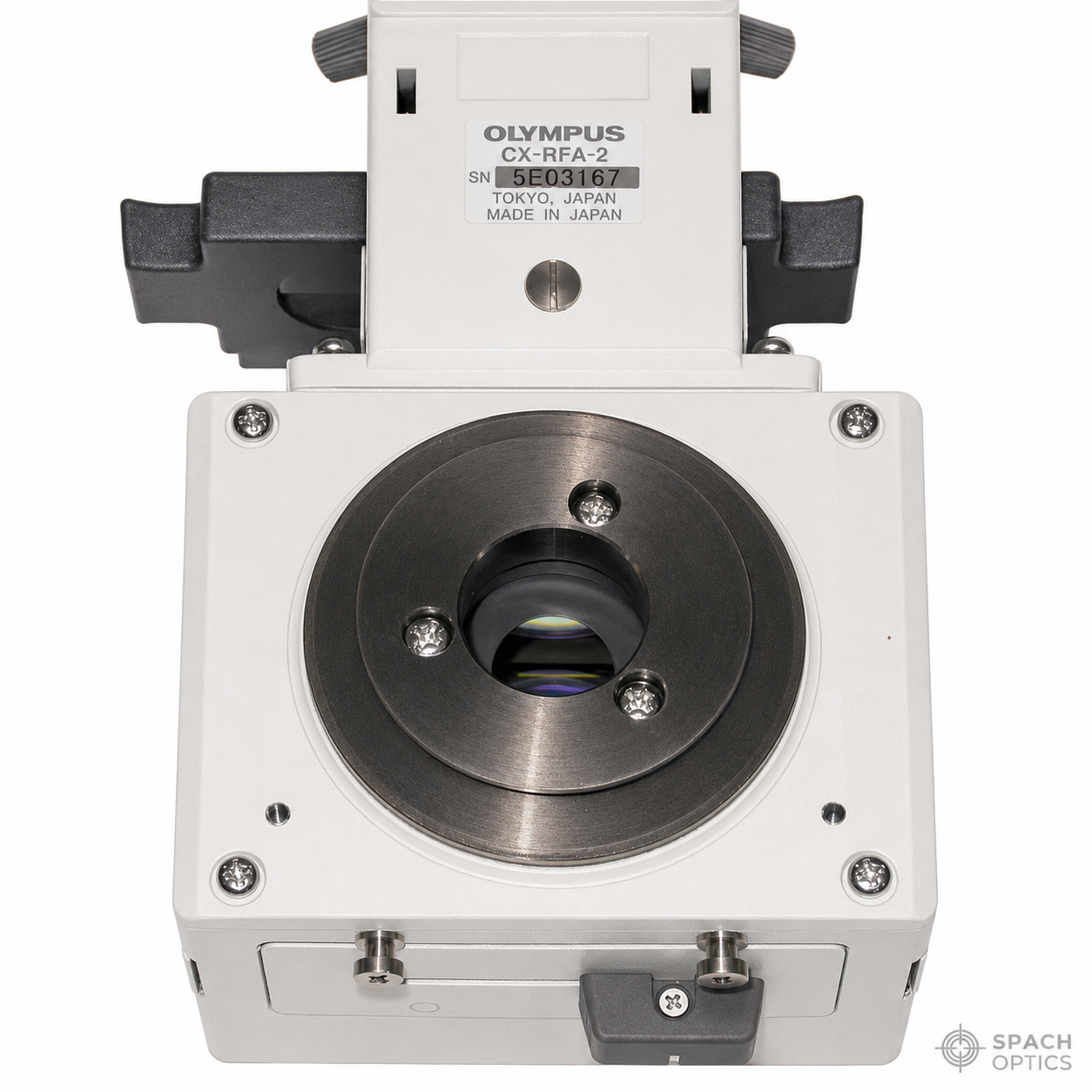

🏭 Made in Japan by Olympus — guaranteed OEM fit and optical performance on CX series platforms
✅ SKU CX-RFA — new / open box condition, significant savings vs. list price of $2,990

🔧 Product Description

The Olympus CX-RFA is a vertical epi-fluorescence illuminator for Olympus CX series upright microscopes, adding fluorescence imaging capability to CX30, CX31, CX33, CX40, CX41, and CX43 platforms. It uses epi-fluorescence (reflected light fluorescence) illumination — excitation light from the lamp source is directed down through the objective onto the specimen, and the resulting fluorescence emission is collected back through the same objective and routed to the eyepieces or camera. This epi-illumination configuration maximizes excitation efficiency and minimizes background by using the objective itself as both the condenser and the collection lens. The CX-RFA features a 2-position filter cube turret that holds two fluorescence filter cubes simultaneously, enabling rapid manual switching between two fluorescence channels — for example, DAPI and FITC, or FITC and TRITC — without removing or exchanging cubes between observations. Compatible with the full CX series range including CX30, CX31, CX33, CX40, CX41, and CX43. This unit is in new / open box condition at a significant discount from the list price.

🔎 Typical Applications

• Fluorescence microscopy on CX series — adding epi-fluorescence capability to CX30, CX31, CX33, CX40, CX41, or CX43 upright microscopes

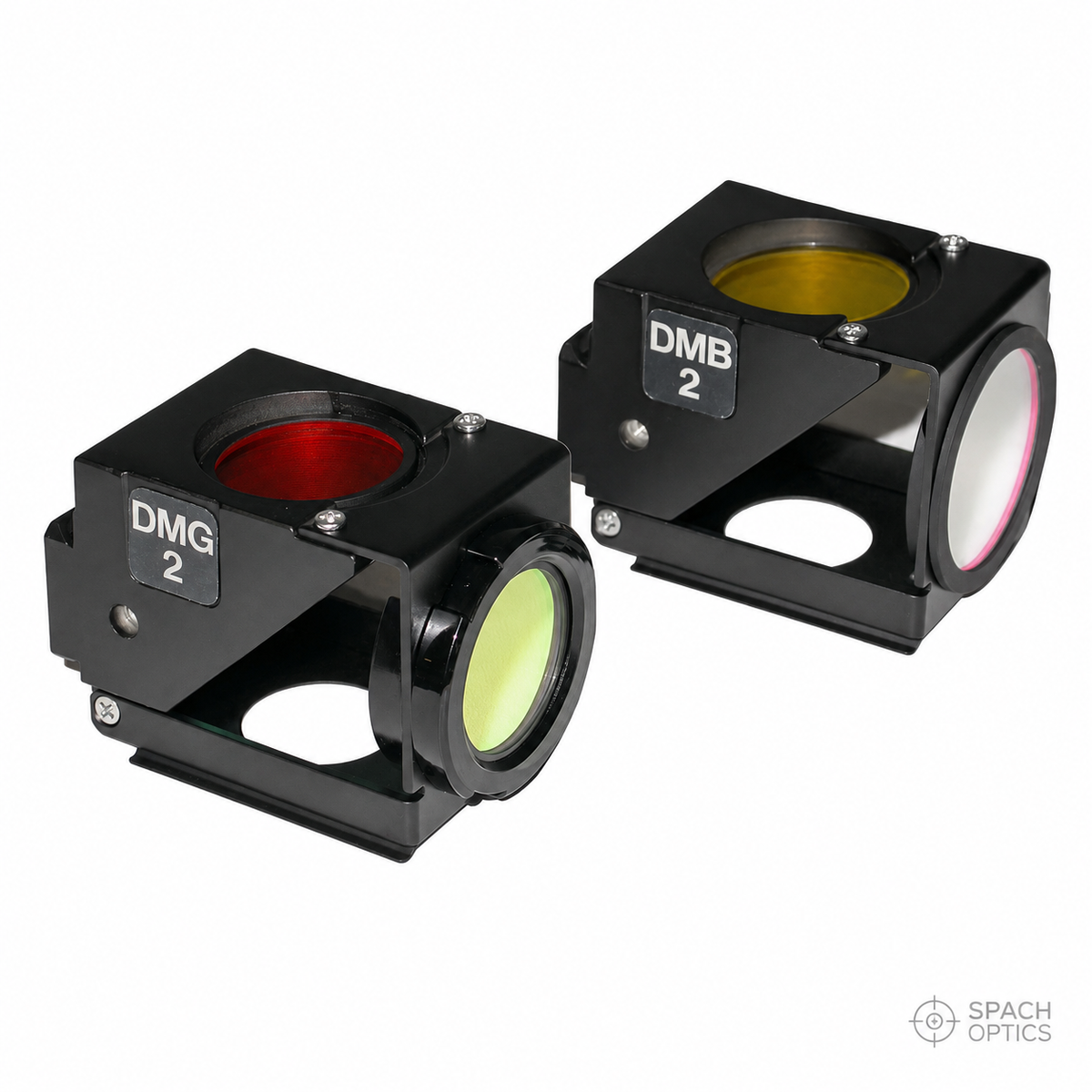

• Two-channel fluorescence — simultaneous loading of two filter cubes (e.g. DAPI + FITC, or FITC + TRITC) for rapid channel switching
• Immunofluorescence — multi-label fluorescence observation of antibody-tagged targets in fixed tissue and cell samples
• Clinical and diagnostic fluorescence — FISH, immunofluorescence, and fluorescent stain observation on CX series platforms
• Upgrade path for existing CX series microscopes lacking fluorescence capability

📊 Key Specifications

Universities and research institutions are welcome to purchase using an official purchase order. Please contact us to arrange PO-based ordering.
