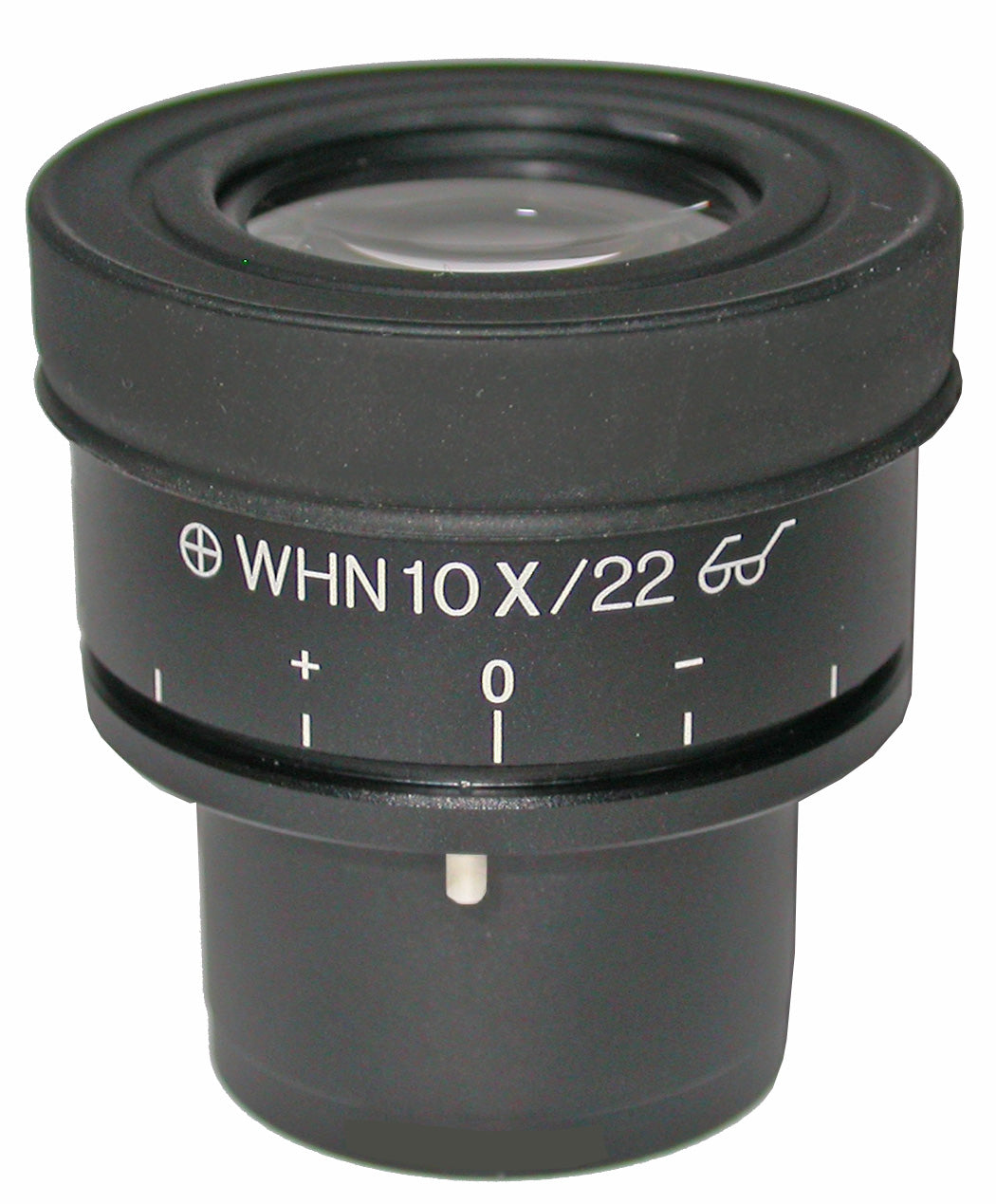

Olympus CROSSWHN10X 10x Eyepiece with Crosshair and Locking Pin

🔬 Olympus CROSSWHN10X 10x Eyepiece with Crosshair and Locking Pin

Achieve precise sample orientation, measurement alignment, and angular positioning with the Olympus CROSSWHN10X — a 10x widefield eyepiece featuring an integrated crosshair reticle and locking pin. Designed specifically for Olympus polarized light microscopes, this eyepiece ensures accurate crystal orientation and specimen alignment in demanding polarimetry and mineralogy applications.

• 🔹 10x Magnification — standard widefield eyepiece magnification for Olympus BX polarized light systems
• 🔹 Integrated Crosshair Reticle — precise crosshair for sample orientation and angular measurement
• 🔹 Locking Pin — secures crosshair orientation for repeatable, accurate polarimetry measurements
• 🔹 Compatible with BX41P, BX43P, BX51P, BX53P — fits Olympus polarized light microscope series
• 🔹 Condition: New — factory fresh, full Olympus warranty

🔧 Product Description

The Olympus CROSSWHN10X is a 10x widefield eyepiece with a precision crosshair reticle and locking pin, engineered for use with Olympus BX Series polarized light microscopes. The crosshair reticle is essential for aligning specimens to the optical axis during polarimetry, mineralogy, and crystallography work — enabling accurate extinction angle measurements and crystal orientation analysis.

The locking pin mechanism allows the crosshair to be fixed at a precise rotational position, ensuring consistent and repeatable measurements across multiple samples or sessions. This is particularly critical in geological thin section analysis, pharmaceutical crystallography, and materials science applications where angular precision directly impacts data quality.

As a factory-new Olympus component, the CROSSWHN10X integrates seamlessly into the BX41P, BX43P, BX51P, and BX53P optical systems without optical compromise or vignetting.

🔎 Typical Applications

• Polarized light microscopy and polarimetry
• Geological thin section and mineralogy analysis
• Pharmaceutical and chemical crystallography
• Materials science birefringence measurement
• Crystal orientation and extinction angle determination

📊 Key Specifications

University and institutional purchase orders accepted. Please contact us for a formal quote or net terms application.
