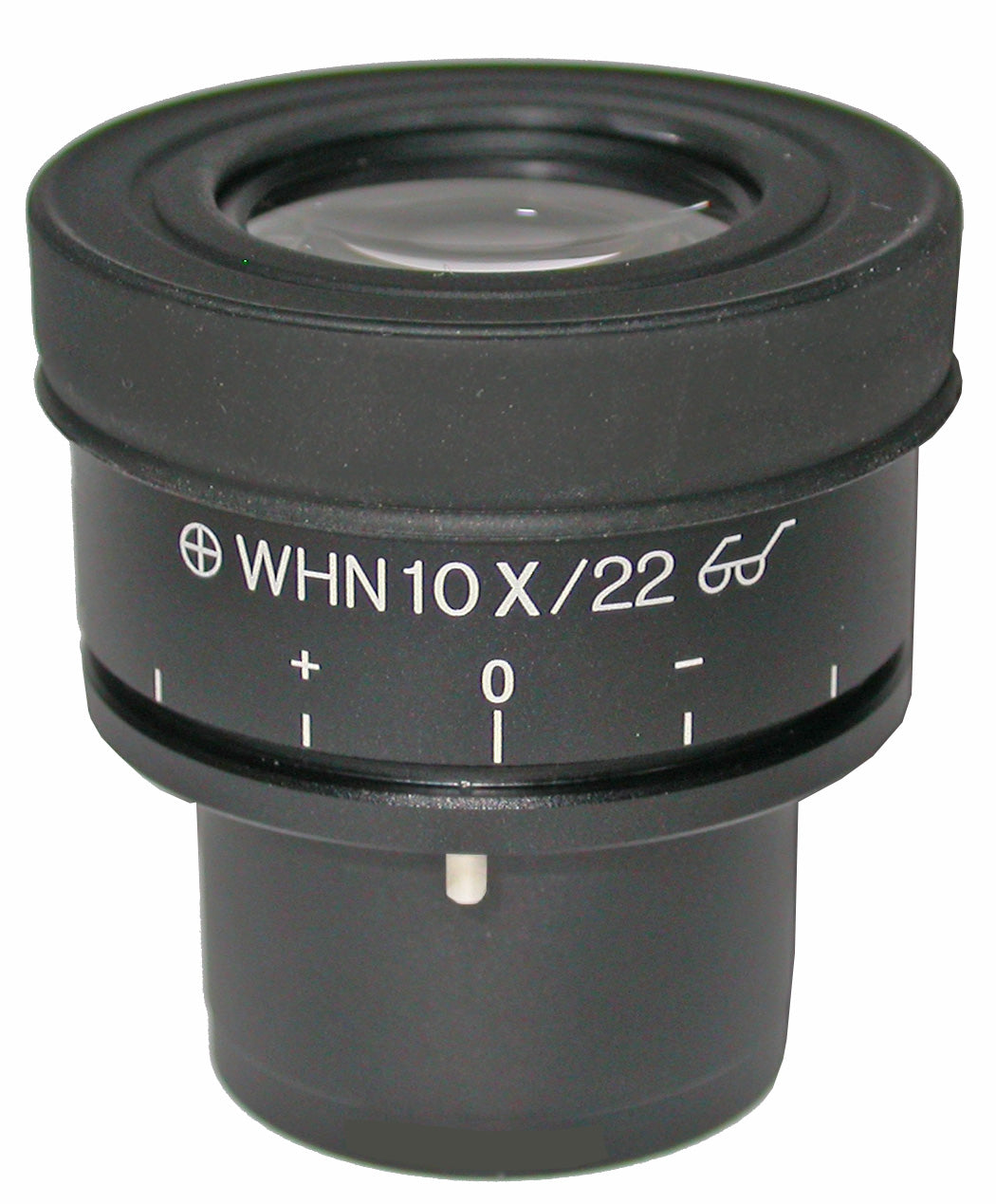

Olympus CROSSWHN10X 10x Eyepiece with Crosshair and Locking Pin

In stock

SKU: N4257800

$560.00
Achieve precise sample orientation, measurement alignment, and angular positioning with the Olympus CROSSWHN10X — a 10x widefield eyepiece featuring an integrated crosshair reticle and locking pin. Designed specifically for Olympus polarized light microscopes, this eyepiece ensures accurate crystal orientation and specimen alignment in demanding polarimetry and mineralogy applications.

KEY FEATURES

  • 10x Magnification — standard widefield eyepiece magnification for Olympus BX polarized light systems
  • Integrated Crosshair Reticle — precise crosshair for sample orientation and angular measurement
  • Locking Pin — secures crosshair orientation for repeatable, accurate polarimetry measurements
  • Compatible with BX41P, BX43P, BX51P, BX53P — fits Olympus polarized light microscope series
  • Condition: New — factory fresh, full Olympus warranty
Request a Quote
Backed by Spach Optics Warranty

Secure Packaging & Reliable Delivery

People-Powered Support

Product Overview

The Olympus CROSSWHN10X is a 10x widefield eyepiece with a precision crosshair reticle and locking pin, engineered for use with Olympus BX Series polarized light microscopes. The crosshair reticle is essential for aligning specimens to the optical axis during polarimetry, mineralogy, and crystallography work — enabling accurate extinction angle measurements and crystal orientation analysis.

The locking pin mechanism allows the crosshair to be fixed at a precise rotational position, ensuring consistent and repeatable measurements across multiple samples or sessions. This is particularly critical in geological thin section analysis, pharmaceutical crystallography, and materials science applications where angular precision directly impacts data quality.

As a factory-new Olympus component, the CROSSWHN10X integrates seamlessly into the BX41P, BX43P, BX51P, and BX53P optical systems without optical compromise or vignetting.

Technical Specifications

Model Olympus CROSSWHN10X
SKU / Part Number N4257800
Product Number 2-U1026
Magnification 10x
Reticle Crosshair
Locking Pin Yes
Compatible Microscopes Olympus BX41P, BX43P, BX51P, BX53P
Country of Origin Japan
Condition New

Microscope Compatibility

Typical Applications

Polarized light microscopy and polarimetry
Geological thin section and mineralogy analysis
Pharmaceutical and chemical crystallography
Materials science birefringence measurement
Crystal orientation and extinction angle determination
