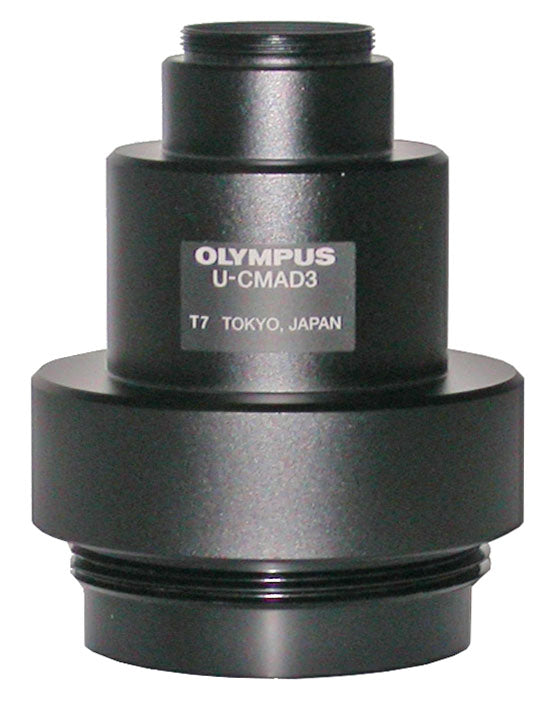

Olympus C-Mount Adapter - U-CMAD3

C-mount camera adapter for BX and IX2 series microscopes — ideal for digital camera integration, documentation, and imaging applications with Olympus research microscope systems.

• 📷 C-Mount Interface — Standard C-mount thread for universal camera compatibility.
• 🔬 BX/IX2 Compatibility — Designed specifically for Olympus BX and IX2 series microscope systems.
• ⚙️ Direct Mounting — Connects C-mount cameras directly to microscope camera ports.
• 🎯 Precision Alignment — Ensures proper optical alignment between microscope and camera.
• 📦 Compact Design — Space-efficient adapter for streamlined camera integration.

🔧 Product Description

The Olympus U-CMAD3 C-Mount Adapter is a precision mechanical component designed to connect C-mount cameras to Olympus BX and IX2 series microscope systems. This adapter provides the essential interface between the microscope camera port and C-mount cameras, enabling digital imaging, documentation, and advanced microscopy applications with scientific and industrial cameras.

The standard C-mount interface provides universal compatibility with C-mount cameras including scientific cameras, industrial cameras, and consumer cameras with C-mount adapters. The C-mount thread (1 inch-32 TPI) is the industry standard for microscopy cameras, ensuring secure mechanical connection and proper optical alignment between the microscope and camera.

Designed specifically for Olympus BX and IX2 series microscope systems, the U-CMAD3 adapter ensures proper mechanical fit and optical alignment with these research-grade microscope platforms. The BX series includes upright research microscopes for biological and materials science applications, while the IX2 series comprises inverted microscopes for cell culture and live cell imaging. This adapter enables camera integration on both platforms.

Direct mounting capability allows C-mount cameras to connect directly to the microscope camera port without requiring additional optical components. This streamlined design is ideal for applications where camera couplers with magnification are not needed, or when used in conjunction with tube lenses that already provide the appropriate optical magnification and field coverage.

Precision alignment is ensured through careful mechanical design and manufacturing tolerances. The adapter maintains proper optical axis alignment between the microscope and camera sensor, which is essential for image quality, uniform illumination, and accurate documentation. Proper alignment prevents vignetting, ensures the camera sensor is perpendicular to the optical axis, and maintains the correct back focal distance.

The compact design provides space-efficient camera integration without adding unnecessary length to the optical path. This is particularly valuable in space-constrained setups, multi-camera configurations, or when using the microscope with environmental chambers, incubators, or other accessories that require compact instrumentation.

Precision Japanese manufacturing ensures reliable mechanical performance and long-term stability. The robust construction provides secure camera mounting in demanding research and production environments where digital imaging and documentation are essential components of the microscopy workflow.

🔎 Typical Applications

• C-mount camera integration on BX and IX2 microscopes
• Digital imaging and documentation
• Scientific and industrial camera mounting
• Live cell imaging and time-lapse microscopy
• Fluorescence imaging and advanced microscopy
• Materials analysis and quality control imaging

📊 Key Specifications

💼 University Purchase Orders Accepted

Thank you for viewing! Please contact us with any questions about this camera adapter or your specific microscopy imaging requirements.
