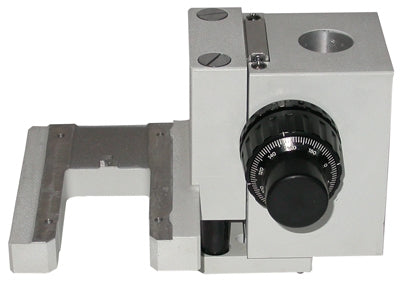

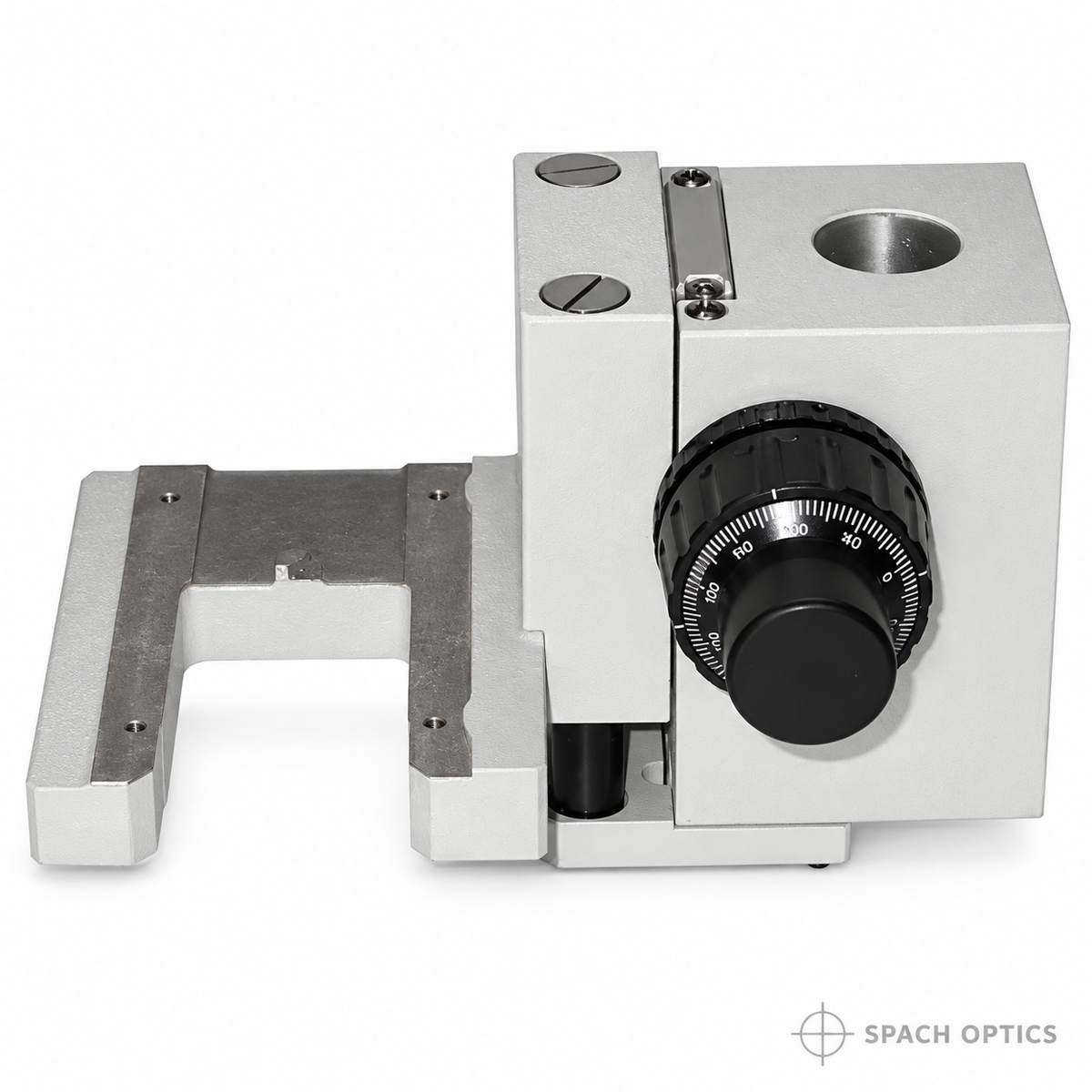

Olympus BXFM-F Focusing Module with BXFM-ILH & BXFM-ILHSPU

🔬 Olympus BXFM-F focusing module kit — includes BXFM-ILH illuminator mount and BXFM-ILHSPU counter spring, for BX2 series reflected light vertical illuminators
⚡ Complete three-component kit — BXFM-F focusing module, BXFM-ILH mount, and BXFM-ILHSPU counter spring included
🎯 32mm post hole — compatible with standard 32mm optical post and mounting hardware
🏭 Olympus OEM components — guaranteed fit and performance with BX2 series reflected light systems
✅ SKU BXFM-F — new condition

🔧 Product Description

The Olympus BXFM-F is a focusing module designed for use with the Olympus BX2 series reflected light vertical illuminator. This listing includes the complete three-component assembly: the BXFM-F focusing module itself, the BXFM-ILH illuminator mount, and the BXFM-ILHSPU counter spring. The focusing module provides a motorized or manual focusing mechanism for the illuminator assembly, allowing precise axial positioning of the illuminator relative to the specimen — critical for maintaining optimal illumination alignment and focus in reflected light configurations. The BXFM-ILH mount interfaces the focusing module with the illuminator, while the BXFM-ILHSPU counter spring provides the mechanical counterbalance necessary for smooth, controlled vertical movement of the assembly. The 32mm post hole accommodates standard optical post mounting hardware for integration into custom optical setups or existing BX2 reflected light configurations. Built to Olympus factory specifications, the BXFM-F kit ensures precise mechanical alignment and reliable performance in demanding reflected light applications.

🔎 Typical Applications

• BX2 series reflected light microscopy — precise illuminator focusing for metallography, semiconductor, and materials inspection
• Custom optical system integration — 32mm post hole enables mounting in bespoke reflected light setups
• Replacement or upgrade of existing BXFM focusing module assemblies on BX2 series systems
• Industrial and research reflected light applications requiring controlled illuminator axial positioning
• OEM and system integrator configurations incorporating Olympus BX2 reflected light components

📊 Key Specifications
