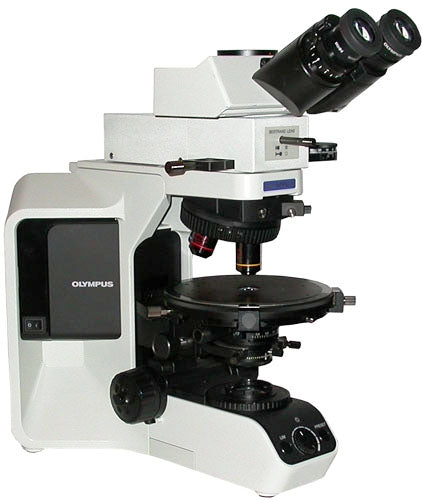

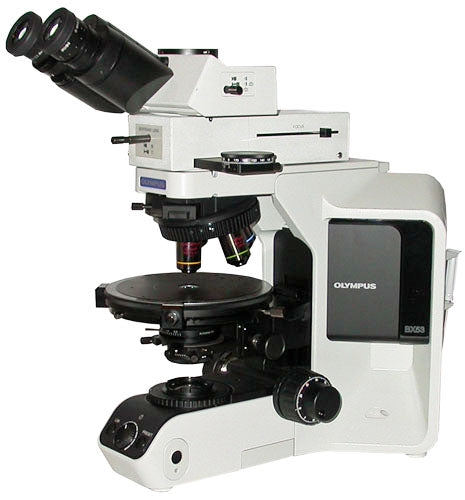

Olympus BX53-P Polarized Light Microscope

The Olympus BX53-P represents the pinnacle of Olympus's polarizing microscope lineup, delivering superb performance through a combination of UIS2 infinity-corrected optics and a purpose-built polarized light optical design. This fully loaded system is configured with every major accessory required for advanced polarized light research — from routine orthoscopic observation to demanding conoscopic analysis. The U-LHLEDC100 high-intensity LED lamphouse provides stable, consistent illumination with exceptional longevity and no warm-up time. Three strain-free POL objectives — 10x, 20x, and 40x — deliver flat-field, artifact-free imaging across the full magnification range. Also includes 10x Central Stop, Dispersion Staining Objective. The U-SRP rotating ball-bearing stage with 3-point centering and 1° graduation enables precise extinction angle measurement and crystal orientation analysis. The U-CPA conoscopic intermediate piece allows direct observation of interference figures for optical axis determination and crystal system identification. The U-POC strain-free condenser with 360° rotatable polarizer and swing-out top lens supports both orthoscopic and conoscopic modes. The U-TAD compensator adapter with U-TP530 first-order red gypsum plate enables interference color and retardation measurement. The U-AN360P rotatable, lockable analyzer slider and U-FMP attachable mechanical stage with XY controls complete this comprehensive system. WHN 10x widefield eyepieces with a crosshair reticle and scale in the right eyepiece support precise measurement and alignment. The U-TR30-2 trinocular head with selectable light path ratios supports simultaneous observation and camera documentation.
