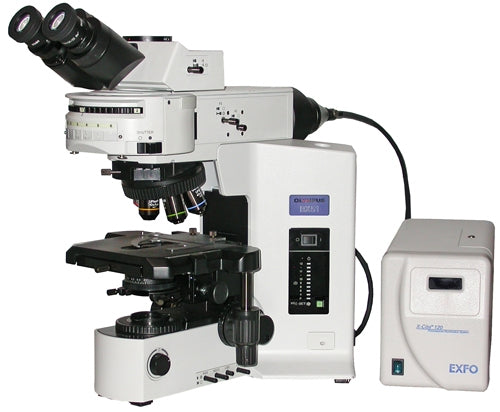

Olympus BX51 Fluorescence Microscope
SKU: BX51-FLUORESCENCE
2-Year Warranty
Full coverage
Expert Support
Technical help
Complete professional fluorescence microscope system with EXFO X-Cite 120 illumination, 5-objective set, and advanced imaging capabilities for research and clinical applications.
- 🔬 Olympus BX51 Platform — Industry-standard upright research microscope with infinity-corrected UIS2 optical system.
- 💡 EXFO X-Cite 120 Fluorescence System — High-intensity 120W metal halide illumination for multi-color fluorescence imaging.
- 🎯 Complete 5-Objective Set — Plan 4× through UPlanFL 100× oil immersion objectives for versatile magnification range.
- 📷 3-Position Trinocular Head — Flexible viewing configurations: 100% eyepieces, 100% camera, or split beam.
- 🌟 6-Position Fluorescence Turret — BX-URA2 illuminator with rotatable front for rapid filter cube switching.
🔧 System Description
The Olympus BX51 Fluorescence Microscope is a complete professional imaging system designed for advanced biological research, clinical diagnostics, and multi-color fluorescence applications. This turnkey system combines Olympus's renowned BX51 upright microscope platform with high-performance fluorescence illumination, a comprehensive objective set, and advanced imaging capabilities—ready for immediate deployment in research laboratories, clinical facilities, and educational institutions.
The Olympus BX51 represents the gold standard in upright research microscopy, featuring the UIS2 (Universal Infinity System) optical design that delivers exceptional image quality, flat-field performance, and chromatic correction across the visible spectrum. The infinity-corrected optical path enables integration of fluorescence illuminators, DIC optics, polarization accessories, and camera systems without introducing optical aberrations.
The EXFO X-Cite 120 fluorescence illumination system provides high-intensity 120-watt metal halide illumination optimized for multi-color fluorescence imaging. The X-Cite 120 delivers broad-spectrum output from UV through visible wavelengths, enabling excitation of all common fluorophores including DAPI, FITC, GFP, TRITC, Texas Red, Cy5, and others. The metal halide lamp provides consistent, stable illumination with excellent color rendering and minimal intensity fluctuation—critical for quantitative fluorescence measurements and time-lapse imaging.
The BX-URA2 fluorescence illuminator features a 6-position filter cube turret with rotatable front, enabling rapid switching between fluorescence channels without disturbing the specimen. The rotatable front design allows the illuminator to be positioned for optimal ergonomics and workflow. The 6-position turret accommodates multiple filter sets for multi-color imaging applications.
The 3-position trinocular head provides exceptional flexibility for visual observation and digital imaging:
- 100% Eyepieces — All light directed to eyepieces for visual observation
- 100% Camera — All light directed to camera port for maximum imaging sensitivity
- Split Beam — Light divided between eyepieces and camera for simultaneous viewing and imaging
The complete 5-objective set provides comprehensive magnification coverage:
- Plan 4× — Low-magnification survey and specimen location
- UPlanFL 10× — General-purpose observation and fluorescence imaging
- UPlanFL 20× — Medium-magnification cellular imaging
- UPlanFL 40× — High-resolution cellular and subcellular imaging
- UPlanFL 100× Oil Immersion — Maximum resolution for fine cellular details and chromosome analysis
The 100-watt quartz halogen lamphouse provides bright, even transmitted light illumination for brightfield, phase contrast, and DIC imaging. The Abbe-type condenser delivers proper Köhler illumination for optimal image quality and resolution.
The 6-position nosepiece with analyzer slot accommodates the complete objective set plus one additional position, with an integrated analyzer slot for polarization microscopy applications. The right-handed mechanical X-Y stage with slider holder provides precise specimen positioning and smooth, ergonomic operation.
🔎 Typical Applications
- Multi-color fluorescence imaging and immunofluorescence
- Cell biology and molecular biology research
- Clinical diagnostics and pathology
- FISH (Fluorescence In Situ Hybridization)
- Live-cell fluorescence imaging
- Neuroscience and tissue imaging
- Chromosome analysis and cytogenetics
- Educational and training laboratories
📦 Complete System Includes
| Component | Description |
|---|---|
| Microscope Body | Olympus BX51 upright research microscope |
| Observation Head | 3-position trinocular head (100% eyes / 100% camera / split beam) |
| Eyepieces | 10× widefield eyepieces (pair) |
| Objectives | Plan 4×, UPlanFL 10×, UPlanFL 20×, UPlanFL 40×, UPlanFL 100× Oil |
| Fluorescence Illuminator | BX-URA2 with rotatable front, 6-position filter cube turret |
| Fluorescence Light Source | EXFO X-Cite 120 (120W metal halide) |
| Transmitted Light | 100W quartz halogen lamphouse |
| Nosepiece | 6-position with analyzer slot |
| Condenser | Abbe-type condenser |
| Stage | Right-handed mechanical X-Y stage with slider holder |
| Accessories | Power cord, dust cover, instruction manual |
University purchase orders accepted. Contact us for volume pricing and institutional procurement options.
