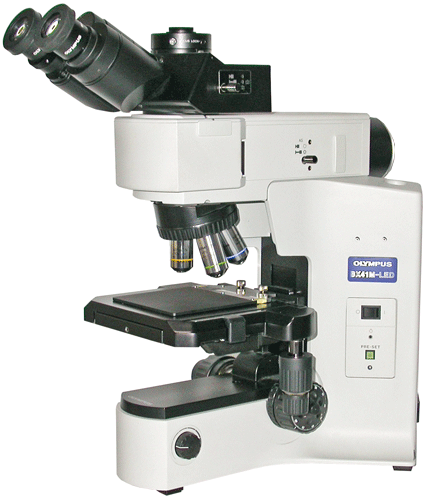

Olympus BX41M LED Reflected Light Microscope

The Olympus BX41M LED Reflected Light Microscope is a professional-grade metallurgical microscope engineered for demanding materials analysis, quality control, and industrial inspection workflows. This complete system combines Olympus's proven BX series optical platform with modern LED illumination technology, delivering exceptional image quality, energy efficiency, and long-term reliability for metallography, semiconductor inspection, and materials science applications.

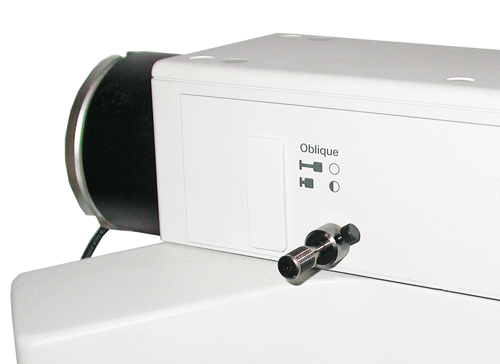

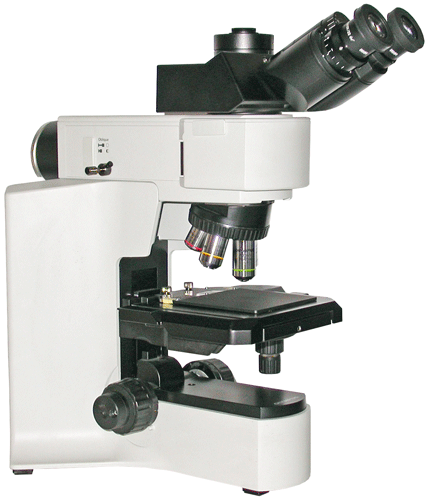

At the heart of the system is the BX41M reflected light microscope body, designed specifically for opaque specimen observation. The integrated LED illumination provides bright, uniform reflected light with minimal heat generation, protecting heat-sensitive samples and maintaining a comfortable working environment during extended observation sessions. The oblique illumination capability enhances surface topography visualization, revealing fine details in polished metallographic specimens, fracture surfaces, and microstructural features.

The system includes a trinocular observation head with high-quality 10× widefield eyepieces, providing a comfortable viewing experience with excellent eye relief and field coverage. The third port accommodates a 0.35× C-mount camera adapter, enabling simultaneous visual observation and digital imaging for documentation, measurement, and analysis workflows. This configuration is ideal for laboratories requiring both real-time observation and image capture capabilities.

Four MPlan objectives (5×, 10×, 20×, and 50×) are mounted on a precision 5-position nosepiece, providing magnification flexibility from low-power survey work through high-magnification detail examination. The MPlan series objectives are optimized for reflected light applications, delivering flat-field correction and excellent contrast across the entire field of view — essential for accurate microstructural analysis and defect detection.

The right-handed mechanical X-Y stage features coaxial controls for smooth, precise specimen positioning, with a stage finger to secure samples during observation. This ergonomic design supports efficient navigation across large specimens and facilitates systematic examination protocols common in metallographic analysis and failure investigation.
