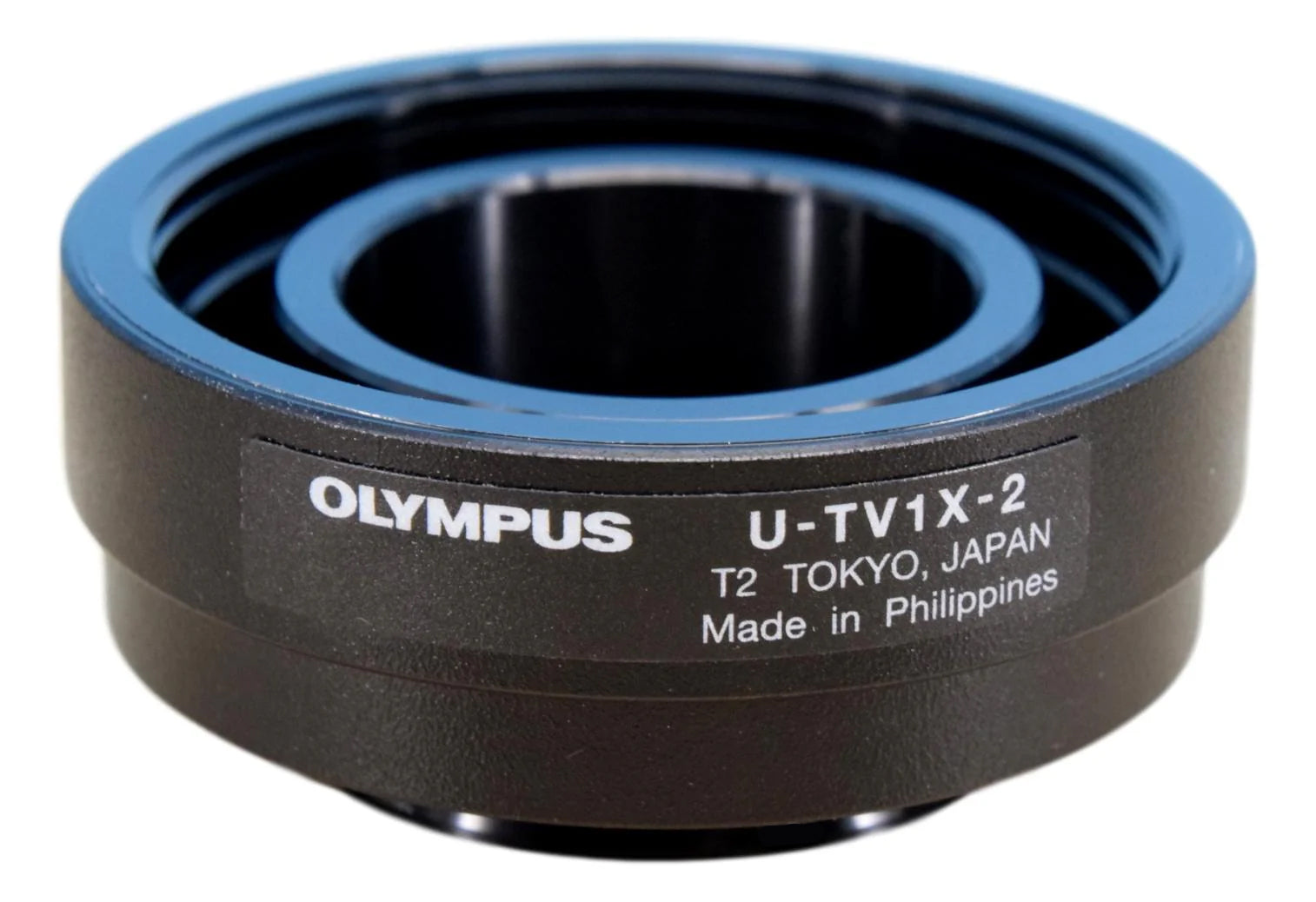

Olympus 1X Camera Coupler - U-TV1X

1× camera coupler for true-to-eyepiece magnification imaging — ideal for digital documentation, photomicrography, and applications requiring accurate field of view reproduction with Olympus microscope systems.

• 📷 1× Magnification — No magnification change, providing true-to-eyepiece field of view on camera.
• 🎯 Maximum Field Coverage — Captures the largest possible field of view for your camera sensor.
• 🔧 C-Mount Interface — Standard C-mount thread for universal camera compatibility.
• ⚙️ Olympus Compatibility — Designed for seamless integration with Olympus microscope systems.
• 🎯 Precision Optics — High-quality optical design maintains image quality and resolution.

🔧 Product Description

The Olympus U-TV1X 1× Camera Coupler is a precision optical adapter designed to connect C-mount cameras to Olympus microscope systems without magnification change. The 1× magnification provides true-to-eyepiece field of view reproduction, capturing the maximum possible field coverage on your camera sensor while maintaining the optical quality and resolution of the microscope system.

The 1× magnification factor means there is no optical magnification or reduction between the microscope and the camera. This provides the largest possible field of view for your camera sensor, making it ideal for applications requiring maximum field coverage such as large specimen documentation, tissue section imaging, materials analysis, and any workflow where capturing the widest possible area is advantageous.

True-to-eyepiece field of view reproduction ensures that what you see through the eyepieces is accurately represented on the camera. This is valuable for documentation, teaching applications, and situations where you want the camera image to match the visual observation as closely as possible. The 1× magnification also maximizes light transmission to the camera sensor, providing bright images and enabling shorter exposure times.

The standard C-mount interface provides universal compatibility with C-mount cameras including scientific cameras, industrial cameras, and consumer cameras with C-mount adapters. The C-mount thread (1 inch-32 TPI) is the industry standard for microscopy cameras, ensuring secure mechanical connection and proper optical alignment between the coupler and camera.

Precision optical design maintains the image quality and resolution of the microscope system. High-quality optical elements minimize aberrations and ensure that the camera captures the full optical performance of the microscope objectives. This is essential for quantitative imaging, accurate documentation, and applications requiring the highest image fidelity.

Designed for seamless integration with Olympus microscope systems, the U-TV1X camera coupler connects to standard Olympus camera ports and tube lens assemblies. The robust mechanical construction ensures reliable performance and long-term stability in demanding research and production environments where digital imaging and documentation are essential.

🔎 Typical Applications

• Maximum field of view digital imaging and documentation
• Large specimen and tissue section imaging
• Photomicrography and scientific documentation
• Teaching and demonstration applications
• Materials analysis and quality control imaging
• C-mount camera integration

📊 Key Specifications
